WSA-5TR-V2

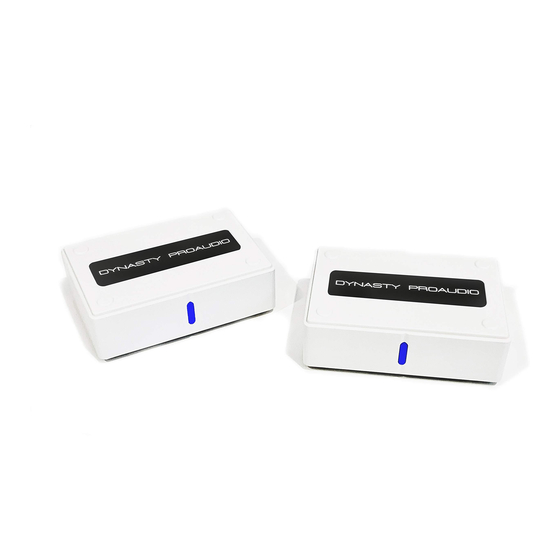

The WSA-5TR-V2 (Version 2) wireless subwoofer speaker kit provides premium-
quality audio for stereo audio applications operating in the 5.2 / 5.8GHz bands.
Simply connect the transmitter module to you're A/V processor and the receiver
to your powered/active subwoofer speakers. No more running cable around
doors or hiding under carpet to connect your subwoofer speaker to the receiver.
* Lossless Audio - 5.2 & 5.8GHz selectable digital wireless with an advanced channel
selection for near lossless audio, provides excellent transmission stability
* Up to 100 ft (30M) operation distance between transmitter and receiver (line of sight)
* The WSA-5TR transmitter provides standard line level output which will drive most
audio equipment including home theater AV Receivers/Surround Processor, Stereo
Amplifiers, Audio Pre-Amplifier, Mixing Consoles, or even the DJ Mixer/Controller.
1. Transmitter (a)
2. Receiver (b)
3. 5V 1A USB Power Adapter (c) x 2
4. Stereo RCA Audio cable (d) x 2
5. Stereo Mini Jack to RCA Y cable x 1
6. USB cable (e) x 2
7. Owner's Manual
5.2G / 5.8G WIRELESS SUBWOOFER SPEAKER Kit
Advertisement
Table of Contents
Related Manuals for Dynasty ProAudio WSA-5TR-V2
Summary of Contents for Dynasty ProAudio WSA-5TR-V2
- Page 1 WSA-5TR-V2 5.2G / 5.8G WIRELESS SUBWOOFER SPEAKER Kit The WSA-5TR-V2 (Version 2) wireless subwoofer speaker kit provides premium- quality audio for stereo audio applications operating in the 5.2 / 5.8GHz bands. Simply connect the transmitter module to you're A/V processor and the receiver to your powered/active subwoofer speakers.
- Page 2 Set up the Transmitter and Receiver Transmitter– with an AV Receiver/Surround Processor, or 2 Channels Pre-Amp have a line level subwoofer output labeled Subwoofer Pre Out, Sub Out, SW Out..etc Application 1: WSA-5TR with an 5.1/7.1 AV Receiver or Surround Processor Step 1 - Use the supplied (d) RCA cable to connect the Subwoofer Pre-Out or LFE output of your AV receiver and to the (a) WSA-5TR wireless transmitter Audio Input.
- Page 3 transmitter, and plug other end into the (c) 5V 1A power supply, and plug into an120V AC outlet Receiver - with Powered/Active Subwoofer, or Powered/Active Surround Speakers Receiver - with Powered/Active Subwoofer, or Powered/Active Speakers Application 1: WSA-5TR Wireless Receiver with a Powered/Active Subwoofer Place the subwoofer at its intended location (refer to your subwoofer owner’s manual), and using the supplied (d) RCA cable to connect the (b) WSA-5TR wireless receiver audio output to your subwoofer audio input.
- Page 4 Application 2: WSA-5TR with a Powered/Active Speaker (Or the passive loudspeakers with an additional amplifier connected) Option A: connecting with 2 channels stereo amplifier + Passive speaker - Connecting with 2 channels stereo amplifier + Passive speaker - Use the supplied (d) stereo RCA cable to connect the (b) WSA-5TR wireless receiver L + R output to your 2 channels stereo amplifier audio RCA line In, the amplifier should be connected with passive speaker via conventional speaker wiring...
- Page 5 LEDs should be solid Blue in 5.8G mode as default when powered on The WSA-5TR-V2 (Version 2) use the latest 5.8G wireless technology connection with 62 channels auto selection from RF channel 5727~5848, which are not easily disturbed by 2.4G (the frequency band of bluetooth and WIFI) and have excellent...
- Page 6 TroubleShoot Problem Solution - Make sure that all the cables are connected correctly - Make sure that the audio transmitter (TX) is connecting to the SUB subwoofer output - Make sure that the audio receiver (RX) is connecting to your active/powered subwoofer speaker (or powered speakers) - Check to see if the LEDs illuminate on the front of both the wireless transmitter and No Sound...
- Page 7 Technical Specifications Digital, uncompressed, bidirectional, adaptive FHSS 5.8G Mode - RF channel 5727~5848 5.2G Mode - RF channel 5157~ 5243 24bit, 48KHz Max 100 ft - line of sight (best result) Max. 50 ft - through walls and ceilings (not recommend) 10Hz ~ 20 kHz >80dB Audio Max Output Level: 2V...
- Page 8 www.dynastyproaudio.com...
