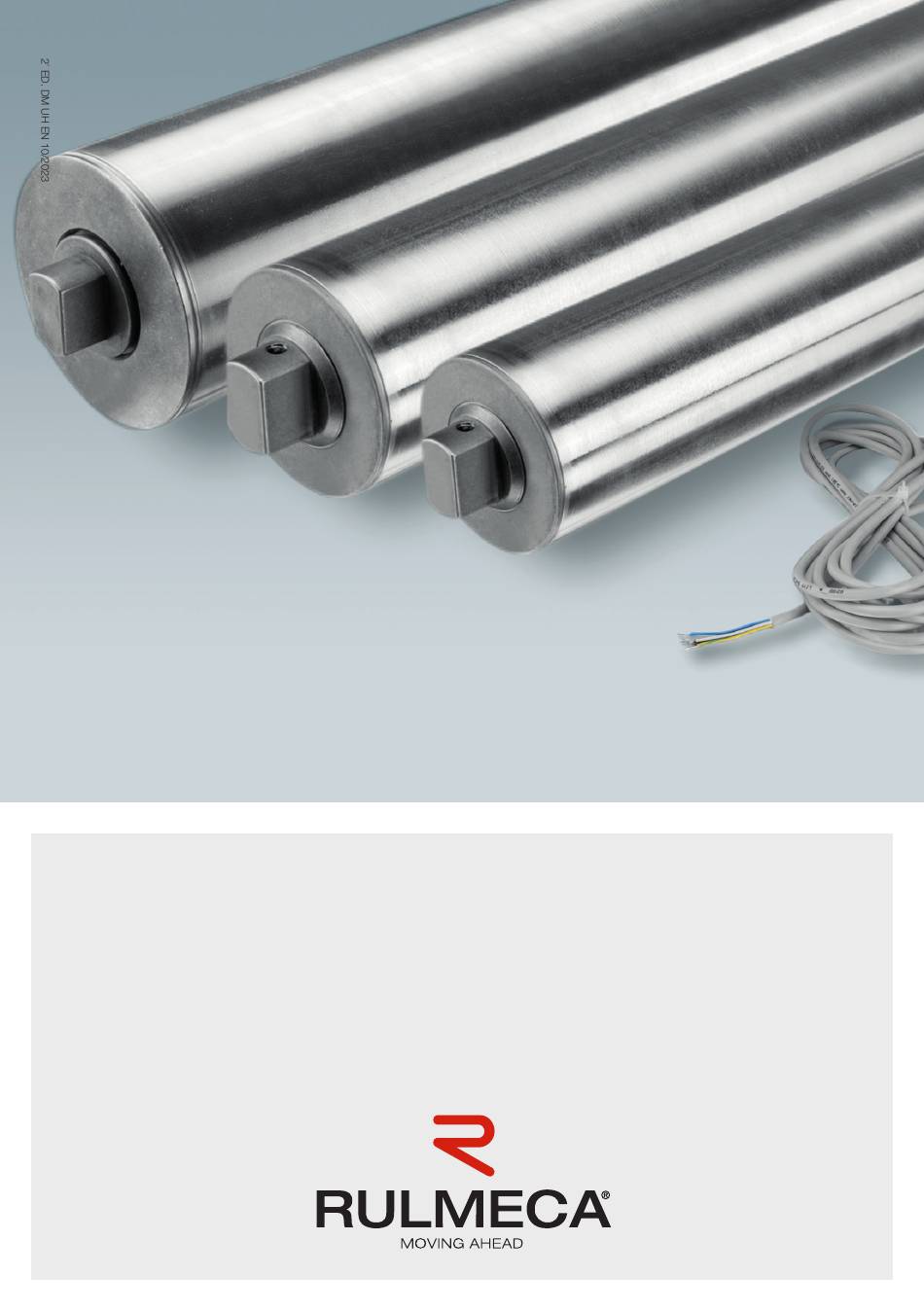

- Page 1 DRUM MOTOR INSTALLATION MANUAL 80LP-138LP...
- Page 3 Mounting Brackets Product description Motor Thermal Protection Technical Data Lagging Belt Capacitors 80LP-138LP Wiring Diagrams Wiring diagrams for Drum Motor Appendix cable connection 80LP - 138LP Troubleshooting Assembly and Installation Warranty Terms List of abbreviations Assembly Installation Declaration Installation Commissioning Operation...
-
Page 4: General Information On The Manual
GENERAL INFORMATION ON THE MANUAL This document refers to Drum Motor types 80LP CAUTION! The manufacturer assumes no – 138LP. responsibility for malfunctions or damage resulting from non-compliance with these All information can be accessed in electronic form instructions. at https://www.rulmeca.com/ >... - Page 5 SAFETY The Drum Motor has been designed in accordance with the current state of the art and is delivered in a safe and reliable condition. However, hazards may arise during use. Read and follow all operating Hazardous voltage! Installation instructions carefully to prevent possible and maintenance work must only be injury or death! carried out when the unit is disconnected...
-
Page 6: Product Description
Thermal protection Bimetallic Contact Ambient temperature, 3-phase motor +5 to +40 °C +10 to +40 °C Ambient temperature, 1-phase motor Cycle times < 0.5 m/s: no load/full load: 50/52 dB(A) Cable Standard cable, length: 1.9 m DRUM MOTOR INSTALLATION MANUAL 80LP-138LP... - Page 7 DRUM MOTOR 80LP Mechanical data TECHNICAL DATA DRUM MOTOR 80LP – 3-PHASE – 50 HZ – STANDARD RANGE [kW] (rpm) [m/s] [m/s] [min [Nm] [mm] 90.13 0.06 0.07 31.6 75.95 0.07 0.08 26.6 63.98 0.09 0.10 22.4 53.87 0.10 0.12 18.9...
- Page 8 DRUM MOTOR 80LP TECHNICAL DATA DRUM MOTOR 80LP – 1-PHASE – 50 HZ – STANDARD RANGE [kW] (rpm) [m/s] [m/s] [min [Nm] [mm] 90.13 0.06 0.07 31.6 75.95 0.07 0.08 26.6 63.98 0.08 0.09 22.4 53.87 0.10 0.11 18.9 50.30 0.11...
- Page 9 DRUM MOTOR 113LP TECHNICAL DATA DRUM MOTOR 113LP – 3-PHASE – 50 HZ – STANDARD RANGE [kW] (rpm) [m/s] [m/s] [min [Nm] [mm] 316.81 0.02 0.03 110.2 1.940 185.08 0.04 0.04 64.4 1.134 141.38 0.05 0.06 49.2 1212 107.95 0.07 0.08 37.6 74.27...
- Page 10 28.36 0.26 0.29 90.4 1.592 1214 24.56 0.31 0.34 78.3 1.379 0.55 2.9/1.7 16.83 0.45 0.49 53.7 12.64 0.59 0.66 40.3 10.88 0.69 0.77 34.7 1500 9.44 0.79 0.88 30.1 1212 8.09 0.93 1.03 25.8 DRUM MOTOR INSTALLATION MANUAL 80LP-138LP...
- Page 11 DRUM MOTOR 138LP TECHNICAL DATA DRUM MOTOR 138LP – 3-PHASE – 50 HZ – STANDARD RANGE [kW] (rpm) [m/s] [m/s] [min [Nm] [mm] 316.81 0.03 0.03 110.2 1.636 185.08 0.05 0.05 64.4 141.38 0.06 0.07 49.2 107.95 0.08 0.09 37.6 74.27 0.12 0.13...
- Page 12 24.56 0.36 0.40 78.3 1.163 1212 21.25 0.42 0.46 67.8 1.006 0.55 2.9/1.7 16.83 0.53 0.59 53.7 12.64 0.70 0.78 40.3 10.88 0.82 0.91 34.7 1500 9.44 0.94 1.05 30.1 1212 8.09 1.10 1.22 25.8 DRUM MOTOR INSTALLATION MANUAL 80LP-138LP...
- Page 13 DRUM MOTOR 138LP TECHNICAL DATA DRUM MOTOR 138LP – 1-PHASE – 50 HZ – STANDARD RANGE [kW] (rpm) [m/s] [m/s] [min [Nm] [mm] 185.08 0.05 0.05 96.6 1.434 141.38 0.06 0.07 73.8 1.095 107.95 0.08 0.09 56.3 74.27 0.12 0.13 38.8 56.60 0.16...
- Page 14 0.35 82.2 1.221 1212 24.56 0.36 0.40 71.2 1.057 21.25 0.42 0.46 61.6 16.83 0.53 0.59 48.8 12.64 0.70 0.78 36.6 10.88 0.82 0.91 31.5 1500 9.44 0.94 1.05 27.4 1212 8.09 1.10 1.22 23.5 DRUM MOTOR INSTALLATION MANUAL 80LP-138LP...
- Page 15 Drum Motor Standard Version Straight connector Elbow connector in aluminium 90° cable connector...
- Page 16 Average weights for drum motor & idler type LP range Type RL [mm] all motors 80LP idler 80LP all motors 11,4 113LP idler 113LP all motors 11,4 138LP idler 138LP • Weights are orientative due to different shell executions and motor powers. DRUM MOTOR INSTALLATION MANUAL 80LP-138LP...
- Page 17 80LP-138LP WIRING DIAGRAMS Wiring diagrams for Drum Motor cable connection 80LP - 138LP Colour code bk - black Colours or lead numbers for standard clockwise bn - brown rotation direction. rd - red og - orange TP - Thermal protector T1 & T2...
-
Page 18: Assembly And Installation
• Cable option: Connect the green/yellow wire 2. Switch off the power supply. to the earth conductor for the mains supply. 3. Secure the power supply against accidently being switched on again by others. Symbol identifying the earth connector DRUM MOTOR INSTALLATION MANUAL 80LP-138LP... - Page 19 > In case of ambient temperatures of lower than frame or conveyer frame. -5 °C and higher than +40 °C, please contact 2. Secure the shell against accidental contact. RULMECA. 3. Start the Pulley. Reversing Conveyors • All Drum Motors are reversible.
-
Page 20: Transport And Storage
General Information > Remove the packaging. > Carry out an inspection of the product for transport damage or any missing parts. > Contact RULMECA in the event of any problems. Transport Storage > Keep the motor in a dry and enclosed/covered location, protected from direct sunlight. -
Page 21: Maintenance
MAINTENANCE > Always adapt the system to the latest technical Risk of injury due to improper handling safety standards during/after maintenance work or accidental starting of the motor. or when replacing the Drum Motor. Only qualified and authorized personnel may perform maintenance work. -
Page 22: Replacement Parts And Accessories
Optional hot vulcanized lagging is available for high The maximum permissible belt tension (T1 + T2) is power/high torque/high temperature applications. specified in our catalogue. > Contact the belt supplier if belt/lagging material compatibility may be a problem. DRUM MOTOR INSTALLATION MANUAL 80LP-138LP... - Page 23 > To avoid interference, only install shielded cables during installation/assembly. Capacitors Disposal • Drum Motor types 80LP-138LP: run capacitors The operator is responsible for the disposal of the are not supplied with motor (can be purchased LP drum motor. separately).
-
Page 24: Troubleshooting
Check required specifications and replace drum motor speed ordered Incorrect inverter setting Check and adjust settings according to the drum motor specifications. DRUM MOTOR IS LEAKING OIL Cause Solution Excessive belt tension Send the drum motor back to RULMECA for inspection DRUM MOTOR INSTALLATION MANUAL 80LP-138LP... - Page 25 APPENDIX Warranty Terms List of abbreviations RULMECA grants a manufacturer’s warranty of up to 24 months for the RULMECA product from Nominal mechanical power the date of invoice against defective materials Number of poles and/ or manufacturing faults. The invoice date is...
- Page 26 The relative technical documents according to EC available in accordance with Machinery Machinery Directive 2006/42/EC, Annex VII B are Directive 2006/42/EC Annex II 1 A. available and will be presented to the competent national authorities in digital form on request. DRUM MOTOR INSTALLATION MANUAL 80LP-138LP...
- Page 28 Rulmeca Holding S.p.A Via A. Toscanini 1 - I-24011 Almè (BG) Italy - Tel. 035 430 0111 - export-it@rulmeca.com Please contact your local Rulmeca Company, you will find our contact details in our web site: rulmeca.com...
