Maxim TADANO GR-800XL-1 Manual

Hydraulic rough terrain crane
Hide thumbs

Advertisement

Quick Links

Download this manual
80 Ton Capacity (72.6 Metric Tons)
HYDRAULIC ROUGH TERRAIN CRANE

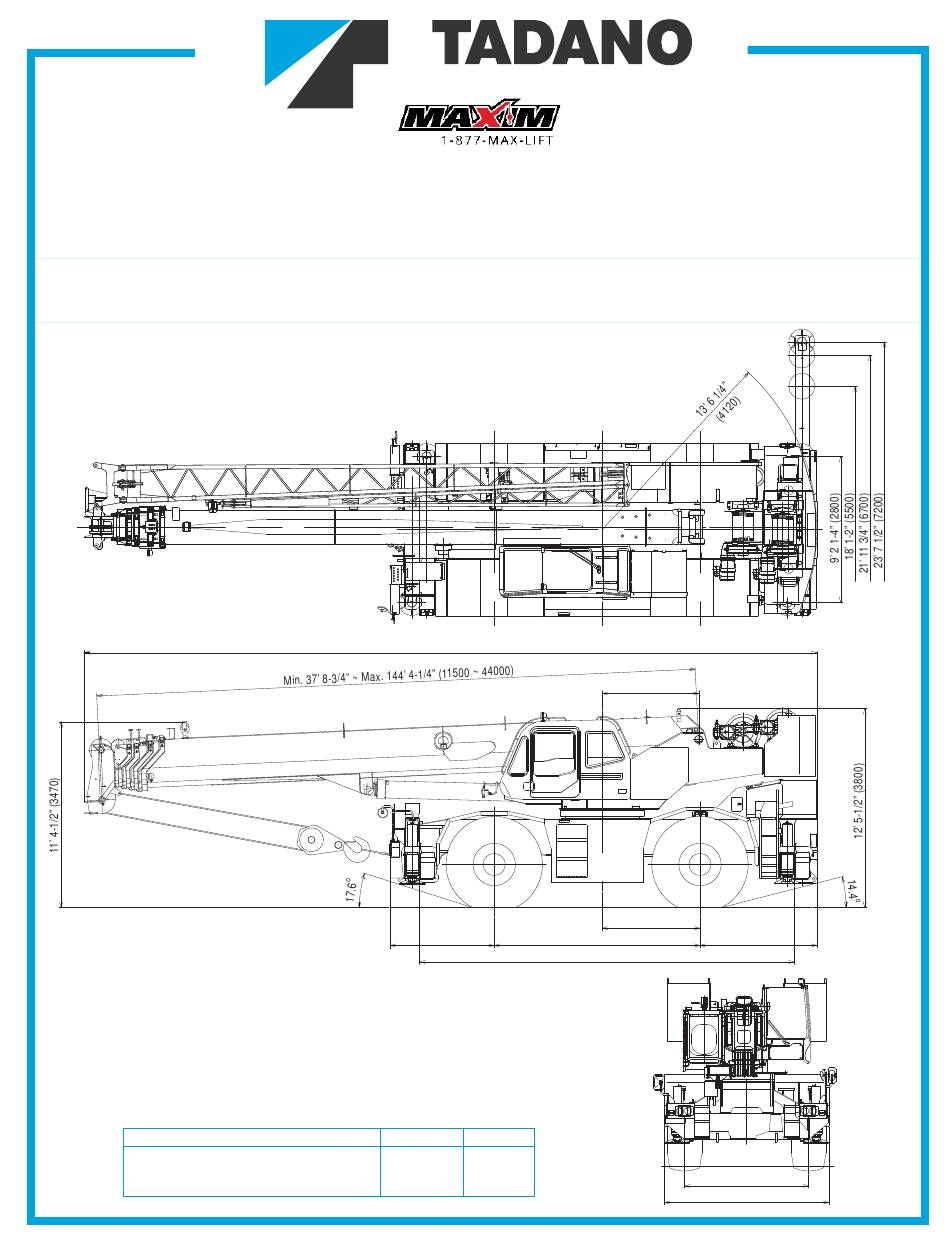

GENERAL DIMENSION
(29.5 - 25 Tires)
Turning radius
4 wheel steer
2 wheel steer
GR-800XL-1
DIMENSION
46' 2-1/8" (14075)
6' 7-3/4" (2025)
Feet
Meters
21' 11-3/4"
6.7
39' 1/2"
11.9
1
6' 7/8" (1850)
6' 1-7/8" (1875)
12' 11-1/2" (3950)
7' 4-3/8" (2245)
23' 7-1/3" (7200)
8' 2-1/2" (2502)
10' 10-1/2" (3315)
Specifications are subject to change without notice

Advertisement

loading
Need help?

Need help?

Do you have a question about the TADANO GR-800XL-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxim TADANO GR-800XL-1

Summary of Contents for Maxim TADANO GR-800XL-1

  • Page 1 GR-800XL-1 80 Ton Capacity (72.6 Metric Tons) HYDRAULIC ROUGH TERRAIN CRANE DIMENSION 46' 2-1/8" (14075) 6’ 7/8” (1850) 6’ 1-7/8” (1875) 6’ 7-3/4” (2025) 12’ 11-1/2” (3950) 7’ 4-3/8” (2245) 23’ 7-1/3” (7200) GENERAL DIMENSION (29.5 - 25 Tires) Feet Meters Turning radius 4 wheel steer...

  • Page 2: Crane Specifications

    CRANE SPECIFICATIONS BOOM WIRE ROPE - Warrington seal wire, extra improved plow steel, Five section full power synchronized telescoping boom, preformed, independent wire rope core, right regular lay. 37.7’~144.4’(11.5m~44.0m), of round hexagonal box construction 3/4”(19mm) 6x37 class with 7 sheaves, 17-5/16”(0.44m) root diameter, at boom head. HOOK BLOCK The synchronization system consists of two telescope cylinders, 6.2 ton (5.6 metric ton) - Weighted hook with swivel and safety...
  • Page 3 Tadano electronic LOAD MOMENT INDICATOR system TADANO AML-L monitors outrigger extended length and (AML-L) including: automatically programs the corresponding "RATED LIFTING Control lever lockout function CAPACITIES" table. Boom angle / boom length / jib offset angle / load Operator's right hand console includes transmission gear radius / rated lifting capacities / actual loads read out selector and sight level bubble.

  • Page 4: Standard Equipment

    STANDARD EQUIPMENT - Five section full power partially synchronized boom - Independently controlled outriggers 37.7'~144.4' (11.5 m~44.0 m) - Four outrigger extension positions - 32.5'~58.1' (9.9 m~17.7 m) bi-fold lattice jib (tilt type) with 3.5 - Self-storing outrigger pads or 45 pinned offsets and self storing pins.
  • Page 5 GR-800XL WORKING RANGE CHART Telescoping Mode I Telescoping Mode II 220' 220' 210' 210' 200' 200' 190' 190' 180' 180' 170' 170' 160' 160' 150' 150' 140' 140' 130' 130' 120' 120' 110' 110' 100' 100' 90' 100' 110' 120' 130' 140' 150'...
  • Page 6 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 7-1/2'' (7.2m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 160,000 75 103,600 78 88,100 78 44,000 125,000 72 103,600 76 88,100 76 44,000 108,000 69 103,600 73...
  • Page 7 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 7-1/2'' (7.2m) SPREAD ROTATION 144.4' (44.0m) Boom + 32.5' (9.9m) Jib 144.4' (44.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 32.7' 9,900 44.5' 8,800 52.7' 8,100 40.6' 5,900...
  • Page 8 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 21' 11-3/4'' (6.7m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 160,000 75 103,600 78 88,100 78 44,000 125,000 72 103,600 76 88,100 76 44,000 108,000 69 103,600 73...
  • Page 9 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 21' 11-3/4'' (6.7m) SPREAD ROTATION 144.4' (44.0m) Boom + 32.5' (9.9m) Jib 144.4' (44.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 32.7' 9,900 44.5' 8,800 52.7' 8,100 40.6' 5,900...
  • Page 10 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 18' 1/2'' (5.5m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 160,000 75 103,600 78 88,100 78 44,000 125,000 72 103,600 76 88,100 76 44,000 108,000 69 103,600 73...
  • Page 11 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID. EXTENDED 18' 1/2'' (5.5m) SPREAD ROTATION 144.4' (44.0m) Boom + 32.5' (9.9m) Jib 144.4' (44.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 32.7' 9,900 44.5' 8,800 52.7' 8,100 40.6' 5,900...
  • Page 12 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MIN. EXTENDED 9' 2-1/4'' (2.8m) SPREAD ROTATION 37.7' 64.4' (19.62m) 91' (27.75m) 117.7' (35.87m) 131' 144.4' (11.5m) (15.56m) (39.93m) (44.0m) 84,100 77,900 76,000 44,000 62,000 58,200 56,800 44,000 42,400 40,000 39,000 43,800 41,700 30,800 25,700...

  • Page 13: Operation

    WARNING AND OPERATING INSTRUCTIONS FOR LIFTING CAPACITIES GENERAL 9. When boom length is between values listed, refer to the 1. RATED LIFTING CAPACITIES apply only to the machine as rated lifting capacities of the next longer and next shorter originally manufactured and normally equipped by TADANO LTD.
  • Page 14 GR-800XL RATED LIFTING CAPACITIES (IN POUNDS) ON RUBBER Stationary Creep OVER FRONT OVER FRONT ROTATION 37.7' 64.4' 37.7' 64.4' 37.7' 64.4' (11.5m) (19.62m) (27.75m) (11.5m) (19.62m) (27.75m) (11.5m) (19.62m) (27.75m) 71,200 49,500 55,200 62,200 41,700 47,800 51,600 29,400 39,200 39,400 35,300 18,000 21,300...
  • Page 15 WARNING AND OPERATING INSTRUCTIONS FOR USING THE LOAD MOMENT INDICATOR (AML-L) 1. When operating crane on outriggers: When a load is lifted in the front position and then swung Set P.T.O. switch to "ON". to the side area, make sure the value of the LOAD Press the outrigger mode select key to register for the MOMENT INDICATOR(AML-L) is below the 360 lifting...
  • Page 16 MEMO TADANO AMERICA CORPORATION TADANO LTD. (INTERNATIONAL DIVISION) 4242 West Greens Rd. 4-12, Kamezawa 2-chome, Sumida-ku, HOUSTON, TEXAS 77066 U.S.A. Tokyo 130-0014, JAPAN PHONE: (281) 869-0030 PHONE: 81-3-3621-7750 FAX: (281) 869-0040 FAX: 81-3-3621-7785 http://www.tadanoamerica.com http://www.tadano.co.jp/indexe.html Form No. GR-800-1-00211/US-14...
