Maxim TADANO GR-150XL Manual

15 ton capacity (13.6 metric tons)
Hide thumbs

Advertisement

Quick Links

Download this manual
HYDRAULIC ROUGH TERRAIN CRANE

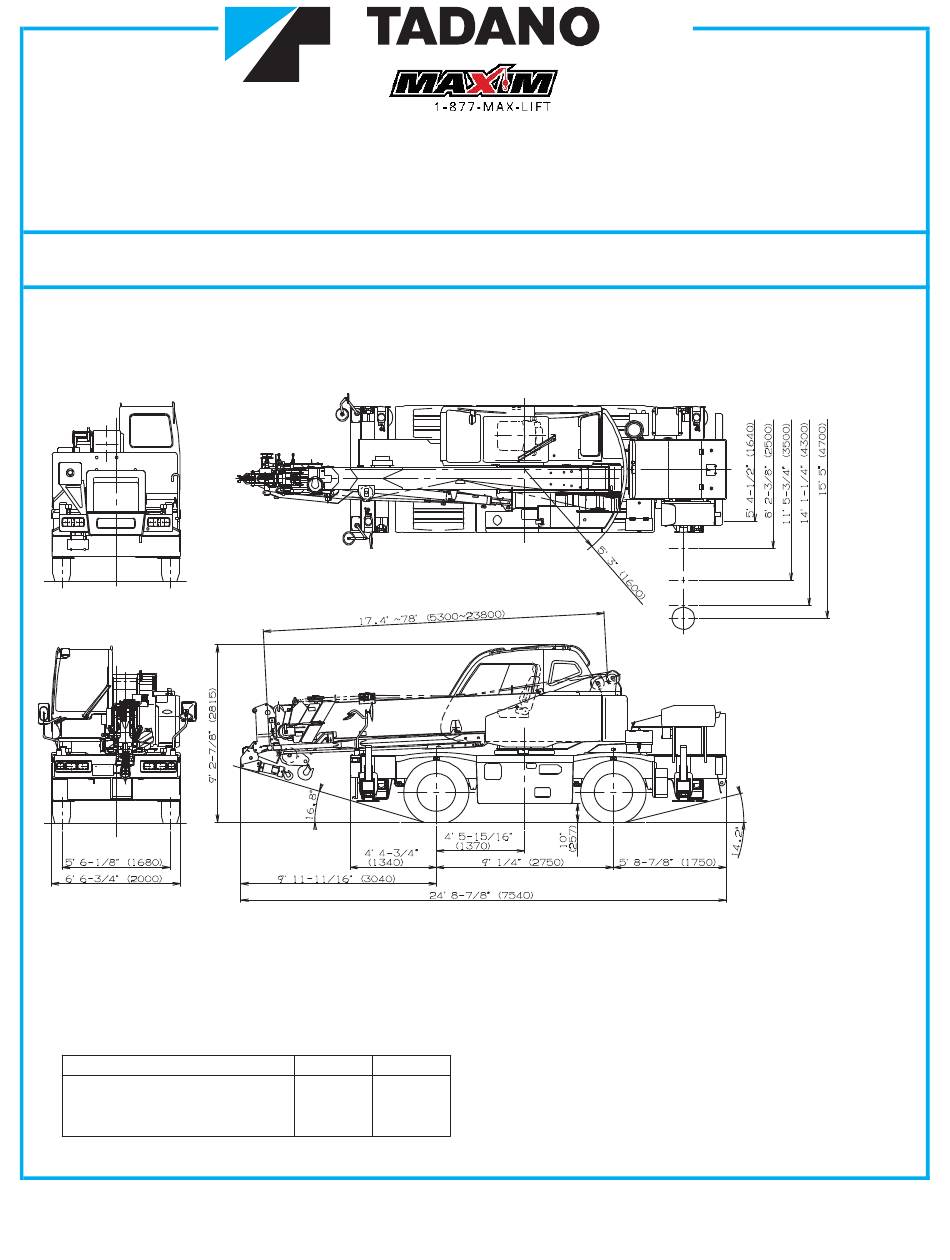

GENERAL DIMENSIONS
(275/80R22.5 Tires)
Turning radius
4 wheel steer
2 wheel steer
GR-150XL
15 Ton Capacity (13.6 Metric Tons)
DIMENSIONS
Feet
Meters
12' 5-5/8"
3.8
21' 3-7/8"
6.5
Specifications are subject to change without notice.
Specifications effective with S/N FD1787 and up.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TADANO GR-150XL and is the answer not in the manual?

Questions and answers

Related Manuals for Maxim TADANO GR-150XL

Summary of Contents for Maxim TADANO GR-150XL

  • Page 1 GR-150XL 15 Ton Capacity (13.6 Metric Tons) HYDRAULIC ROUGH TERRAIN CRANE DIMENSIONS GENERAL DIMENSIONS (275/80R22.5 Tires) Feet Meters Turning radius 12' 5-5/8" 4 wheel steer 21' 3-7/8" 2 wheel steer Specifications are subject to change without notice. Specifications effective with S/N FD1787 and up.

  • Page 2: Crane Specifications

    CRANE SPECIFICATIONS BOOM DRUM - Grooved 10-7/16"(0.265m) root diameter x 9-7/16"(0.239m) Six section full power synchronized telescoping boom, wide. Wire rope: 217' of 7/16"diameter rope (66m of 11.2mm). 17.4'~78' (5.3m~23.8m), of box construction with 4 sheaves, Drum capacity: 486.8' (148.4m) 7 layers. Maximum line pull 9-5/16"...
  • Page 3 Tadano electronic LOAD MOMENT INDICATOR system TADANO AML-C monitors outrigger extended length and (AML-C) including automatically programs the corresponding "RATED LIFTING • • Control lever lockout function with audible and visual CAPACITIES" table. pre-warning • • Boom position indicator Operator's left hand console includes transmission gear selector •...

  • Page 4: Standard Equipment

    STANDARD EQUIPMENT - Six section full power partially synchronized boom - Mitsubishi 4M50-TL turbo charged after 17.4' ~ 78' (5.3 m~23.8 m) cooled engine(172HP) with exhaust brake - Main hoist with grooved drum and 433' of 7/16" cable. - Electronic controlled automatic transmission - Drum rotation indicator (visual type) y torque converter - Anti-Two block device (overwind cutout)
  • Page 5 GR-150XL WORKING RANGE CHART NOTE: Boom and jib geometry shown are for unloaded condition and machine standing level on firm supporting surface. Boom deflection and subsequent radius and boom angle change must be accounted for when applying load to hook.
  • Page 6 GR-150XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 15' 5'' (4.7m) SPREAD ROTATION 17.4' (5.3m) (9.0m) (12.7m) (16.4m) (20.1m) (23.8m) 70.4 30,000 78.9 13,200 66.7 30,000 77.3 13,200 80.9 13,200 62.8 28,800 75.1 13,200 79.5 13,200 54.2 23,800 70.8 13,200 76.7...
  • Page 7 GR-150XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 11' 5-3/4'' (3.5m) SPREAD ROTATION 17.4' (5.3m) (9.0m) (12.7m) (16.4m) (20.1m) (23.8m) 30,000 13,200 70.4 78.9 30,000 13,200 13,200 66.7 77.3 80.9 28,800 13,200 13,200 62.8 75.1 79.5 23,800 13,200 13,200 11,000 54.2...
  • Page 8 GR-150XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MIN EXTENDED 5' 4-1/2'' (1.64m) SPREAD ROTATION 17.4' (5.3m) (9.0m) (12.7m) (16.4m) (20.1m) (23.8m) 17,500 13,200 70.3 78.9 15,300 12,800 12,500 66.6 77.4 80.9 13,250 12,300 12,500 62.5 75.0 79.5 8,650 8,800 8,300 7,500 54.1...
  • Page 9 GR-150XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED15' 5" (4.7m) SPREAD ROTATION ' 8 . Tilt Tilt t l i t l i Tilt Tilt Tilt Tilt 12.6 3,300 16.7 2,650 19.6 2,000 21.5 1,400 13.9 1,850 20.0 1,550 24.7 1,300 27.2 16.1 3,300 20.0 2,650...
  • Page 10 GR-150XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 11' 5-3/4'' (3.5m) SPREAD ROTATION 78' (23.8m) Boom + 11.8' (3.6m) Jib 78' (23.8m) Boom +18' (5.5m) Jib Tilt Tilt Tilt Tilt Tilt Tilt Tilt Tilt 12.6 3,300 16.7 2,650 19.6 2,000 21.5 1,400 13.9 1,850 20.0 1,550 24.7 1,300 27.2 16.1 3,300 20.0 2,650 22.7 2,000 24.6 1,400 80.5...
  • Page 11 WARNING AND OPERATING INSTRUCTIONS FOR LIFTING CAPACITIES GENERAL Load per line should not exceed 4,000 lbs. (1,800kg) for 1. RATED LIFTING CAPACITIES apply only to the machine as main winch and auxiliary winch. originally manufactured and normally equipped by TADANO Check the actual number of parts of line with LOAD MOMENT LTD.
  • Page 12 GR-150XL RATED LIFTING CAPACITIES (IN POUNDS) ON RUBBER STATIONARY Over Front Rotation 17.4' 17.4' (5.3m) (9.0m) (12.7m) (5.3m) (9.0m) (12.7m) 7,900 7,900 6,200 6,200 70.3 79.0 70.3 79.0 7,650 7,650 7,900 6,200 6,200 6,150 62.7 74.9 79.4 62.7 74.9 79.4 6,900 6,900 6,900...
  • Page 13 WARNING AND OPERATING INSTRUCTIONS FOR ON RUBBER LIFTING CAPACITIES 1. Rated lifting capacities on rubber are in pounds and do not Over-front operation shall be performed within two exceed 75 % of tipping loads as determined by SAE J765- degrees in front of chassis. Crane Stability Test Code.
  • Page 14 MEMO...
  • Page 15 MEMO...
  • Page 16 MEMO TADANO AMERICA CORPORATION 4242 WEST GREENS ROAD HOUSTON, TEXAS, 77066 U.S.A. PHONE: (281) 869-0030 FAX: (281) 869-0040 Parts Hotline: (281) 869-0033 Service Hotline: (281) 869-5925 Web site: www.tadanoamerica.com E-mail: sales@tadano-cranes.com Form No. TAC GR-150XL-1-090604...
