Summary of Contents for Stanton S-500

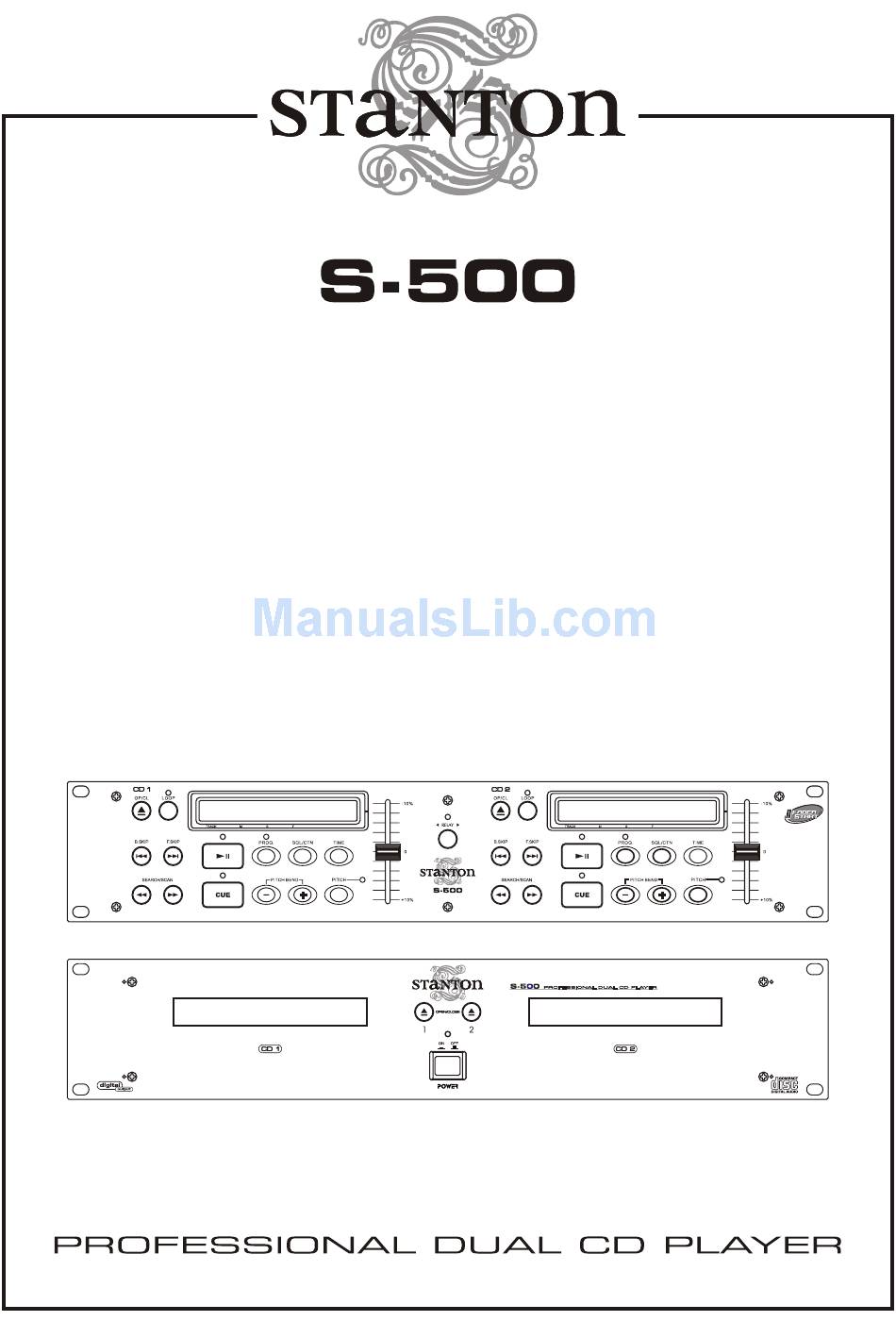

- Page 1 USER MANUAL...
-
Page 2: Important To Safety
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE: This CD player uses the semiconductor laser. To allow you to enjoy music at a stable operation, it is recommended to use this in a room of 5 ℃ 41 ℉ - 35 ℃... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 1. Read Instructions － All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions － The safety and operating instructions should be retained for future reference. 3. Heed Warnings － All warnings on the appliance and in the operating instructions should be adhered to. -
Page 4: Note On Use
NOTE ON USE Allow for sufficient heat dispersion when installed on a rack. Handle the power cord carefully. Hold the plug when unplugging the cord. Keep the set free from moisture, water, and dust. Unplug the power cord when not using the set for long periods of time. Do not obstruct the ventilation holes. - Page 5 MAIN FEATURES CONTROL UNIT 13 14 15 11 (1) OP/CL (2) TIME (Time Button) (3) LCD (Liquid Crystal Display) (4) LOOP (Loop button) (5) PITCH - (Pitch Bend - Button) (6) PITCH +(Pitch Bend + Button) (7) PITCH (Pitch Button) (8) Pitch Slider (9) PLAY/PAUSE (Play/Pause Button)
- Page 6 PREPARATIONS 1. Checking the Contents Check that the carton contains the following items: 1) Main unit 2) Control unit 3) Operating instructions (this booklet) 4) Pair of RCA pin cord. 5) Control cords (1 meter) 2. Installing the Unit Mount the unit onto your console or rack with 19" EIA rack rails. CAUTION: l The player will work normally when the main unit is mounted with the front panel at within 15 degrees of the...
-
Page 7: Names And Functions
NAMES AND FUNCTIONS Main Unit Front Panel (1) POWER (Power ON/OFF Switch) When the POWER switch is pressed, the power turns (2) Disc Holder Place the discs in the holder. Press the OPEN/CLOSE button to open and close the disc holder. (3) OP/CL Press it to open and close the disc holder. - Page 8 OPERATIONS 1. Opening and Closing the Disc Holder Turn the unit power on. Press the OPEN/CLOSE button to open the disc holder. OPEN/CLOSE buttons are provided on both the main unit and control unit. The disc holder cannot be opened during playback to prevent playback from being interrupted if the OPEN/CLOSE button is pressed accidentally.
- Page 9 OPERATIONS 6. Pausing Press the PLAY/PAUSE button to switch between the play and pause. The pause indicator lights when the pause mode is set. Figure 6-1 show the relationship between the play and pause. ŒThe player has completed the cue or pause operation and is waiting for the play start command. •When the PLAY/PAUSE button is pressed, playback starts and the cue point is stored in the memory.
- Page 10 OPERATIONS 8. Frame search Frame search is a function for monitoring the sound at a certain section of the disc and manually changing the position. Searching is used to set play start points with precision. Press the while in pause or cue mode to begin searching. The sound for one revolution of the disc is output repeatedly.
-
Page 11: Program Play
14. Faderstart With the S-500, you have the possibility to start the respective CD-player direcatly from the mixer. Make sure that the Control socket is connected with the respective socket on the mixer. Additionally, the Audio out socket have to be connected with the Line-input sockets of your mixer. -
Page 12: Before Switching Off The Power
BEFORE SWITCHING OFF THE POWER When you have finished using the CD player, before switching off the power, be sure that the disc holder had been closed with the OPEN/CLOSE button. CAUTION: Do not forcibly close the disc holder when the power is off.
