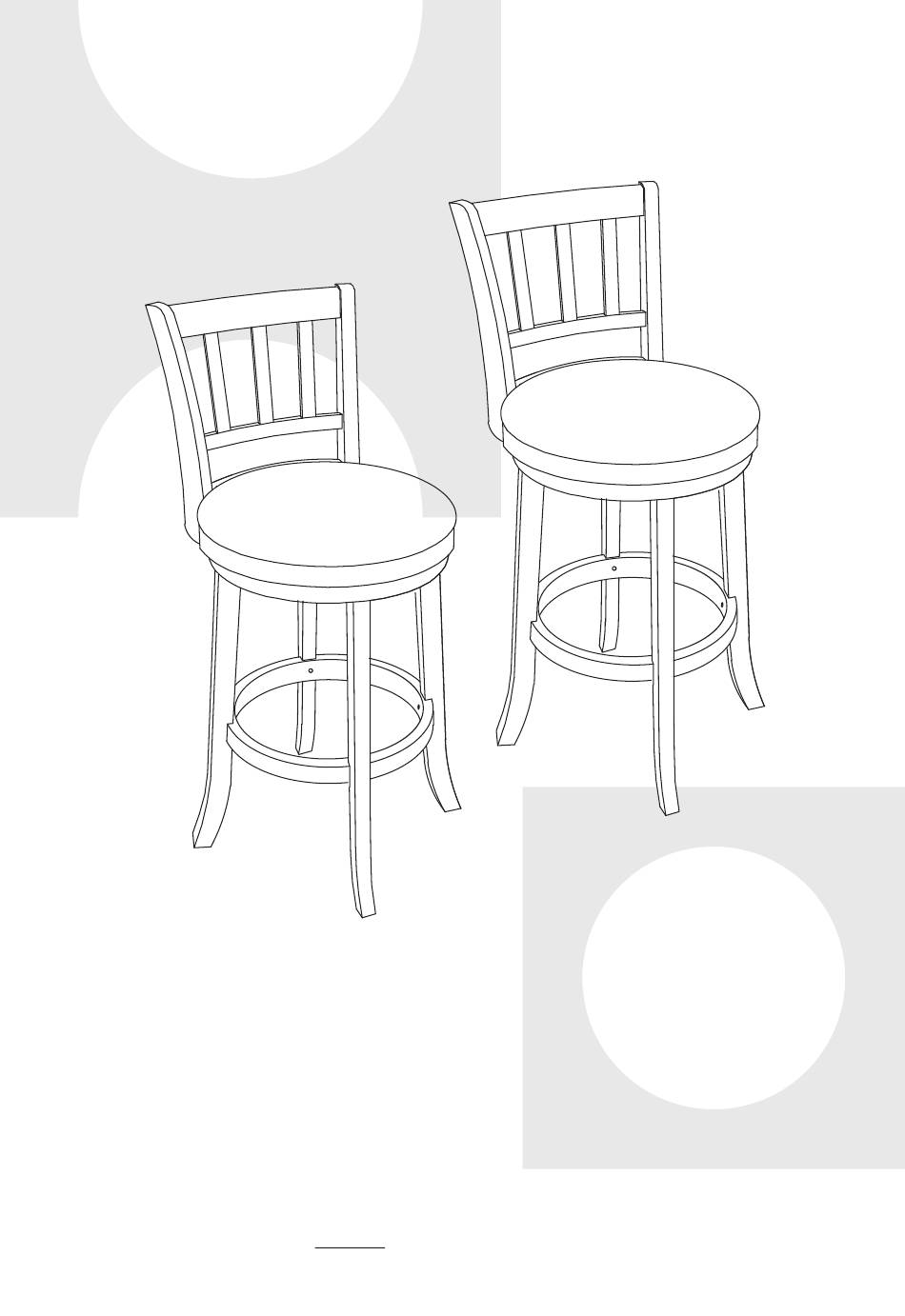

- Page 1 Bar Stool Tabouret de Bar HW61764-24/HW61764-29 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 3 COMPONENT LIST/LISTE DES COMPOSANTS Backrest Chalr Leg Footrest /Dossier De Chaise /Pieds De Chaise /Repose-pieds A x2 B x8 C x2 Apron Cushion with Apron /Tablier /Coussin Avec Tablier D x2 E x2 HARDWARE LIST/LISTE DU MATÉRIEL M6x25mm M6x40mm M6x13mm JCBC Screw JCBC Screw Spring Washer...
- Page 4 EN: Attach each leg (B) to footrest (C). Insert each individual set of hardware as per picture shown. Do not tight up any hardware completely. FR : Fixez chaque jambe (B) au repose-pieds (C). Insérez chaque ensemble de quincaillerie comme indiqué sur l'image. Ne serrez pas complètement la quincaillerie.
- Page 5 EN: Insert 6 sets hardware first, then tight up part (A) with part (E) together after alignment is done. FR : Insérez d'abord 6 jeux de quincaillerie, puis serrez la partie (A) avec la partie (E) ensemble une fois l'alignement terminé.
- Page 6 COMPLETED ASSEMBLY /Assemblage Fini...
- Page 7 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 8 USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com FRA:cs.f r @costway.com...
