Summary of Contents for Costway HW61830

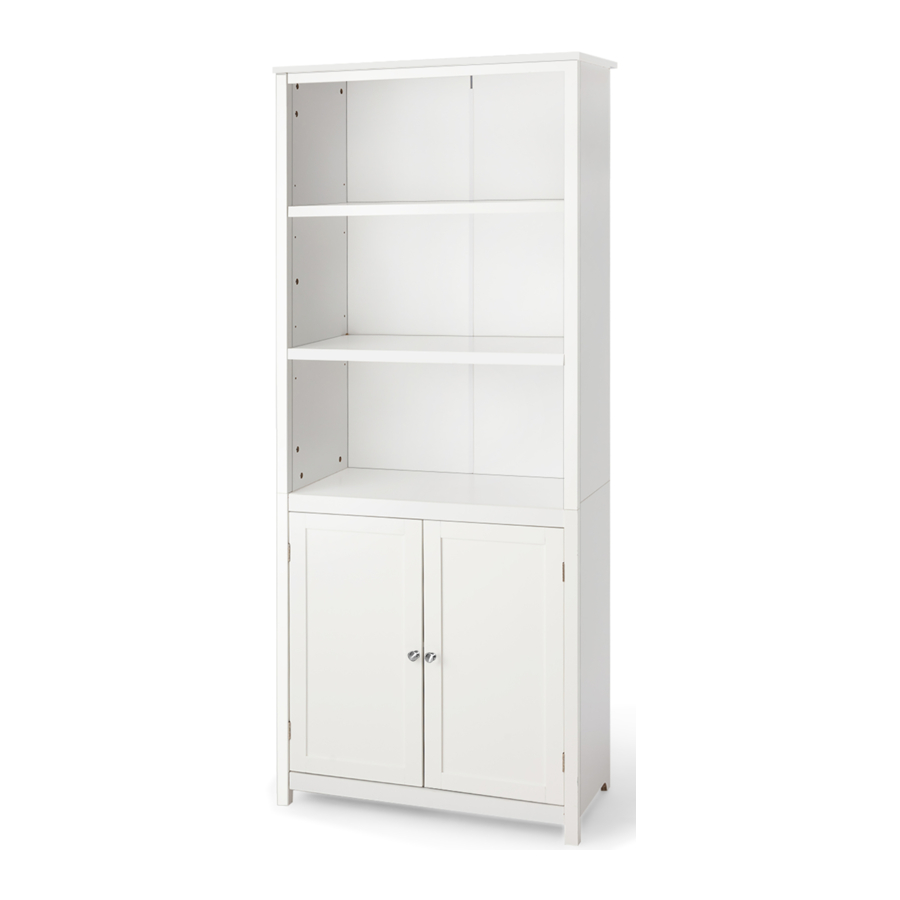

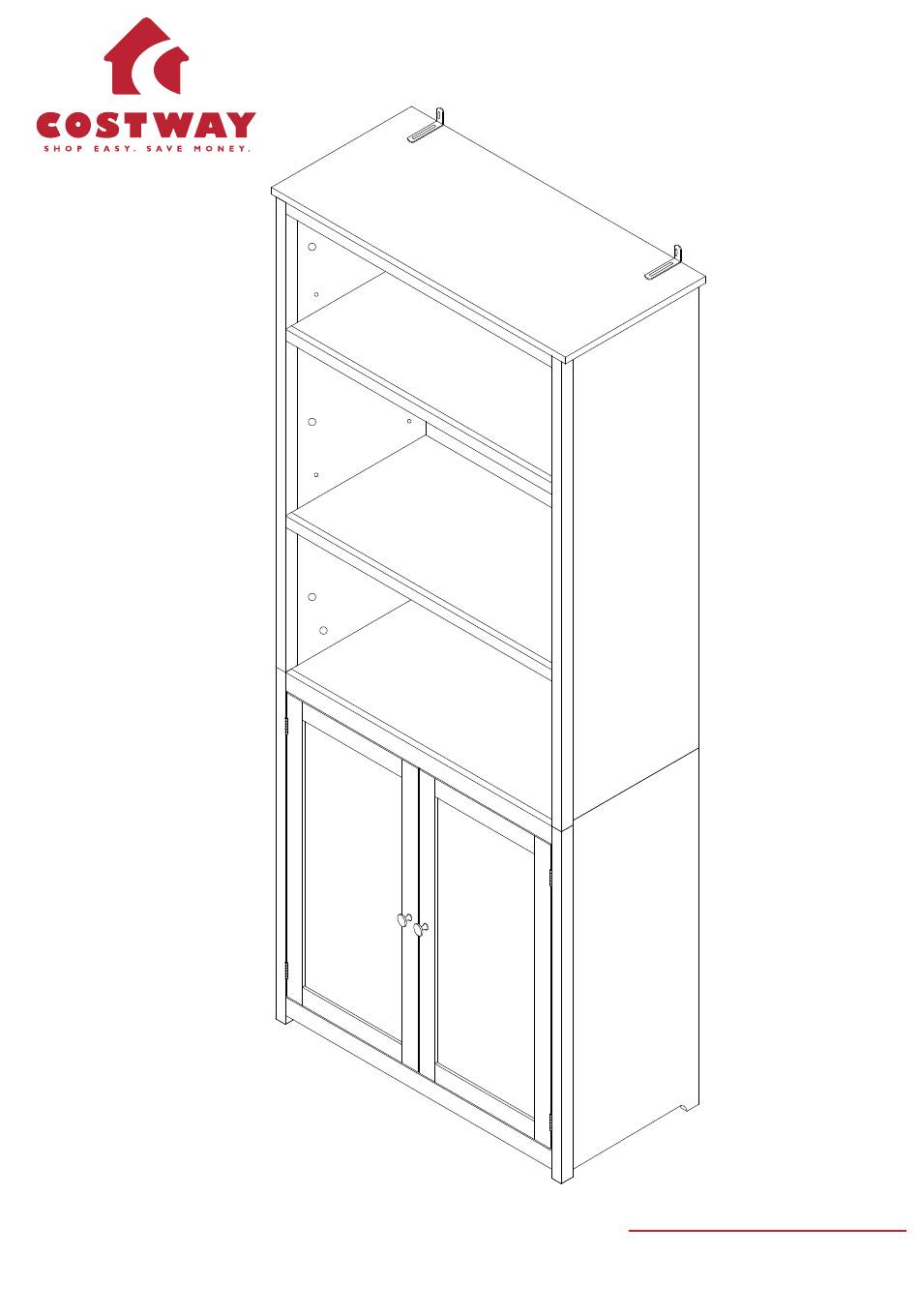

- Page 1 USER'S MANUAL Bookcase HW61830...
-
Page 2: Product Assembly
PRODUCT ASSEMBLY Hardware List 38 pcs 1 pc 3 pcs 6*35mm 4*30mm 46 pcs 2 pcs 2 pcs 15*10mm 4 pcs 2 pcs 2 pcs 4*16mm 44 pcs 2 pcs 2 pcs 8*30mm 3.5*12mm 4 pcs 12 pcs 38 pcs 2.5*12mm 2 pcs 2 pcs... - Page 3 PRODUCT ASSEMBLY Part List Assembly Overview 2/11...
- Page 4 PRODUCT ASSEMBLY 30 pcs Step 1 Screw In Cam-bolt (A) into the hole on Deco Rail (6, 7, 8, 10, 14, 15 & 16) and Top Panel (1) as show. 4 pcs Step 2 2 pcs 10 pcs 1 pc 2 pcs 2 pcs 2 pcs...
- Page 5 PRODUCT ASSEMBLY 8 pcs Step 3 1) Attach Deco Rail (7 & 8) to Upper Side Panel (2) with Wood 24 pcs Dowel (D) and Cam-bolt on (7 & 8). Insert Cam-lock (B) and turn clockwise to lock onto Cam-bolt. 16 pcs 2) Attach Deco Rail (14 &...
- Page 6 PRODUCT ASSEMBLY 4 pcs Step 4 8 pcs 1) Insert Wood Dowel (D) into the holes on Shelf (9) and Deco Rail (10 & 16). 2) Attach Shelf (9) to Lower Right Side Panel (18). 3) Insert Cam-lock (B) to the holes on (9) and turn clockwise to lock onto Cam-bolt. 4 pcs Step 5 8 pcs...
- Page 7 PRODUCT ASSEMBLY 4 pcs Step 6 4 pcs 6 pcs 1) Insert Cam-bolt (C) and Wood Dowel (D) into the holes on Middle Shelf (9). 2) Insert Cam-lock (B) to the holes on (17 & 18) and turn clockwise to lock onto Cam-bolt. 3) Attach Upper Side Panel (2) to (9) via Wood Dowels and Cam-bolts on (9).
- Page 8 PRODUCT ASSEMBLY 6 pcs Step 8 1) Insert Wood Dowel (D) into the holes on Side Panel (2). 2) Attach Top Panel (1) to (2) via Wood Dowels and Cam-bolts on (1). 3) Insert Cam-lock (B) to the holes on (2) and turn clockwise to lock onto Cam-bolt. 38 pcs Step 9 1) Attach Back Panel (21 &...
- Page 9 PRODUCT ASSEMBLY 8 pcs Step 10 2 pcs 2 pcs 3 pcs 1) Affix Top Connect Bar (4) to Top Panel (1) with Screw (O). 2) Attach Door (19 & 20) to Side Panel with Screw (G). 3) Attach Knob (K) to Door (19 & 20) with Knob Bolt (J). 8/11...
- Page 10 PRODUCT ASSEMBLY 12 pcs Step 11 Insert Shelf Pin (L) and place Shelf (5 & 12) on it. 9/11...
- Page 11 PRODUCT ASSEMBLY 38 pcs Step 12 Cover the exposed holes of Cam-lock with Plastic Cover (T). 10/11...
- Page 12 PRODUCT ASSEMBLY 2 pcs Step 13 2 pcs Bracket (P) is adjustable when you rescrew the screw (R). 1) Drill two holes in the dry wall as per the length and dia of Plastic Anchor (Q) and distance between two holes on Bracket (P) on Top Panel . 2) Press Plastic wall anchor (Q) to the drywall.
- Page 13 Great products so far February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, Costway will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office:Fontana...
