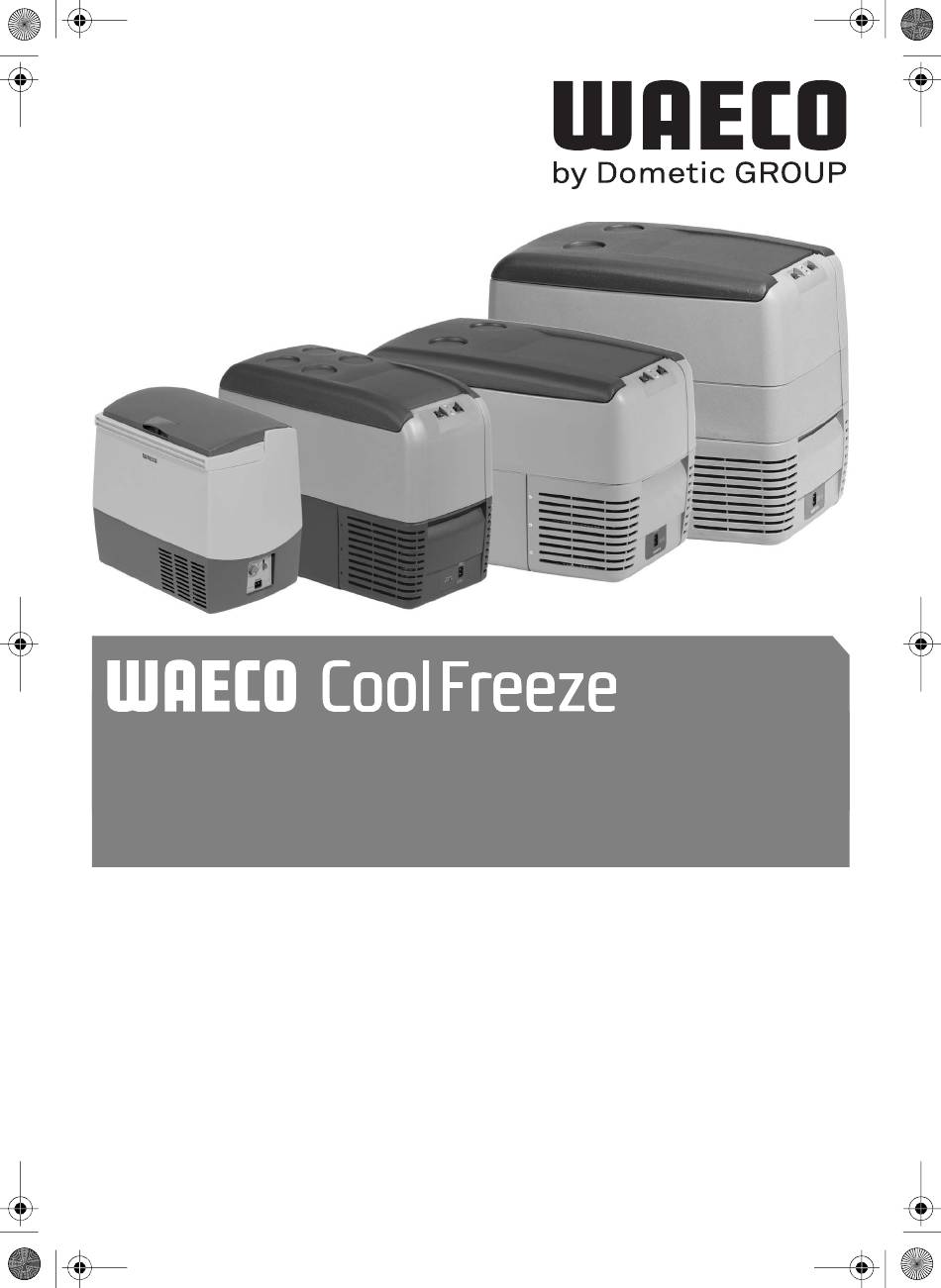

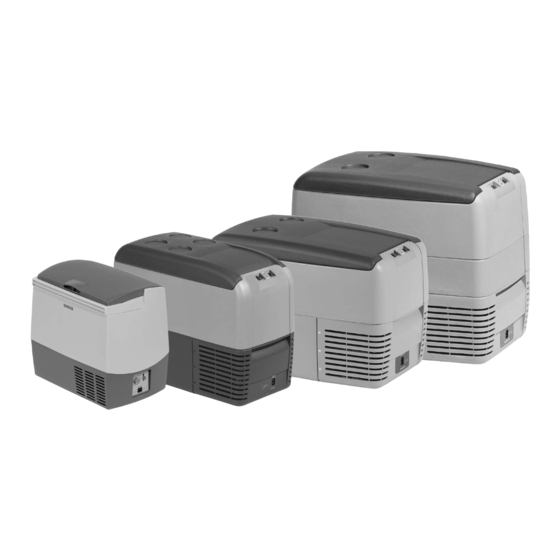

- Page 1 _CDF.book Seite 1 Mittwoch, 15. September 2010 4:21 16 CDF-45 CDF-35 CDF-25 CDF-18 CDF-18, CDF-25, CDF-35, CDF-45 MGD Online Unit 6 Flynn Row Fenton Industrial Estate Fenton Stoke on Trent Staffordshire ST4 2SE Freephone 0800 970 9486 www.mgdonline.co.uk...
- Page 2 _CDF.book Seite 3 Mittwoch, 15. September 2010 4:21 16 ERROR BATTERY MONITOR TEMPERATUR POWER COLD FREEZE HIGH CDF-25, CDF-35, CDF-45 12/24V DC CDF-25, CDF-35, CDF-45...
- Page 3 _CDF.book Seite 4 Mittwoch, 15. September 2010 4:21 16 TEMPERATURE BATTERY MONITOR ERROR HIGH POWER COLD FREEZE 12/24V DC CDF-18 CDF-25 Ø/mm² 12 V 24 V...
-
Page 4: Table Of Contents
_CDF.book Seite 19 Mittwoch, 15. September 2010 4:21 16 Notes on using the manual Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is handed over to another person, this operating manual must be handed over along with the device. -
Page 5: Safety Instructions
_CDF.book Seite 20 Mittwoch, 15. September 2010 4:21 16 Safety instructions ➤ Action: This symbol indicates that action is required on your part. The required action is described step-by-step. ✓ This symbol indicates the result of an action. Fig. 2 1, page 3: This refers to an element in an illustration. In this case, item 1 in figure 2 on page 3. - Page 6 _CDF.book Seite 21 Mittwoch, 15. September 2010 4:21 16 Safety instructions Disconnect the cooling device and other power consuming de- vices from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device.
-
Page 7: Scope Of Delivery
_CDF.book Seite 22 Mittwoch, 15. September 2010 4:21 16 Scope of delivery Caution! Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat generated during normal operation is able to dissipate. En- sure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate. -
Page 8: Intended Use
_CDF.book Seite 23 Mittwoch, 15. September 2010 4:21 16 Intended use Intended use The cooler is suitable for cooling and freezing foods. The device is also suitable for use on boats. The device is designed to be operated from a 12 V or 24 V on-board supply socket of a vehicle (e. - Page 9 _CDF.book Seite 24 Mittwoch, 15. September 2010 4:21 16 Function description Operating and display elements Operating panel and connection socket (fig. 2, page 3, fig. 3, page 3, fig. 4, page 4): Item Description Explanation TEMPERATURE Temperature controller, cooling temperature at the end positions: COLD: +10 °C FREEZE:...
-
Page 10: Operation
_CDF.book Seite 25 Mittwoch, 15. September 2010 4:21 16 Operation Accessories To operate the device at the AC mains supply, we recommend using one of the following WAECO rectifiers: – 220–240 V: CoolPower EPS100 – 110–240 V: CoolPower MPS35 Operation Before initial use Note Before starting your new cooler for the first time, you should clean... - Page 11 _CDF.book Seite 26 Mittwoch, 15. September 2010 4:21 16 Operation Connecting the cooler Note The design of the 12/24 V socket on your vehicle may not be suit- able for connecting the compressor cooler. Only an authorised spe- cialist may fit an electrical lead/socket designed for the cooler. Please observe the following instructions: –...
- Page 12 _CDF.book Seite 27 Mittwoch, 15. September 2010 4:21 16 Operation Using the battery monitor If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. The cooler will switch back on once the battery has been recharged to the restart voltage level.
- Page 13 _CDF.book Seite 28 Mittwoch, 15. September 2010 4:21 16 Operation Using the cooler Caution – Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
- Page 14 _CDF.book Seite 29 Mittwoch, 15. September 2010 4:21 16 Operation Switching off the cooler ➤ Empty the cooler. ➤ To Switch the cooler off: Slide the sliding switch “BATTERY MONITOR” to “0”: ➤ Pull out the connection cable. If you do not want to use the cooler for a longer period of time: ➤...
-
Page 15: Cleaning And Maintenance
_CDF.book Seite 30 Mittwoch, 15. September 2010 4:21 16 Cleaning and maintenance Replacing the light bulb (CDF-25 only) ➤ Press the switch pin (fig. 7 2, page 4) downwards so that the transparent part (fig. 7 1, page 4) of the lamp can be removed at the front. -
Page 16: Troubleshooting
_CDF.book Seite 31 Mittwoch, 15. September 2010 4:21 16 Troubleshooting Troubleshooting Fault Possible cause Suggested remedy Device does not There is no voltage The ignition must be switched on in function, LED does present in the 12/24 V most vehicles to supply current to the cig- not glow. -
Page 17: Disposal
_CDF.book Seite 32 Mittwoch, 15. September 2010 4:21 16 Disposal Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. - Page 18 MGD Online Unit 6 Flynn Row Fenton Industrial Estate Fenton Stoke on Trent Staffordshire ST4 2SE Freephone 0800 970 9486 www.mgdonline.co.uk...
