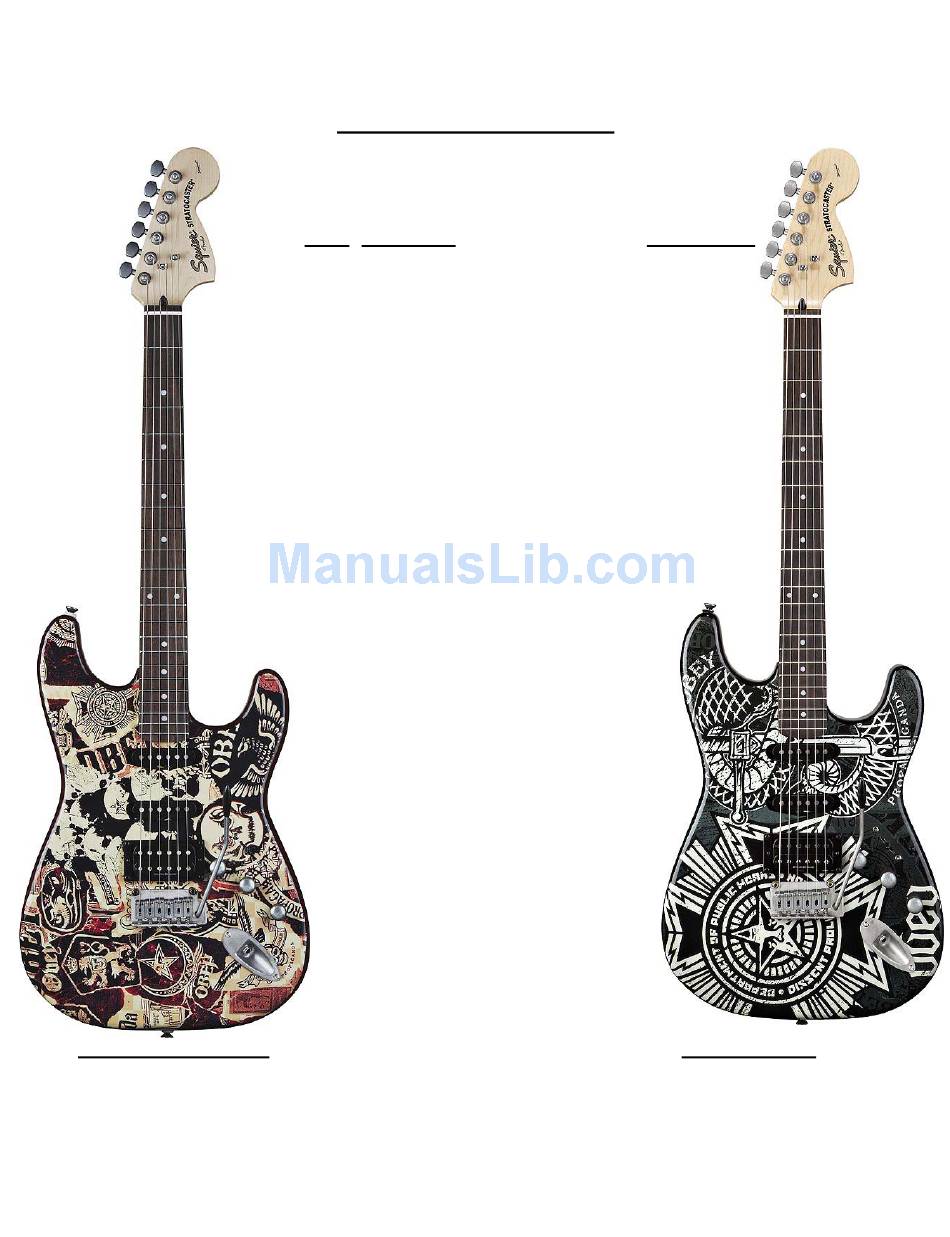

Obey "Graphic" Model
Obey Series Stratocasters
HSS Collage
Rosewood- m/n 0325000xxx
HSS Dissent
Rosewood- m/n 0325001xxx
Loc # Description
1
Standard Tuners (set of 6)
2
Bone Nut (blank) (2)
3
Vintage String Guides (pack of 2)
4
Strap Buttons (2)
5
Pickguard (parch)
5a
Pickguard Screws (24)
6
EG5 B Alnico Neck Pickup
7
EG5 B Alnico Middle Pickup
8
D.D. HH102 Bridge Pickup
9-11
500K Solid Shaft Pot (Volume/Tone)099-0835-000
9-11a
Volume/Tone Knob (ea) (chrome) 006-9979-000
12
5 Way Pickup Selector Switch
12a
Switch Tip (2) (black)
13
Output Jack Assembly (w/ plate)
14
Bridge Assembly
14a
Tremolo Arm
Part Number
006-9974-000
099-4920-000
099-4910-000
099-4915-000
007-4713-000
099-4923-000
006-9975-000
006-9975-000
006-9976-000
005-5412-000
099-4939-000
006-9980-000
006-9978-000
006-9979-000
"Dissent" Model
Last Revision Date: 5/20/2008
Page 1 of 3
