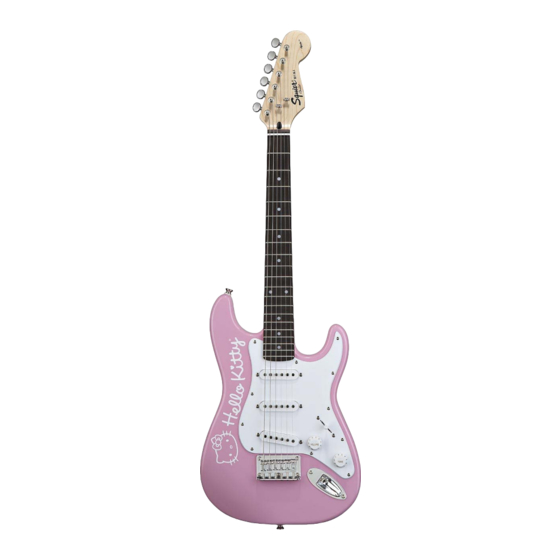

Squier Hello Kitty Mini Strat
Loc # Description
1
Standard Tuners (set of 6)
2
Bone Nut (blank) (2)
3
Vintage String Guides (pack of 2)
4
Strap Buttons (2)
5
Pickguard (w/ pickups)
5a
Pickguard Screws (24)
6
500K Split Shaft Pot (Volume)
6a
Volume Knob (white)
6b
Tone Knob (white)
7
5 Way Switch
8
Output Jack
9
Jack Plate
10
Bridge Assembly
Maple-
m/n 0335101xxx
Part Number
005-5404-000
099-4920-000
099-4910-000
099-4915-000
007-7506-000
099-4923-000
006-2383-000
006-9985-000
006-9984-000
005-5412-000
007-4512-000
007-2893-000
006-2370-000
Last Revision Date: 9/19/2008
Page 1 of 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Squier Hello Kitty Mini Strat
Summary of Contents for Squier Hello Kitty Mini Strat
- Page 1 Squier Hello Kitty Mini Strat Maple- Loc # Description Standard Tuners (set of 6) Bone Nut (blank) (2) Vintage String Guides (pack of 2) Strap Buttons (2) Pickguard (w/ pickups) Pickguard Screws (24) 500K Split Shaft Pot (Volume) Volume Knob (white)
- Page 2 Wiring Diagram Last Revision Date: 9/19/2008 Page 2 of 2...
