Summary of Contents for Soekris dac1101

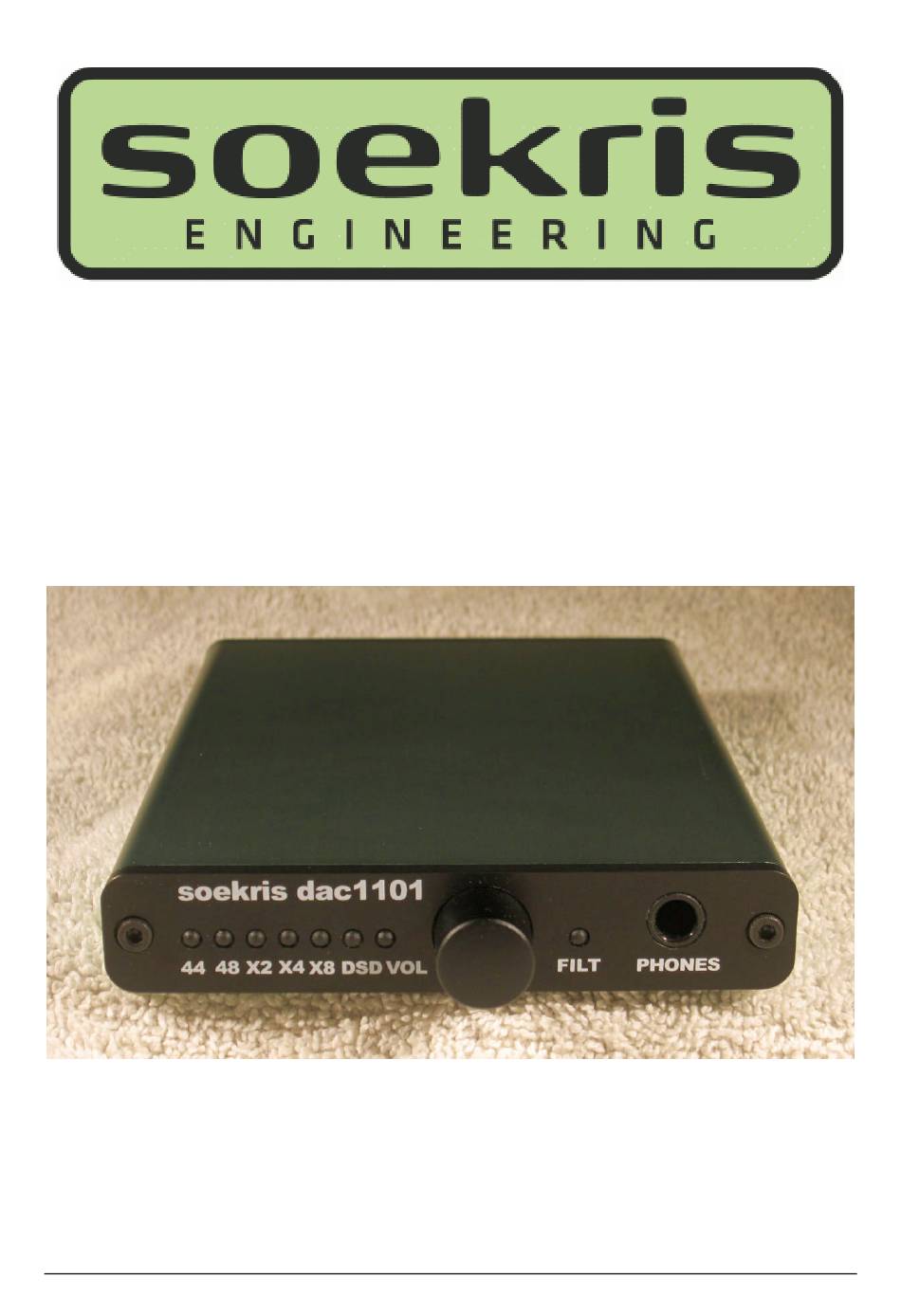

- Page 1 Users Manual Discrete R-2R USB DAC / HeadAmp www.soekris.dk March 2016...
- Page 2 Soekris Engineering ApS dac1101 Users Manual Empty Page www.soekris.dk March 2016...
- Page 3 Users Manual Introduction The Soekris dac1101 is a small R-2R DAC, with USB input and output to either the built in headphones amplifier on a front mounted 6.3mm Jack, or to line level output on rear mounted RCA Phono connectors. The dac1101 is not just any regular DAC, the sound quality is the absolute best...
- Page 4 6.3 mm Jack: is for connecting to a set of headphones, almost any type can be used, the loading impedance should be minimum 16 ohm, high impedance types work very well. The dac1101 is able to output minimum 3.5V RMS into 32 ohm or higher, in power that is 400 mW into 32 ohm, 120 mW into 100 ohm or 40 mW into 300 ohm.
- Page 5 USB type B socket: For connection to the USB interface on your computer or other audio source device. Please note that the dac1101 is a relatively high USB load, so you need to use a high quality high current USB cable, like the USB cable included with the dac1101. Please also note that the dac1101 is actually able to draw a little higher current than USB 1.1 or 2.0 can deliver according to...
- Page 6 Soekris Engineering ApS dac1101 Users Manual Conformity Declarations This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
