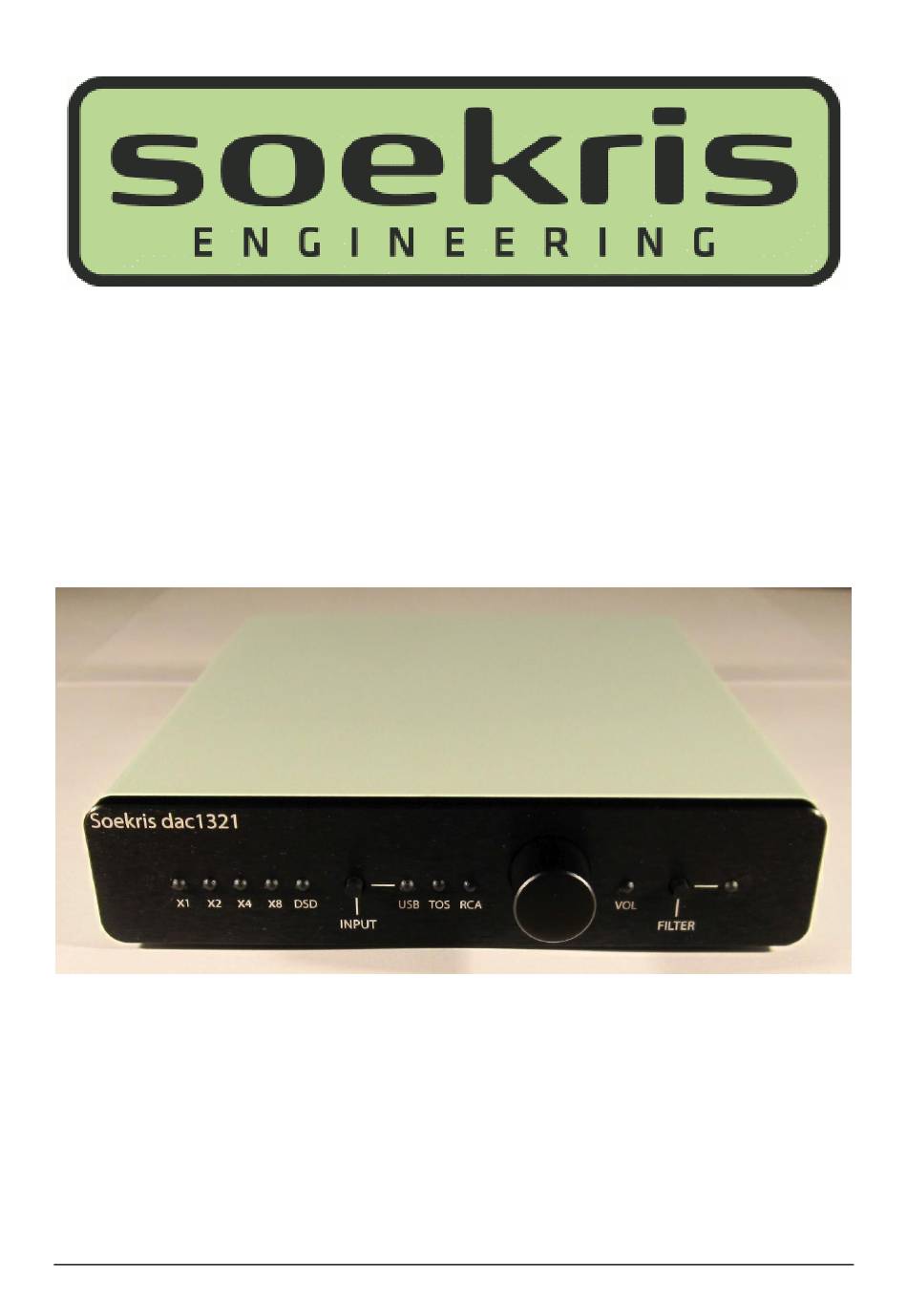

- Page 1 Users Manual Discrete R-2R DAC www.soekris.dk Dec 2017...
- Page 2 Soekris Engineering ApS dac1321 Users Manual Empty Page www.soekris.dk Dec 2017...
-
Page 3: Quick Start
The Soekris dac1321 is a low cost Audiophile discrete R-2R DAC only, with USB and SPDIF inputs and line level outputs on rear mounted RCA Phono connectors. The dac1321 is not just any regular DAC, the sound quality is the absolute best available, thanks to the ultra high end design... -
Page 4: Specifications
Soekris Engineering ApS dac1321 Users Manual Specifications THD @ -1 dB <0.012% THD @ -60 dB <0.04% Clock Jitter RMS 0.8 pS typical Discrete Resistor Network 25 bit, 0.02% - 0.05% Resistors S/N 20 Khz Bandwidth >120 dB unweighted Frequency Range @ 44.1 Khz 20hz - 20Khz +0.1 -1.0 dB... - Page 5 1 dB steps. If you connect the Line Out to a system with a volume knob you might want to set the dac1321 Line Out volume startup level to a fixed 0 dB, you can do that by turning the volume up to -4 or higher, easiest is just to turn it full up (without music playing), then store the startup setting by pressing and holding the “FILTER”...
- Page 6 You need to use a high quality USB cable, like the USB cable included with the dac1321. The switch next to the USB socket is used to select between USB Audio Mode 1, which can be used without drivers on Windows operating systems, and USB Audio Mode 2, which require drivers for Windows operating systems.
-
Page 7: Conformity Declarations
Soekris Engineering ApS dac1321 Users Manual Conformity Declarations This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
