ANCHOR OUTDOOR PergoLam Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

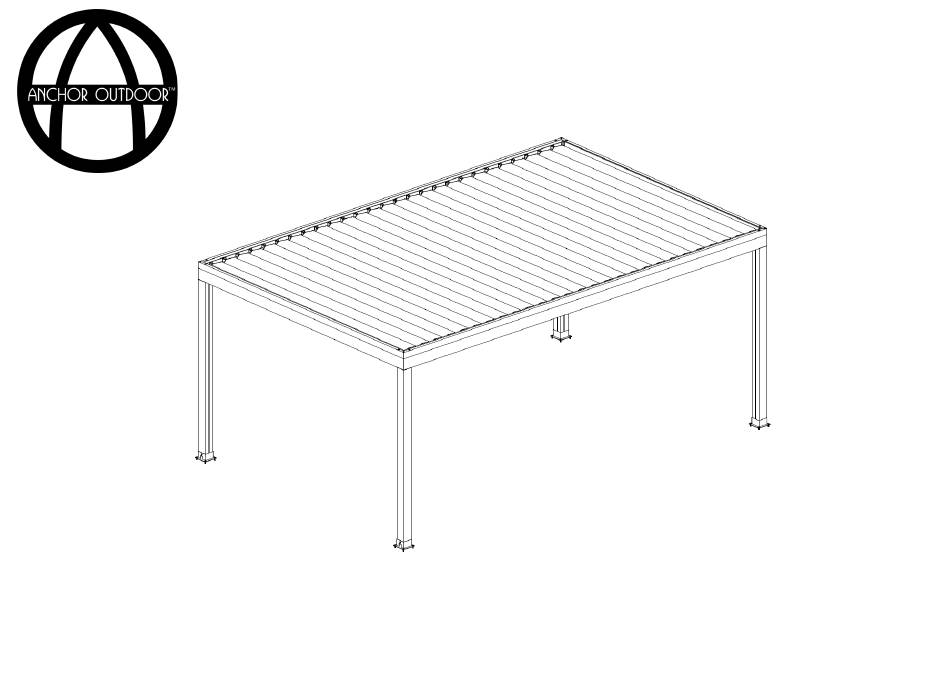

PergoLam
TM
Installation Instructions
REV. 2
7/27/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PergoLam and is the answer not in the manual?

Questions and answers

Related Manuals for ANCHOR OUTDOOR PergoLam

Summary of Contents for ANCHOR OUTDOOR PergoLam

  • Page 1 PergoLam Installation Instructions REV. 2 7/27/2023...
  • Page 2 This installation manual is to be used in conjunction with the installation videos that can be found on YouTube.com/@AnchorIndustries All details and information provided on the subsequent pages are of general nature and may not refer to your specific project. Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 3: Table Of Contents

    -Extrusion Glossary -Installation Tools -Suggested Order of Installation -Assembly Instructions Documentation Gutters & Posts Louvers Contents Transmission Bar Motor Configuration LED Strip Wiring Light Configuration Daisy Wi-Fi Controller Flaps & Covers Miscellaneous Finishing Touches -Maintenance & Care -FAQ...

  • Page 4: Extrusion Glossary

    Extrusion Glossary...
  • Page 5 Upright Insert Transmission Bar Transmission Bar Flap Lateral Falp Louver With Lights Louver With Out Lights Light Cover Frame Cap Louver Protection Gutter Top Gutter Bottom Fan Bar Wall Flashing Bottom Flap Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 6: Installation Tools

    Installation Tools...
  • Page 7 Installation Tools The following list details the minimum required tools to successfully install a Toscana PergoLam. Other tools may be required depending on your project location or configuration. Ladder(s) Metric Tape Measure Contents Level Metric Hex Key Set (M2 to M6) Combination Wrench Set (M13 &...

  • Page 8: Suggested Order Of Installation

    Suggested Order of Installation...
  • Page 9 Note: If the Pergolam is connected to a wall, connect the front uprights first, then position the gutter frame and upright assembly in place on the wall using the mechanical lift if applicable.
  • Page 10 Complete Daisy Wi-Fi controller configuration. Waterproof electrical components using the provided IP glue. Flaps and Covers. Connect all provided flaps and covers to the Pergolam. Finishing Touches. Caulk and waterproof all corners and openings to ensure a weatherproof pergola. Toscana by Anchor • PergoLam...

  • Page 11: Assembly Instructions

    Assembly Instructions Documentation...
  • Page 12 This will help to quickly identify each part on site. Each box received will also be tagged with a label that will identify which type of parts and quantities are inside. Part Tags Box Labels Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 13 Motor your pergola is properly installed. Location of Louvers with Lights Note: Information and location of information will vary based on the specifics of your project. Example Part Tag Example Part Tag Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 14: Gutters & Posts

    Assembly Instructions Gutter & Posts...
  • Page 15 Your Pergolam may contain one or more of the eight possible corner and post assemblies shown on the subsequent pages. Prior to assembly, it is beneficial to identify which configuration your specific pergola contains. The table below is included in each of the subsequent assembly pages and will help identify which assembly may be present for each type of pergola configuration.
  • Page 16 Anchor the base plate to the project surface using the appropriate anchors for your project. Note: Base plate anchors are not supplied. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 17 Make final adjustments and secure the two gutters together using the M8 set screws. Note: In most standard configurations, the two post light channels will always face in towards the center of the pergola. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 18 Connect the corners of the gutters together using the various corner weldments. Join the gutters to the weldments using the 5” bolts. Make final adjustments and secure the two gutters together using the M8 set screws. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 19 M10 countersunk bolts through the gutter weldment. Ensure the structural upright is orientated with the front face facing towards the inside of the pergola, as shown. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 20 Join the shared upright to the corner using the 5” and 13” bolts. Make final adjustments and secure the two gutters together using the M8 set screws. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 21 Join the female gutter to the male gutter using the 5” bolts and double joint weldments. Make final adjustments and secure the two gutters together using the M8 set screws and corner weldments. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 22 5” and 13” bolts. Make final adjustments and secure the two gutters together using the M8 set screws. Note: Orientation may vary with each project. Three-way configuration shown. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 23 Make final adjustments and secure the two gutters together using the M8 set screws. Connect the Pergolam to the wall using the corner wall bracket with the appropriate anchor bolts for your project (not provided). Note: Wall anchors are not supplied.
  • Page 24 Make final adjustments and secure the two gutters together using the M8 set screws and corner weldments. Connect the Pergolam to the wall using the intermediate wall bracket with the appropriate anchor bolts for your project (not provided).

  • Page 25: Louvers

    Assembly Instructions Louvers...
  • Page 26 Starting at the front of the Pergolam, secure each louver in place one at a time by adding the louver axis top and provided screws.
  • Page 27 Note: Ensuring the motor is not connected to the transmission bar during louver installation will provide additional range of motion and a simplified install. Install the rear louver in place at the rear of the Pergolam. Ensure the measurement from the outside of the gutter to the center of louver axis matches the dimension shown in the “Customer Detail”...
  • Page 28 M4.2 screws. Note: Ensure the distance from the end of the gutter to the center of the louver axis matches your customer detail drawing provided. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 29 Note: This step is to be done in conjunction with the axis connection detailed previously when on the motor side. The transmission bar flap is to be installed after the louvers have been successfully programmed. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 30: Transmission Bar

    Assembly Instructions Transmission Bar...
  • Page 31 T weldment and the transmission bar. Note: It may only be possible to connect 3 of the 4 countersunk bolts provided due to interference of the louver. Louvers not shown. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 32: Motor Configuration

    Assembly Instructions Motor Configuration...
  • Page 33 JP4 Motor Blue JP4 Motor Black installation. All electrical connections should be made by a qualified electrician with the power supply shut off. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 34 5. Clear Memorization. In the case that the memorization needs to be deleted, press P1 6x, on the 6 press hold P1. Intermittent beeps will be heard for approximately 10 seconds. Continue to hold P1 until the beeps become continuous. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 35 Motor Configuration Controls To control the Pergolam motor using the 7 channel Noon remote control, select the programmed channel on the remote and use the buttons as detailed. Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 36: Led Strip Wiring

    Assembly Instructions LED Strip Wiring...
  • Page 37 LED Strip Wiring Louvers & Gutters If applicable, connect the LED strips as shown in the diagram. Note: Lighting configuration may vary with each project. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 38 LED Strip Wiring Uprights If applicable, connect the LED strips as shown in the diagram. Note: Lighting configuration may vary with each project. Standard gazebo shown. Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 39: Light Configuration

    Assembly Instructions Light Configuration...
  • Page 40 White Circuit #3 Black Light Control Box Input #19 the provided IP glue. All electrical connections should be made by a qualified Configuration electrician with the power supply shut off. Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 41 Clear Memorization. In the case that the memorization needs to be deleted, press 7x, on the 7 press hold P3. Intermittent beeps will be heard for approximately 10 seconds. Continue to hold until the beeps become continuous. Configuration Step 2 Step 3 Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 42 Green Light Control Box Input #20 RGB Circuit #1 Blue Light Control Box Input #19 Configuration All electrical connections should be made by a qualified electrician with the power supply shut off. Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 43 (1 second) until L5 is illuminated (multiple presses of P1 may be required until L5 is illuminated). While L5 is illuminated, press and hold until a continuous beep is heard. Press any button on the remote control (continue to press P3). A continuous beep should be heard. Continued on Next Page.. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 44 Clear Memorization. In the case that the memorization needs to be deleted, press 7x, on the 7 press hold P3. Intermittent beeps will be heard for approximately 10 seconds. Continue to hold until the beeps become continuous. Step 3 Step 5 Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 45 Lighting Configuration White Control To control the white strip lights using the 7 channel Noon remote control, select the programmed channel on the remote and use the buttons as detailed. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 46 To control the white strip lights, see the white/white control section. Note: To dim RGB strips, hold the color selection button. Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 47: Daisy Wi-Fi Controller

    Assembly Instructions Daisy Wi-Fi Controller...
  • Page 48 ▪ Control up to 50 unique devices. ▪ Create scenarios, timers, and routines to send commands at a specific date and time. ▪ Connect several smartphones or tablets to the same account. Only Compatible with 2.4GHz Networks Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 49 Daisy Wi-Fi Controller Installation Step 1: Install the Daisy app from the Apple store or Google Play using the IOS or Android QR code. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 50 Step 2: Register your Daisy Account. Open the Daisy app and select “Create New Account”. Once all fields have been completed, select “Sign-Up”. Check email and confirm registration. Return to the Daisy app and login using your email and password. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 51 “Create First Installation”. Select “Start”. Select your Wi-Fi Network and select “OK”. Enter in your Wi-Fi’s password when prompted. A success message will be displayed after the Daisy box has successfully connected to the cloud. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 52 Step 4: Create a room. Using the hamburger (☰) button in the top right-hand corner, open the “Setup” page and select “Rooms”. In the right-hand corner, select “+”. Create a name for the room and assign a picture, select “Save”. To delete rooms, swipe left and select “Delete”. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 53 Step 5: Create Devices. On the “Setup Rooms” screen, select the desired room to edit. Click “+”. From device selection page, select the desired device to setup. Enter in a name for the device and select “Save”. Note: For best results, use the devices shown in the far-right image. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 54 1 through 5 detailed in the Motor Configuration (Programming) section of this document first. Replace step 2 with the instructions detailed above if a physical remote is not desired. Current % Open Louver Manual Stepping Buttons Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 55 Replace step 2 with the instructions detailed above if a physical remote is not desired. % Dimming Slider Note: If it is desired to set the RGB lights to cycle, add the additional device shown below. Lights Off Button Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 56 Programming) section if only white lights are present first. Replace steps 3 through 5 (for RGB/White configuration) or steps 2 through 3 (for White/White configuration) with the instructions detailed above if a physical remote is not desired. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 57 Step 7A: Add a scenario. Using the hamburger (☰) button in the top right-hand corner, open the “Setup” page and select “Scenarios”. In the right-hand corner, select “+”. Assign a name to your scenario and edit the graphic using the edit picture icon. When finished, select “Save”. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 58 Step 7B: Assign actions to your scenario. On the “Scenarios” screen, select the desired scenario to edit. Click the “+” icon. Select the desired device and assign the action that shall be completed when the scenario is executed. When finished, select “Save”. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 59 Step 7C: Execute scenarios. On the “Room” home screen, select the scenario button in the middle of the bottom tool bar. Select the desired scenario to execute and select “Ok”. To check what is assigned to each scenario, select the “ⓘ” next to each scenario. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 60 Select “Associate Transmitter”. On an unused channel on the remote control, press and hold one of the four preset buttons until a “Transmitter paired” message is displayed. When finished, select “Save”. The scenario can now be controlled by holding the assigned button on the remote control. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 61 “Timers”. In the right-hand corner, select “+”. Selected the desired device and assign the action that shall be completed when the timer is executed. Create the desired reoccurring frequency. When finished, select “✓”. Enable and disable timers using the toggles on the “Setup Timers” page. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 62 Alexa app. Select “Skills & Games”. Search for “Daisy” and click “Enable to Use”. Login using the email and password used to create your Daisy account. Select “Allow” when prompted to authorize. Continued on Next Page… Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 63 Once completed, devices and scenarios will appear in your Alexa app. Scan the QR code shown below for video instructions. Note: Louvers can only be controlled using routines created in the Alexa app where the louvers are part of a created scenario. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 64 Below are some example voice commands to control your pergola using Alexa. “Alexa, Turn my RGB Strip Lights to Blue” “Alexa, Turn my RGB Strip Lights off” “Alexa, Turn my White Strip Lights to 50%” “Alexa, Good Night Pergola” Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 65 Daisy Wi-Fi Controller Google Home (Optional): Connect Google Home Step 10A: Connect Google Home. Scan the QR code shown below for video instructions. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 66 “Hey Google, Turn my RGB Strip Lights to Blue” “Hey Google, Turn my RGB Strip Lights off” “Hey Google, Turn my White Strip Lights to 50%” “Hey Google, Open my Louvers 100%” Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 67 Daisy box. Plug in the Daisy box. The two LED’s will begin flashing, alternating blue and red. When Blue and red begin to flash simultaneously, release “P”. When only the blue LED flashes, the cancellation is complete. Daisy Box LED Light Indications. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 68 Connection Status. To quickly check the connection status of the Daisy box and potentially trouble shoot any connection issues, press one of the three symbols located on the top right-hand corner of the home page. A diagram will appear indicating the box connection status. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 69 5. Delete the configuration and then reset network configuration by following the steps detailed previously. Once both are complete, reconnect your Daisy box to the app. 6. If issue persist, contact your Pergola rep. Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 70: Flaps & Covers

    Assembly Instructions Flaps & Covers...
  • Page 71 Place the bottom flap across the top of the gutter light channel. Use the provided M3.5 self tapping screws to secure the flap in place in the corner. Silicone the joints as needed. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 72 Insert the louver protection flap into the top of the gutter along the projection side (perpendicular to the louvers). Use the provided M3.5 self tapping screws to secure the flap in place. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 73 Lateral Flaps Snap the lateral flap in place on the gutter in the front and rear sides of the Pergolam, parallel to the louvers. Orient the front lateral flap and rear lateral flap as shown. The rear lateral flap is shorter in length than the front as it is positioned inside of the rear louver plates.
  • Page 74 Flaps & Covers Wall Flashing Orient the wall flashing profile as shown. Attach to the desired surface using appropriate anchors (not supplied) for your project. Silicone the area as needed. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 75 Note: Frame caps are used to approximately space the louvers and hide wiring when present from the louver and upright LED’s. Modifications to the frame caps length may be necessary to accommodate for wiring. Ensure proper louver alignment before securing each louver in place. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 76 Use the two provided M4 bolts to secure the motor transformer cover in place. Note: It is best to complete this step prior to attaching the transmission flap to the transmission bar. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 77 Locate the pre-drilled pilot holes on the transmission bar and use the provided M3.5 self tapping screws to secure the flap in place. Ensure the orientation of the flap is as shown. Side View Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 78 Use the three provided M4 bolts to secure the light box cover in place. Note: It is best to complete this step prior to successfully installing and programming the Pergolam’s lights. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 79 Note: It may be necessary to secure the corner cover in place with tape while the silicone dries. Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 80: Miscellaneous

    Assembly Instructions Miscellaneous...
  • Page 81 Miscellaneous Fan Bar Attach the Fan Bar Weldment to the Pergolam gutter using the supplied M10 bolts and nuts. Connect the fan bar to the fan bar weldment using the supplied M8 Bolts. Note: This step must be completed in conjunction with connecting the gutter corners.
  • Page 82 6 to 1 for approximately 5 seconds. When the numbers 1 and six light up, release the left and right selection buttons. The remote now has 6 active channels. The left and right selection buttons can now be used to switch through channels 1 through 6. Configuration Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 83 Wind Sensor Blue Motor Control Box Input #11 Wind Sensor Brown Motor Control Box Input #12 All electrical connections should be made by a Configuration qualified electrician with the power supply shut off. Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 84 The control unit will execute a run hold while the alarm is active. The alarm will deactivate when the RAIN102H no longer detects the presence of rain and the TMP150 sensor measures an ambient temperature at or above 4°C (39°F). Configuration Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 85: Finishing Touches

    Assembly Instructions Finishing Touches...
  • Page 86 Silicone. In areas with varying weather or when a matte finish frame is utilized, it may be necessary to apply large beads of clear silicone to the strip lights once final installation is complete to ensure the lights do not move from their desired location. Toscana by Anchor • PergoLam • Installation Instructions...

  • Page 87: Maintenance & Care

    Maintenance & Care...
  • Page 88 Wind. In the event of a storm where winds are too strong to comfortably enjoy your pergola outside, the louvers should be placed in the open position to prevent damage. Each Pergolam will have a unique wind load according to its configuration and location of use.

  • Page 89: Faq

    FAQ’s...
  • Page 90 Clearing the memorization and returning the control box to factory settings will provide you with a fresh start to quickly reprogram the motor. Toscana by Anchor • PergoLam • Installation Instructions...
  • Page 91 Adjust all louvers by hand to the closed position. While louvers remain in the closed position, secure in place with the screws then insert the frame caps back into place. Connect the transmission bar back to the motor and confirm the operation of the louvers. Toscana by Anchor • PergoLam • Installation Instructions...
