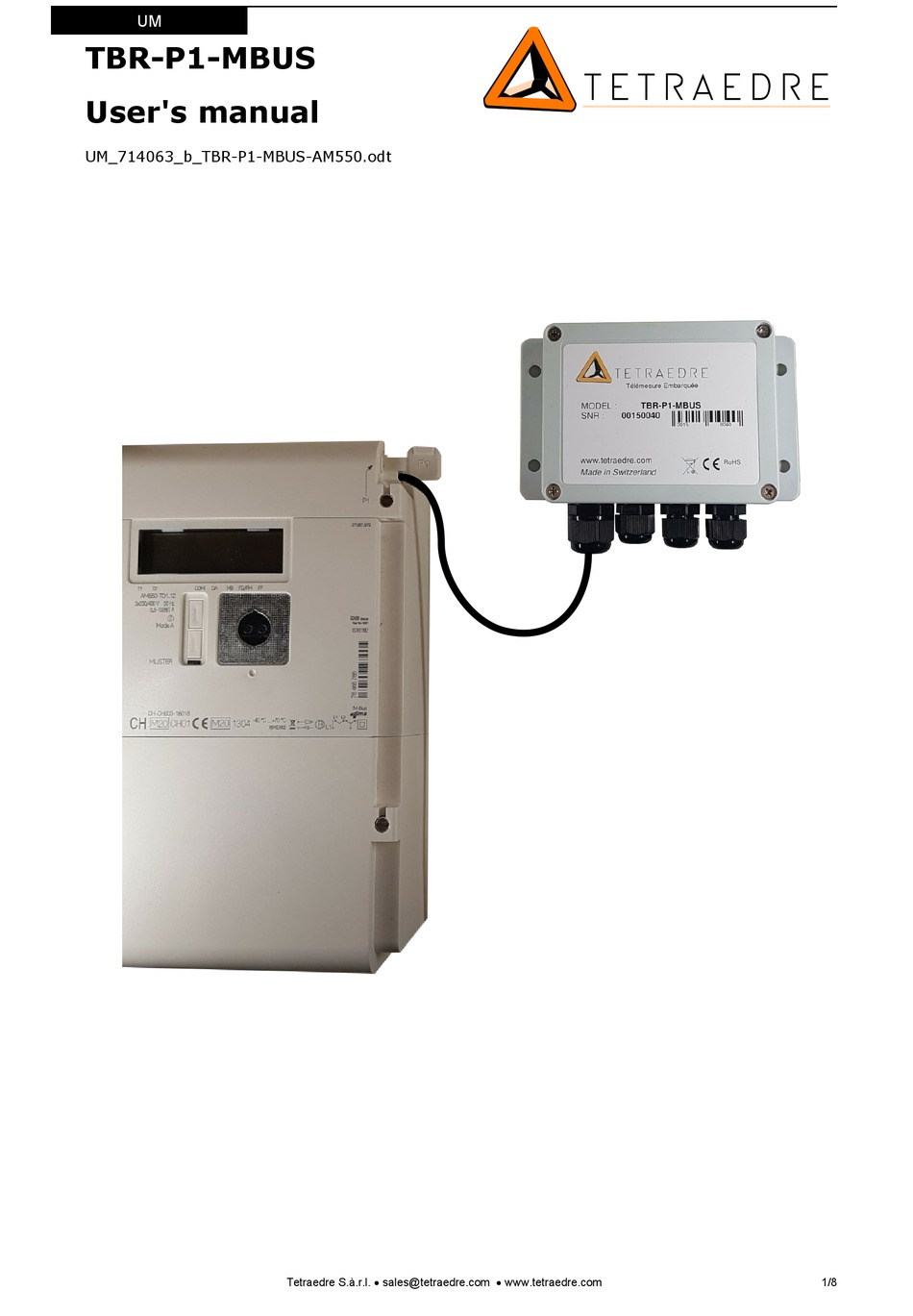

- Page 1 TBR-P1-MBUS User's manual UM_714063_b_TBR-P1-MBUS-AM550.odt Tetraedre S.à.r.l. sales@tetraedre.com www.tetraedre.com...
- Page 2 TBR-P1-MBUS User's manual Table of contents 1. ELECTRICITY METER SETUP...............3 1. Register configuration..................3 2. Speed configuration..................5 2. TBR SETUP..................6 1. P1 port......................6 2. M-BUS and power supply................6 3. Axiome Basic....................7 3. TEST....................7 1. P1 port......................7 2. M-BUS slave....................8 UM_714063_b_TBR-P1-MBUS-AM550.odt 2021-09-15...
- Page 3 TBR-P1-MBUS User's manual 1. Electricity meter setup 1. Register configuration Go to the node called "Communication" => "consumer information" => "General local port readout" : UM_714063_b_TBR-P1-MBUS-AM550.odt 2021-09-15...
- Page 4 TBR-P1-MBUS User's manual Search the register's code and clic on the arrow : The meter must be configures with those 11 registers : UM_714063_b_TBR-P1-MBUS-AM550.odt 2021-09-15...
- Page 5 TBR-P1-MBUS User's manual 2. Speed configuration Under "IEC local port setup channel 1", configure the device with : Apply the changes. UM_714063_b_TBR-P1-MBUS-AM550.odt 2021-09-15...

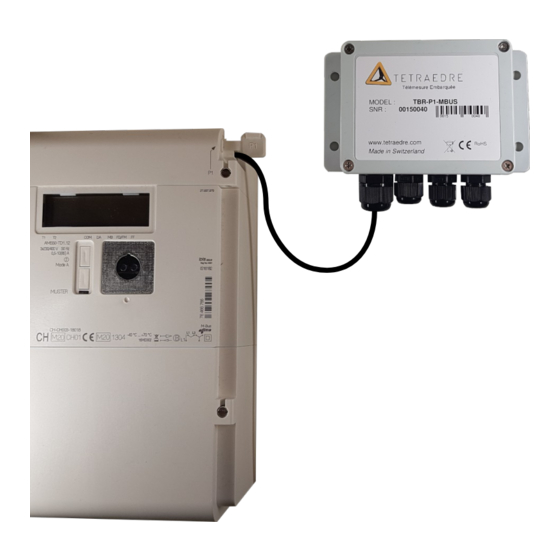

- Page 6 TBR-P1-MBUS User's manual 2. TBR setup 1. P1 port Connect the RJ12 connector into the electricity meter's P1 port. 2. M-BUS and power supply Connect the M-BUS master (polarity independent ) and the +24VDC power supply : UM_714063_b_TBR-P1-MBUS-AM550.odt 2021-09-15...
- Page 7 TBR-P1-MBUS User's manual 3. Axiome Basic Connect the INF-USB-RJ12 cable to the TBR and to the PC. This should automatically install the drivers. If it's not the case, go to www.tetraedre.com => download => USB drivers and install them manually.
- Page 8 TBR-P1-MBUS User's manual 2. M-BUS slave For example using MBsheet, read address 1: UM_714063_b_TBR-P1-MBUS-AM550.odt 2021-09-15...
