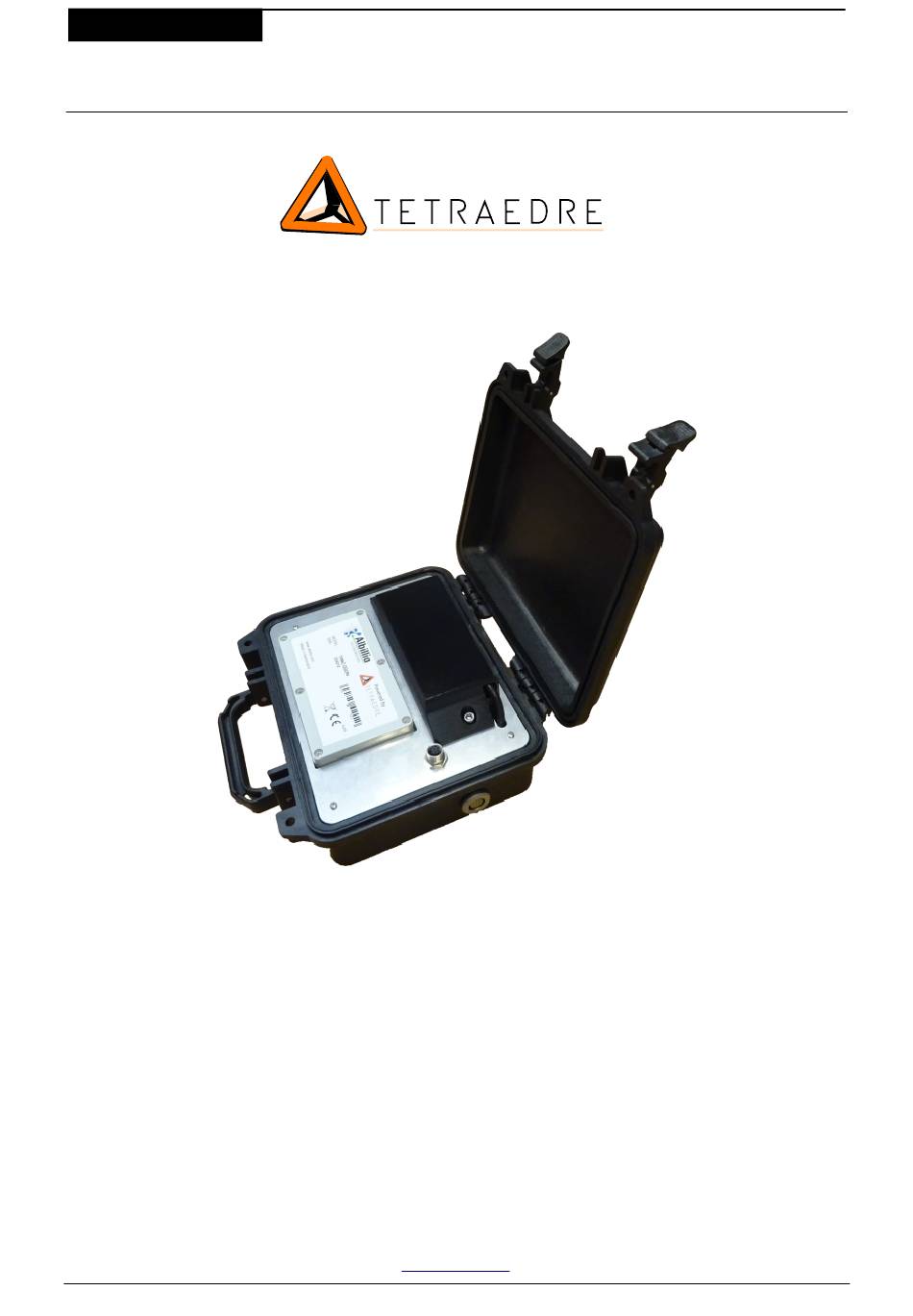

- Page 1 User's Manual.odt TRMC-GGUN TRMC-GGUN-COM User’s manual Tetraedre S.à.r.l. E-mail: web: www.tetraedre.com sales@tetraedre.com...
-
Page 2: Table Of Contents
FL-24 or FL-30 connection......................7 PC connection..........................7 ....................7 OMMUNICATING WITH THE DATALOGGER Bluetooth............................7 USB...............................7 ....................7 UNCTIONNALITIES OF THE DATALOGGER USING AXIOME BASIC WITH THE TRMC-GGUN AND TRMC-GGUN-COM....8 ...........................8 SING XIOME ASIC Connect the COM port.........................8 Data download..................................10 Affiche XML..................................12 Fluorometer measurement ppb conversion..........................13 CONTACT INFORMATION......................14... -
Page 3: Introduction
The TRMC-GGUN and TRMC-GGUN-COM are dataloggers developped by the Tetradre company especially for customer using only one fluorometer sensor, FL-24 or FL-30 of the company Albillia. TRMC-GGUN and TRMC-GGUN-COM are using the advances developped in term of hardware and software for the whole family of Tetraedre’s TRMC dataloggers family. -
Page 4: Connections
TRMC-GGUN User's manual Connections Connectors Figure 1. TRMC-GGUN connectors Electronics compartiment, including Bluetooth antenna GGUN FL-30 or GGUN FL-24 connector. RS-232 Fischer PC cable interface, for USB adapter doc_753947_b_en_TRMC-GGUN_TRMC-GGUN-COM User's Manual.odt 4/14 2023-04-17... - Page 5 TRMC-GGUN User's manual Figure 2. TRMC-GGUN Battery location Battery protection and holder Battery protection screws doc_753947_b_en_TRMC-GGUN_TRMC-GGUN-COM User's Manual.odt 5/14 2023-04-17...
-
Page 6: Connecting The Trmc-Ggun
. The battery is then easily accessible 10 11 Fuse The TRMC-GGUN contains a replaceable fuse inside the electronic box. This is a 5x20mm 1A T fuse. The fuse can easily be replaced if necessary doc_753947_b_en_TRMC-GGUN_TRMC-GGUN-COM User's Manual.odt 6/14... -
Page 7: Fl-24 Or Fl-30 Connection
When using the appropriate cable, you can communicate with the datalogger using a Windows applications. The USB adapter cable creates a COM port on your computer. Currently, to communicate with the TRMC-GGUN, you must be the Axiome Basic software. Tetraedre is currently developping a simplified version of Axiome Basic name Axiome Fluo. -
Page 8: Using Axiome Basic With The Trmc-Ggun And Trmc-Ggun-Com
TRMC-GGUN User's manual Using Axiome Basic with the TRMC-GGUN and TRMC- GGUN-COM In order to communicate with the TRMC-GGUN, you need at least Axiome Basic version h01 or newer. Check Tetraedre's web site for the latest version: https://www.tetraedre.com/publication.php?publication_id=149 Using Axiome Basic... - Page 9 TRMC-GGUN User's manual Once the COM port is opened, the «Connected» green text is displayed. see Click on «Get Status [Ctrl+S]» ( ) to view informations related to the device. Look especially at the time of the logger. Acquisition => «Next On» indicates when the next acquisition will take place.
-
Page 10: Data Download
Basic will download the new data and update an internal pointer that indicates up to where the data have been previously downloaded. So next time you won’t download the same data again The downloaded data are stored in a raw .bin file located in the directory c:\tetraedre\data_bin. A second file is created in the directory c:\tetraedre\data_xml doc_753947_b_en_TRMC-GGUN_TRMC-GGUN-COM User's Manual.odt... - Page 11 TRMC-GGUN User's manual When the download is finished a new windows is opened. Click in the «View» menu and select «TRMC-GGUN» ( ) to simplify the display. doc_753947_b_en_TRMC-GGUN_TRMC-GGUN-COM User's Manual.odt 11/14 2023-04-17...
-
Page 12: Affiche Xml
Affiche XML To analyze data after they have been downloaded, you can start the «Affiche XML» program. Within this program, you can reopen the XML file (stored in c:\tetraedre\data_xml), change the display an save the data as tabular. doc_753947_b_en_TRMC-GGUN_TRMC-GGUN-COM User's Manual.odt... -
Page 13: Fluorometer Measurement Ppb Conversion
TRMC-GGUN User's manual Fluorometer measurement ppb conversion Inside the «Affiche XML» windows, you can select the «convert to ppb» tool. We using this tools, load the newest calibration data file of your fluorometer. You can then convert the mV values returned by the fluorometer into NTU and ppb. -
Page 14: Contact Information
TRMC-GGUN User's manual Contact information Address: TETRAEDRE S.à.r.l. Epancheurs 34b 2012 Auvernier Switzerland Phone: +41 32 730 61 51 Mobile: +41 76 570 71 75 E-mail: sales@tetraedre.com Web: www.tetraedre.com doc_753947_b_en_TRMC-GGUN_TRMC-GGUN-COM User's Manual.odt 14/14 2023-04-17...
