- Page 1 CSK1215FLEX WASHING TROLLEY FOR WASHER DISINFECTORS USE AND MAINTENANCE MANUAL TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 This document refers to the Smeg accessory “CSK1215FLEX”. The accessory can only be installed and used on Smeg devices. In order for the accessory to be used properly and safely, this manual must be used in conjunction with the manual of the instrument washer in which it is installed.
-
Page 3: Table Of Contents
PACKAGE CONTENTS ..............................6 INSTRUCTIONS FOR USE............................. 7 Preparation for use ............................7 Using the accessory / positioning the instruments ................... 8 MAINTENANCE ................................. 10 TROUBLESHOOTING ..............................11 MANUFACTURER’S DETAILS AND TECHNICAL ASSISTANCE ..................11 CSK1215FLEX USE AND MAINTENANCE MANUAL... -
Page 4: Description

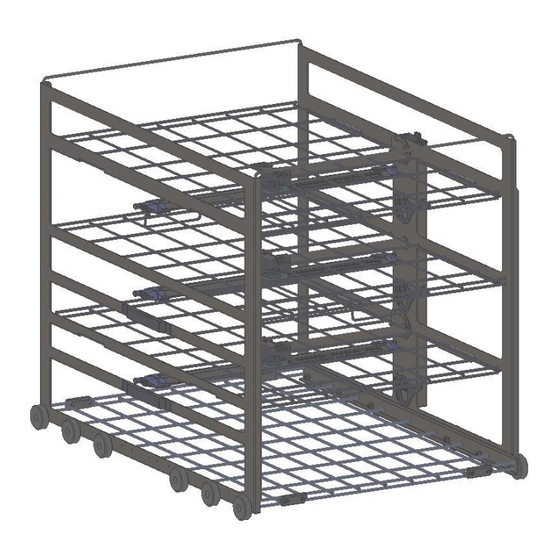

1 DESCRIPTION The “CSK1215FLEX” is a washing trolley designed to wash and thermally disinfect surgical instruments and accessories of various shapes and sizes. It can be used exclusively with Smeg “WD” – washer disinfectors for hospital use. This device has been designed to house “DIN” baskets: such as the SMEG “CSKDIN” basket (CSKDIN basket width x depth: 240 x 480 mm). -
Page 5: Dimensions
2 DIMENSIONS 2.1 CSK1215 FLEX ( * ) = FIXED RACK Figure 2 – Trolley dimensions and spaces available for positioning the baskets. CSK1215FLEX USE AND MAINTENANCE MANUAL... -
Page 6: Compatibility Between The Accessory And Devices
• 2 removable racks with spray arm • 2 rotary guillotine type outlets for spray arm conduits • 3 water outlets for other accessories • 1 pressure outlet for additional testing devices CSK1215FLEX USE AND MAINTENANCE MANUAL... -
Page 7: Instructions For Use
When inserting and removing the trolley from the washing chamber, always be careful not to subject the product to excessive force: slide the trolley along the guides provided avoiding impact and positioning it correctly so that the water manifold is aligned with the connections in the chamber. CSK1215FLEX USE AND MAINTENANCE MANUAL... -
Page 8: Using The Accessory / Positioning The Instruments
The items to be treated must not be placed on top of one another. Surgical instruments with joints must be open so that even the difficult to reach parts can be properly cleaned. CSK1215FLEX USE AND MAINTENANCE MANUAL... - Page 9 Open the water outlets in order to insert the conduits. Insert and remove the racks by removing them from the supports at the side. Lift the rack and slide it to release it from the side outlet of the manifold CSK1215FLEX USE AND MAINTENANCE MANUAL...
-
Page 10: Maintenance
Once the central pin has been unscrewed, the sprayer can be removed from the rack for cleaning. - The ends of the spray arms can be removed for inspection and cleaning. CSK1215FLEX USE AND MAINTENANCE MANUAL... -
Page 11: Troubleshooting
After sales service (Assistance and Technical Information), please contact: National contact number + 39 0522.184.85.95 Fax + 39 02.38073401 E-mail : assistenza.instruments@smeg.it • For Other Information E-mail : instruments@smeg.it International Customers Please contact your Local Smeg Distributor or send an email to service.instruments@smeg.it CSK1215FLEX USE AND MAINTENANCE MANUAL...
