DAISHIN Hard Gear SGE3500BSi Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SGE3500BSi
SGE3500BSi
SGE3500BSi
SGE3500BSi
INVERTER
PORTABLE GENERATOR
15750112002
15750112002
15750112002
15750112002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hard Gear SGE3500BSi and is the answer not in the manual?

Questions and answers

Related Manuals for DAISHIN Hard Gear SGE3500BSi

Summary of Contents for DAISHIN Hard Gear SGE3500BSi

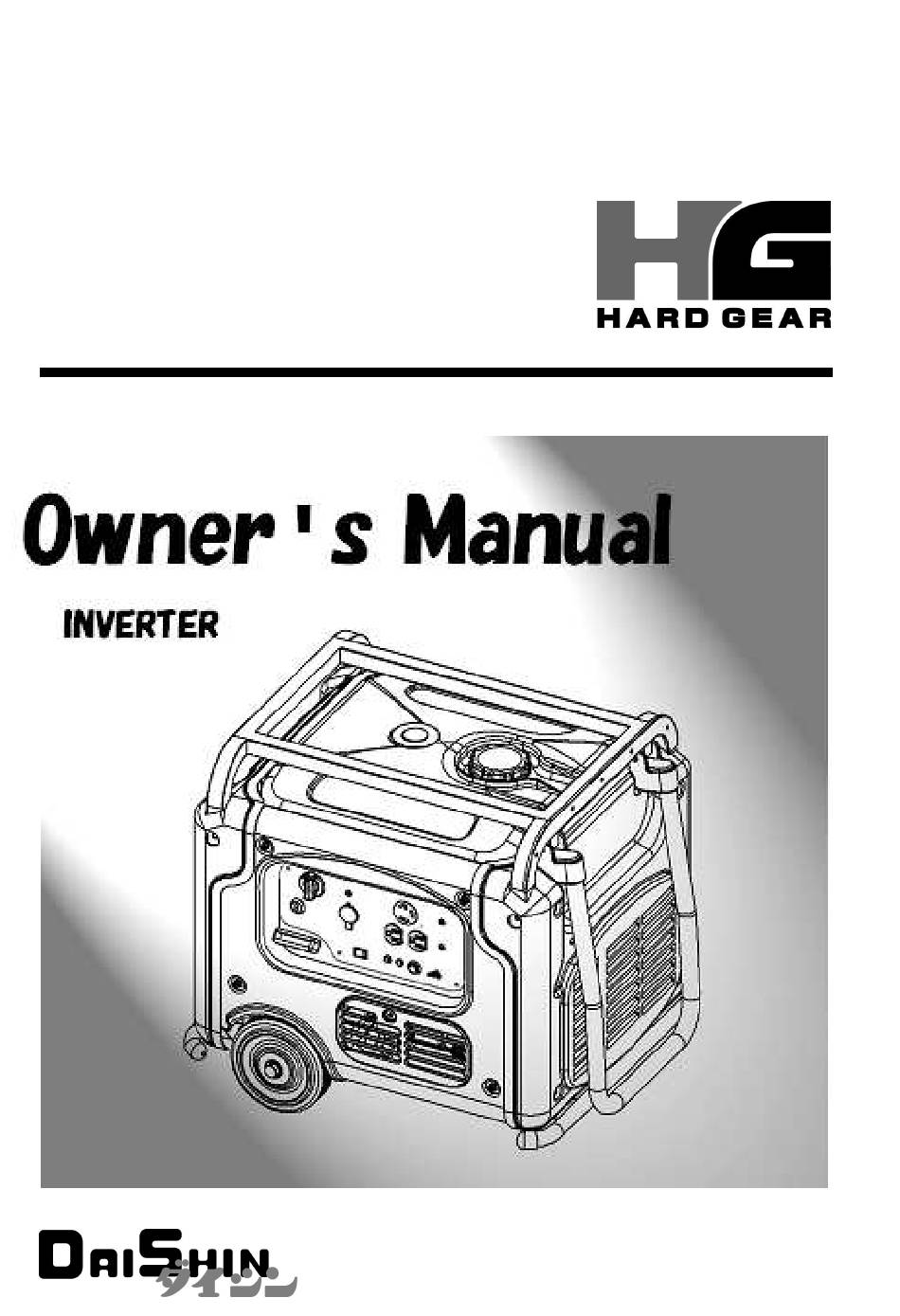

  • Page 1 SGE3500BSi SGE3500BSi SGE3500BSi SGE3500BSi INVERTER PORTABLE GENERATOR 15750112002 15750112002 15750112002 15750112002...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION…………………………………………………….2 SAFETY PRECAUTIONS…………………………………………..3 COMPONENT IDENTIFICATION…………………………………..5 CONTROLS…………………………………………………………..6 HOW TO ASSEMBLE WHEELS AND STOPPER…………...……..8 HOW TO OPERATE GENERATOR…………………………...…….8 PRE-OPERATION CHECKS……………………………………..…11 STARTING THE ENGINE / STOPPING THE ENGINE…………...15 MAINTENANCE……………………………………………………17 TROUBLE SHOOTING……………………………………………..24 SPECIFICATIONS…………………………………………………..26...

  • Page 3: Introduction

    Introduction Thank you for purchasing our generator. We would like to help you get the best results from your new generator and to operate it safely. This manual contains the information on how to operate and maintenance of our generator. Please read it carefully before operating or performing any adjustments on your generator.

  • Page 4: Safety Precautions

    SAFETY PRECAUTION Our generators are designed to give safe and dependable service if operated according to instructions. Please read and understand this owner's manual before operating your generator. You can prevent accidents by being familiar with your generator's controls, and by observing safe operating procedures. Operator Responsibility 1.Know how to stop the generator quickly in case of emergency.
  • Page 5 4.Do not connect to a building's electrical system unless an isolation switch has been installed by a qualified electrician. Fire and Burn Hazards 1.The exhaust system gets hot enough to ignite some materials. －Keep the generator at least 1 mater (3 feet) away from buildings and other equipment during operation.

  • Page 6: Component Identification

    COMPONENT IDENTIFICATION FUEL TANK FUEL TANK CAP FUEL GAUGE CARRYING HANDLE DC CIRCUIT BREAKER DC OUTPUT FUEL VALVE CHOKE KNOB RECEPTACLE FREQUENCY AC CIRCUIT CHANGE SWITCH BREAKER (INSTALL MODEL GROUND ONLY) RECOIL TERMINAL STARTER GRIP ENGINE SWITCH OIL FILLER CAP OIL DRAIN PLUG PILOT LAMP (INSIDE COVER)

  • Page 7: Controls

    CONTROLS Engine Switch Switch position OFF: To stop the engine. ON : To run the engine. Recoil Starter To start the engine, pull the starter grip lightly until resistance is felt, then pull briskly. Do not allow the starter to snap back against the engine. Return it gently to prevent damage to the starter.
  • Page 8 inspector or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator Oil Alert System The Oil Alert system is equiped to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit, the Oil Alert system will automatically shut down the engine (the engine switch will remain in the "ON"...

  • Page 9: How To Assemble Wheels And Stopper

    HOW TO ASSEMBLE WHEELS AND STOPPER Assemble wheel and stopper as the following pictures show. WHEEL STOPPER NAME Q’TY NAME Q’TY WHEEL STOPPER ASSY １ １ WAVE WASHER BOLT M8-16 ２ ２ WASHER φ２０ ３ ４ HOW TO OPERATE GENERATOR Connections to a Building's Electrical System Connections for standby power to a building's electrical system must be made by a qualified electrician.
  • Page 10 Ground System The generator has a ground system that connects generator frame components to the ground terminals in the AC output receptacles. The system ground is not connected to the AC neutral wire. If the generator is tested by a receptacle tester, it will not show the same ground circuit condition as for a home receptacle.
  • Page 11 The DC outlet should ONLY be used for charging 12-volt automotive type batteries. Up to 12V-8.3A(100W) of power is provided. Use the DC outlet for battery charging. Use only for the battery sizes of 70Ah and under. The charging of 12 volt batteries, exceeding 70Ah in size, may activate the circuit breaker.

  • Page 12: Pre-Operation Checks

    High Altitude Operation At high altitude, the standard carburetor air-fuel mixture will be excessively rich. Performance will decrease, and fuel consumption will increase. Engine horsepower will decrease approximately 3.5% for each 1,000 feet increase in altitude. PRE-OPERATION CHECKS Engine oil Engine oil is a major factor affecting engine performance and service life.
  • Page 13 ①Remove the oil filler cap and wipe the dipstick clean. Oil Filler Cap ②Check the oil level by inserting the dipstick into the filler neck without screwing it in. ③If the level is low, fill to the top of the oil filler neck with the recommended oil.
  • Page 14 Occasionally you may hear light "spark knock" or "pinging" (metallic rapping noise) while operating under heavy loads. This is no cause for concern. If spark knock or pinging occurs at a steady engine speed, under normal load, change brands of gasoline. If spark knock or pinging persists, ask to an authorized your dealer. Running the engine with persistent spark knock or pinging can cause engine damage.
  • Page 15 MTBE (methyl tertiary butyl ether) You may use gasoline containing up to 15% MTBE by volume. Before using an oxygenatedfuel, try to confirm the fuel's contents. Some states (provinces in Canada) require this information to be posted on the pump. If you notice any undesirable operating symptoms, switch to a conventional unleaded gasoline.

  • Page 16: Starting The Engine/Stopping The Engine

    STARTING THE ENGINE/STOPPING THE ENGINE Starting the engine ①Turn the fuel valve to the "ON" position. ②Pull the choke knob to the "CLOSE" position CLOSE ③Move the engine switch to the "ON" position. ④Pull the starter recoil grip until compression is felt, then pull briskly. Do not allow the starter recoil grip to snap back.
  • Page 17 Stopping the Engine In an emergency: To stop the engine in an emergency, move the engine switch to the "OFF" position. In normal use: ①Move the engine switch to the "OFF" position. ②Turn the fuel valve to the "OFF" position...

  • Page 18: Maintenance

    If the engine must be run, make sure the area is well ventilated. Use only genuine BRIGGS&STRATTON and DAISHIN parts for maintenance or repair. Replacement parts which are not of equivalent quality may damage the engine and generator and also Distributor’s limited warranty does not cover.
  • Page 19 maintenance intervals. Engine oil change Drain the oil while the engine is warm to assure complete and rapid draining. ①Remove the oil cover , drain plug , oil filler cap, and drain the oil. ②Install the drain plug . Tighten the plug securely. ③Refill with the recommended oil and check the level.
  • Page 20 Air cleaner service A dirty air cleaner will restrict airflow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dusty areas. Using gasoline or flammable solvent to clean the filter element can cause a fire or explosion.
  • Page 21 Spark Plug Service Recommended spark plugs: RC12YC (CHAMPION) To ensure proper engine operation, the spark plug must be properly gapped and free of deposit. If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler.
  • Page 22 Generator air filter Service A dirty air cleaner will restrict airflow to the generator. To prevent magneto generator malfunction, service the air filter regularly. Service more frequently when operating the generator in extremely dusty areas. Using gasoline or flammable solvent to clean the filter element can cause a fire or explosion.
  • Page 23 TRANSPORTING/STORAGE When transporting the generator, turn the engine switch "OFF" and the fuel valve "CLOSE". Keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite. Contact with a hot engine or exhaust system can cause serious burns or fires.
  • Page 24 3.Drain the carburetor by loosening the drain screw. Drain the gasoline into a suitable container. Gasoline is extremely flammable and explosive under certain conditions. Perform this task in a well ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area during this procedure. 4.Change the engine oil.

  • Page 25: Trouble Shooting

    TROUBLE SHOOTING When the engine will not start: Is there fuel in the Refill the fuel tank. tank? Is there enough oil in Add the recommended the engine? oil. Is there a spark from Replace the Take the generator to the spark plug? spark plug.
  • Page 26 No electricity at the AC receptacles: Is the AC circuit breaker, Breaker push to reset “ON”? the AC circuit breaker is “ON” Check the electrical Take the generator to an appliance or equipment authorized your dealer. for any defects. ・Replace the electrical appliance or equipment.

  • Page 27: Specifications

    SPECIFICATIONS Model SGE3500BSi Generator AC Frequency 50Hz 60Hz AC Output Voltage 110,120,220,230V Maximum AC Output 3000VA 3000VA Rated AC Output 2800VA 2800VA DC Output 12V-8.3A Voltage Regulator Inverter Type Engine Model BRIGGS＆STRATTON I/C6.5HP Type Air-Cooled, 4Cycle,OHV Gasoline Engine Displacement 206cm Maximum Power Output 4.8kW / 4000min Others...
  • Page 28 DAISHIN DAISHIN INDUSTRIES INDUSTRIES LTD. LTD. DAISHIN DAISHIN INDUSTRIES INDUSTRIES LTD. LTD. 1520-1 , Funatsuke , Yoro-cho Yoro-gun , Gifu 503-1382 Japan TEL (0584) 36-0501 FAX (0584) 36-0504...
