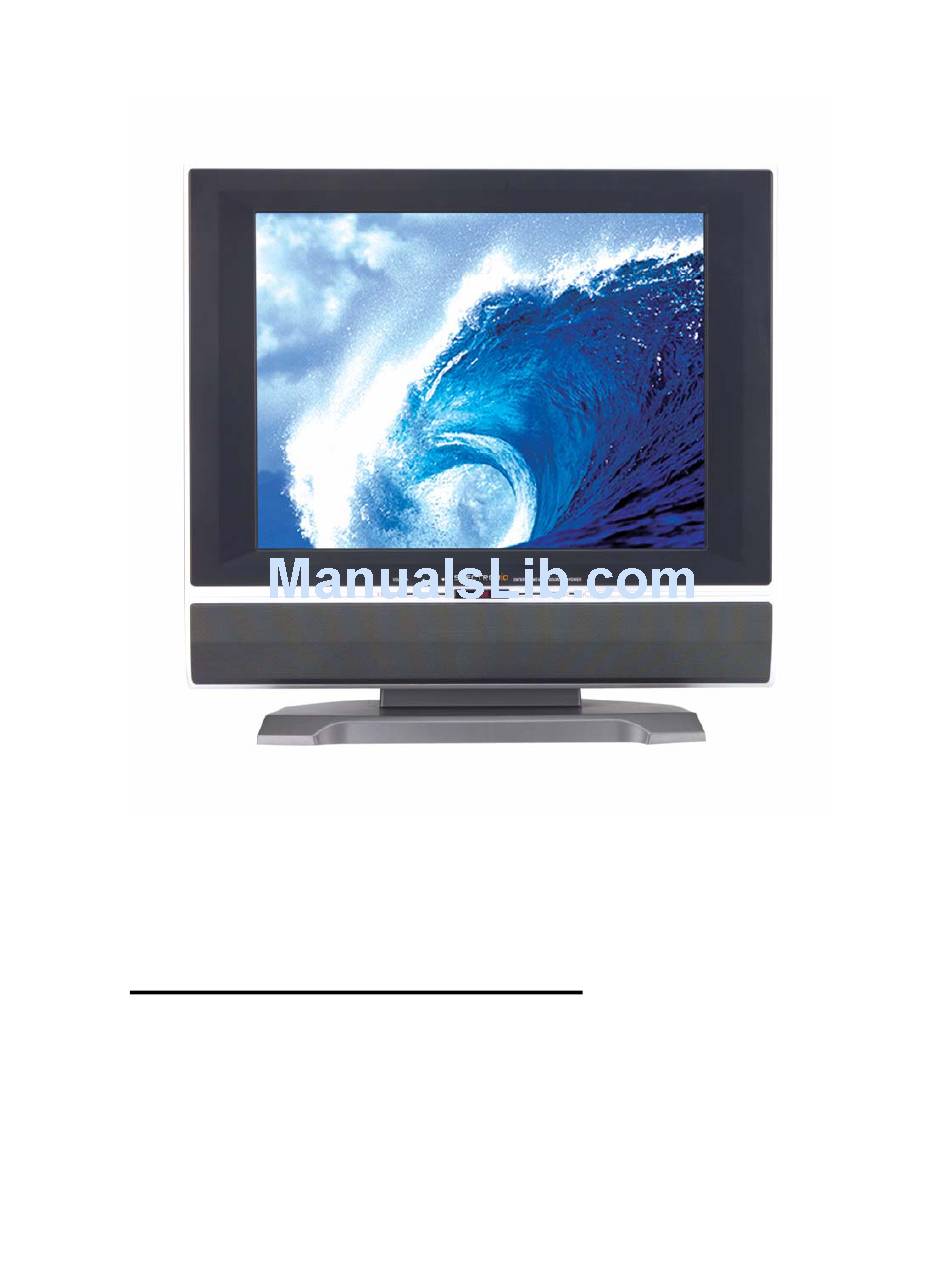

- Page 1 SpectronIQ PLTV-20NS30 20” Liquid Crystal Display Owner’s Manual...
-
Page 2: Important Safeguards
- Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. - Page 3 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.
- Page 4 TO PREVENT POSSIBLE DANGER, ELECTRIC SHOCK, AND OTHER INJURIES WHEN HANDLING YOUR DISPLAY, PLEASE BE AWARE OF ALL WARNINGS AND SAFETY PRECAUTIONS CONTAINED BELOW. Never Insert anything into DISPLAY!! Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts.
-
Page 5: Fcc Compliance Statement
*Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help. Caution: To comply with the limits for an FCC Class B computing device, you should use the shielded signal cord and power cord supplied with this unit. -
Page 6: Antenna Connections
CABLE TV CONNECTIONS This TV has an extended tuning range and can tune most cable channels without using a Cable TV converter box. Some cable companies offer “premium pay channels” in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company. -
Page 7: Table Of Contents
Introduction Congratulations on the purchase of your LCD TV. This handbook has been designed to help you install and operate your display. We would recommend reading it thoroughly. Table of contents Getting Started Features ……………………………………………………………………... 7 Standard accessories ……………………………………………………... 7 Location of controls …………….……………………………………………... -
Page 8: Getting Started
˙Supports VGA resolution of 640x480 pixels ˙Digital Character Smoothing ˙Analog TV tuner ˙Windows 95/98/2000/XP Plug & Play Compliant ˙Versatile, User friendly OSD ˙Plug & Play: Conforms to VESA standards and supports DDC1/2B spec. Unpacking and checking package contents Before unpacking your LCD Display, prepare a stable, level, and clean surface near a wall outlet for your LCD Display. -
Page 9: Battery Installation
• When there is an obstacle between the TV and the remote control, the remote control may not operate. • When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the Remote sensor of the TV, the remote operation may be unstable. -
Page 10: Front View
① POWER：Press to activate the Display On and Off (standby). ② SOURCE：Press to display and cycle through all of the available input sources. ③ MENU：Press to see OSD menu of your TV’s adjustments / selections. (It can stop scan function when auto scan function is active) ④... -
Page 11: Rear Panel Jacks
Rear View REAR PANEL JACKS Side view Connect the coaxial cable or antenna. (If connectors do not match, ① use adaptor included) ② YCbCr Audio Audio input terminal for connecting the YCbCr audio source. Connects to the component video output terminal of a video source ③... -
Page 12: The Remote Control Keys
Turn V-chip mode on and off. V-chip Display Display current information. Source Select input source TV, AV, S-Video, Component (YCbCr), VGA. Mute Mute the sound. Sleep Set the sleep timer to turn off the display set. (0, 30, 60, 90, 120 MIN) Automatically scan and memorize the received channels. -
Page 13: Installation
Step 1. Positioning the display set Place your TV Display set on a solid stable surface. Do not expose the display to water, or a heat Source. Do not obstruct the ventilation grid at rear. Step 2. Connecting the aerials 1. -
Page 14: Setup
Fine Tune Channel Memory V-Chip Closed Caption Step 2. Auto scan: This part of the setup allows the display set to search for all channels viewable through your antenna or cable TV system. Menu- TV Picture Audio Input Select TV Setup... -
Page 15: Remote Operation
Select “System” and press “ENTER”. Select the appropriate system and press ENTER. Navigate back to TV-setup submenu then select “scan”, and press ENTER Remote to start scan automatically. Power on/off Press the “POWER’ key to turn on the Display. Source select Using remote control Press SOURCE to select the input signal. -
Page 16: Input Select
Use / to adjust the settings. Press “Enter” to confirm the setting. Press MENU to exit the current OSD page. The same main menu is displayed during all modes; TV, AV, S-video, Component, VGA Menu-TV Picture Audio Input Select TV Setup... -
Page 17: Picture Adjusting
[ Picture Adjusting ] 1. Press MENU, select PICTURE and press ENTER. 2. Press “CH ” key to select BRIGHTNESS / CONTRAST / HUE / SATURATION / BLACK LEVEL, then press ENTER. Use adjust. In TV & Video mode Picture Brightness Contrast Saturation... - Page 18 Adjusting the MISC setting Information : Shows the display information on the screen. In TV & Video mode: video format and resolution. In PC mode: H & V frequency and resolution. OSD timeout : Adjusts the OSD elapse time before disappearing.
-
Page 19: Other Function Setting
Select “Channel Memory” to memorize receivable channels and erase unwanted channels during Up / Down tuning. Sleep timer Activates the “sleep timer” to automatically turn off the TV. Using remote control 1. Press “SLEEP” button on the remote control, the screen displays timer options. -
Page 20: Closed Caption
Closed caption is a system which allows you to read the voice content of television programs on the TV screen to help the hearing impaired. This feature uses onscreen text boxes to show conversation and dialogue while the program is in progress. Usually C.C. 1 is the most used. C.C. 2 may be used for alternate languages. -
Page 21: V-Chip
“1234”. You can use the “change code” function to change the password. Using main menu: 1. Press MENU key and select TV Setup with CH . Press ENTER and select “V-chip”. 2. Enter the password to get into V-chip. The default password is “1234” and you can use the “change code”... - Page 22 ” TV-7 TV-G TV-PG TV-14 TV-MA NOTE: Save new password in a safe place as TV will memorize the new password regardless if power is disconnected and will __ __ __ __ no longer accept “1234” code Operation program. “...
-
Page 23: Other Information
Make sure the DISPLAY is ON. is red. Make sure the signal cable is properly connected. Unclear picture, Make sure the TV signal is being received or cables are well connected. Noise Make sure the audio cables are properly connected. -
Page 24: Vga Mode
Green, red, blue, This is a characteristic of liquid crystal. It will not cause a white dots on malfunction. screen Make sure battery’s power is ok, or wrong battery polarity orientation. Remove the obstacle between remote control and DISPLAY. Remote control does not work Check if one of Key buttons is stuck which may cause a malfunction. - Page 25 300-10626-00...
