Sharp R-315JS Service Manual page 7

properly grounded and polarized. If the extension cord must be used, it
should be a 3-wire, 15 amp. or higher rated cord. Do not drape over a
countertop or table where it can be pulled on by children or tripped over
accidentally.
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE
THE ROUND GROUNDING PRONG FROM THIS PLUG.
1 Door opening button
Push to open door.
2 Oven door with see-through
window
3 Safety door latches
The oven will not operate unless
the door is securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable
support in the center of the oven
floor.
8 Removable turntable
Place the turntable on the
turntable support securely. The
turntable will rotate clockwise or
counterclockwise.
Only remove for cleaning.
9 Ventilation openings (Rear)
NOTE:
Some one-touch cooking features such as "MINUTE PLUS" are disabled after three minutes when the oven is not in
use. These features are automatically enabled when the door is opened and closed or the STOP/ CLEAR pad is pressed.

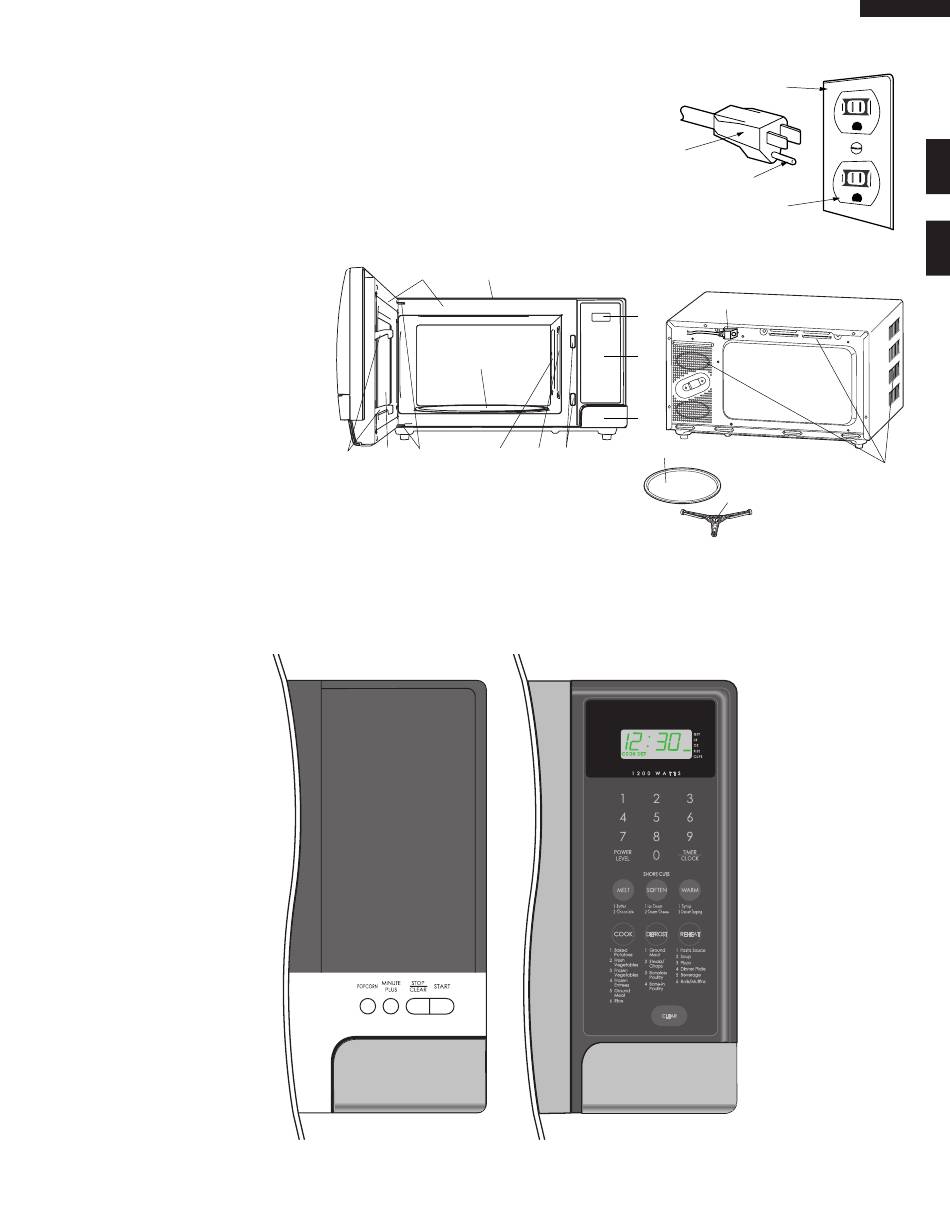

OVEN DIAGRAM
5 9
6
2 4 11
3
10 Oven light
It will light when oven is operating or when the
door is open.
11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds
14 Power supply cord
TOUCH CONTROL PANEL
Door closed
5
Grounded
Receptacle Box
3-Pronged
Plug
Grounding Pin
3-Pronged Receptacle
13
12
1
8
10 3
Door open
R- 315JS
14
9
7
