Quick Links
Fountain Components
Item Description
Rittenhouse
Fountain - Disc
Rittenhouse
Fountain -
Water Feature
Rittenhouse
Fountain -
Column
Rittenhouse
Fountain -
Pump Cover
Rittenhouse
Fountain -
Pump Cover
Door
Rittenhouse
Fountain - Basin
Fountain Information:
• Two people are recommended for the installation of this fountain!
• This fountain holds approximately 20 gallons of water.
• This fountain uses a medium fountain cover: FTNCOV-MED
• Compatible with #10 Refill Device and LED kits
• A special stopper is required to use the refill kit for this fountain
Pump Information:
OEMPF320 - 320 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-277A
1
FT-277B
1
FT-277C
1
FT-277D
1
FT-277E
1
FT-277F
1

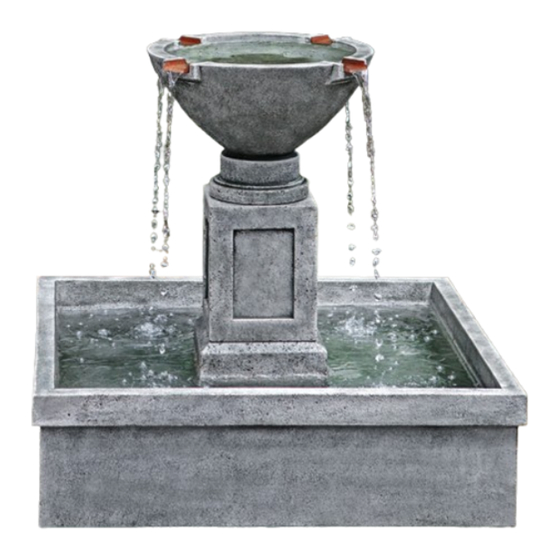

FT-277 Rittenhouse Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK300 Pump
(use adapter indicated)
#10 Stopper
20" length of 1/2" black non-kink tubing
1.5" length of 5/8" clear tubing
1.5" length of 1/2" CPVC pipe
Copper Spillers
(FT-277SPL)
2.8 oz tube of silicone
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
1
4
1
Wedges
4
1
rev 4/6/2020
Advertisement
Related Manuals for Campania International Rittenhouse FT-277
Summary of Contents for Campania International Rittenhouse FT-277
- Page 1 FT-277 Rittenhouse Fountain Assembly Instructions Fountain Information: • Two people are recommended for the installation of this fountain! • This fountain holds approximately 20 gallons of water. • This fountain uses a medium fountain cover: FTNCOV-MED • Compatible with #10 Refill Device and LED kits •...
- Page 2 FT-277 Rittenhouse Fountain Assembly Instructions Two people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-277 Rittenhouse Fountain Assembly Instructions Step 8 - Center the bowl (FT-277B) over the pedestal (FT-277C). Step 9 - Insert the CPVC end of the preassembled tubing to the CPVC coupling protruding from the bottom of the bowl (FT-277B). Step 10 - Use the silicone provided to attach the copper spillers 10a - Lip of the spillers should be on the inside of the bowl.
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - Ensure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
