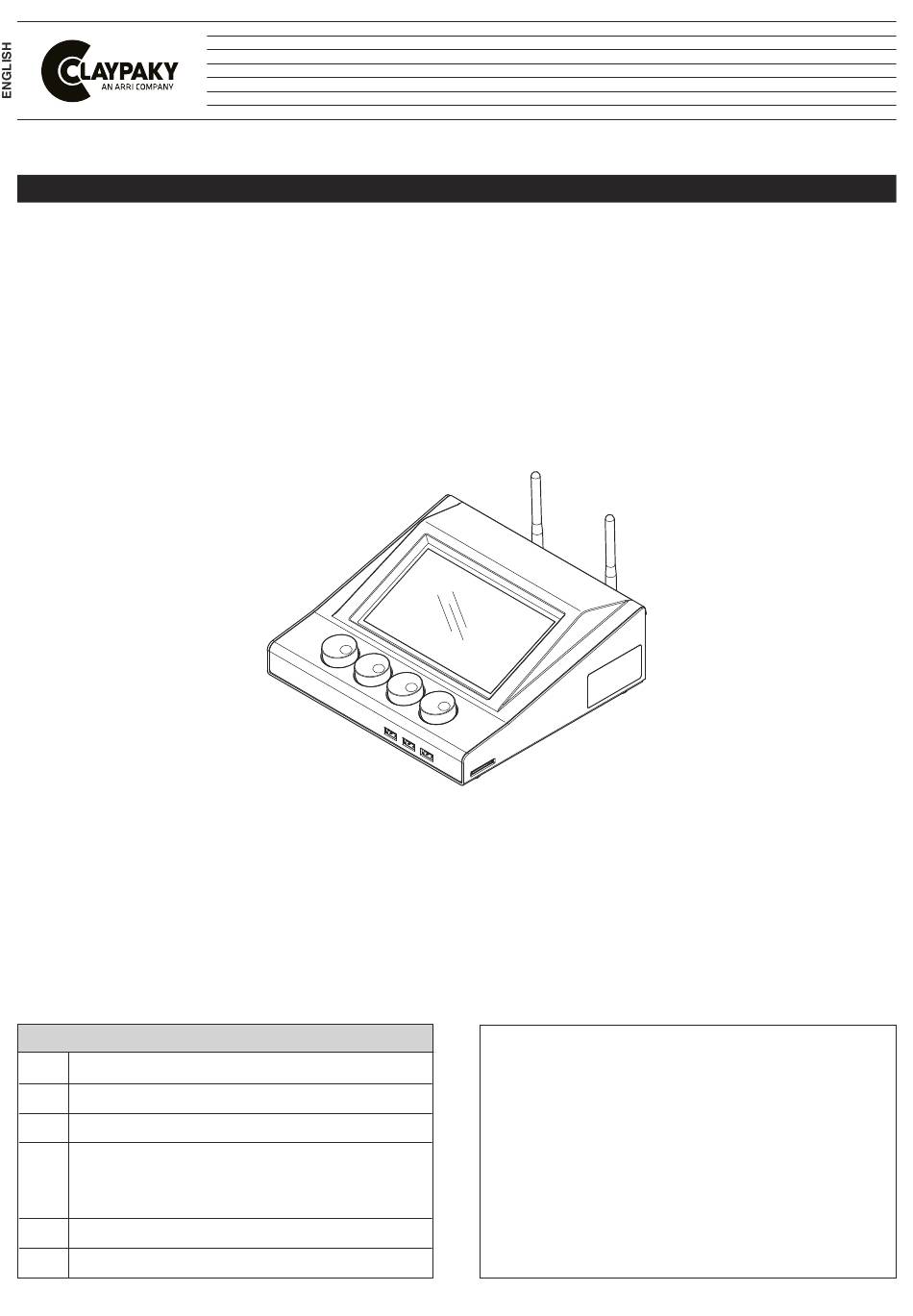

INSTRUCTION MANUAL
INDEX
CloudIO
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
CA8001

Advertisement

loading
Need help?

Need help?

Do you have a question about the CloudIO CA8001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Claypaky CloudIO CA8001

Summary of Contents for Claypaky CloudIO CA8001

  • Page 1: Table Of Contents

    We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best Installation and start-up meet your expectations and requirements.

  • Page 2: Safety Information

    1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com FIS01X - Safety Information CloudIO INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: www.claypaky.com...

  • Page 3: Installation And Start-Up

    3. INSTALLATION AND START-UP 3.1 Connecting to mains supply Pin assembly - Fig. 2 Main Switch Encoder Wheel USB IN SD Card Ethernet 1 Ethernet 2 Antenna PowerCon IN Gigabit Wi-Fi Control Panel - Fig. 3 DMX OUT: used to connect the controlled lighting fixtures (a terminating plug must be inserted into the last luminaire with a resistance of 120Ohm, minimum 1/4 W, between terminals 2 and 3).
  • Page 4 3.2 CloudIO Application Launcher HOME SCREEN CloudIO box Home screen. At power up CloudIO presents the "Applicaton Launcher" page, where we can find the 3 main APP: - Connectivity Entering this tab, the user can enable or disable the CloudIO box. - Offline Firmware Uploader Entering in this tab the user can upload, through the dmx line, a firmware from an external storage device.
  • Page 5 APP CONNECTIVITY CloudIO box enabled / disabled The Connectivity App activates the CloudIO BOx in gateway mode, allowing the management of the fixtures connected to the DMX OUT output throu- gh the services provided by the CloudIO platform. Refer to www.cloudiobox.tech to get info about the available cloud service information. The DMX IN and DMX OUT are typically digitally short-cutted, in order to allow to the DMX traffic coming from a Lighting console, connected on the DMX IN, to reach the lighting fixture connected on the DMX OUT.
  • Page 6 - Fixture offline firmware uploader - external storage insertion This APP allows you to update the firmware of any Claypaky fixture. User can upload the ''.img file'' of the new firmware in the root of a USB KEY and press CONTINUE in order to activate the update procedure: all Claypaky lights connected to the DMX OUT output, if compatible with the firmware version present selected, will be updated to the new firmware version.
  • Page 7 OFFLINE FIRMWARE UPLOADER FOR FIXTURES - Fixture offline firmware uploader – firmware files selection - Fixture offline firmware uploader – Uploading file selection CloudIO...
  • Page 8 OFFLINE FIRMWARE UPLOADER FOR FIXTURES - Fixture offline firmware uploader - update performed correctly CloudIO...
  • Page 9 SETTINGS CloudIO Box settings - home page CLOUDIO BOX – GENERAL INFO CloudIO box Settings - General information CloudIO...
  • Page 10 WIFI CloudIO box WiFI Settings – Network scanning SETTINGS_WIFI_INFO CloudIO box WiFI Settings – Network detailed info CloudIO...
  • Page 11 ETHERNET CloudIO box Ethernet Settings – Ethernet port settings CloudIO...
  • Page 12 CLOUD CloudIO box Cloud Settings - CloudIO pairing CloudIO box/User To pair your CloudIO BOx please register at cloudiobox.tech cloud service. Then enter here your CloudIO account e-mail and password. Ref to www.cloudiobox.tech to get info about the available Cloud Service information. SETTINGS_CLOUD_PAIRED CloudIO box Cloud Settings - CloudIO box successfully pairied CloudIO...
  • Page 13 CloudIO SOFTWARE UPDATE - CloudIO Box Software Update - external storage insertion - CloudIO box Settings software update – CloudIO box firmware sending CloudIO...
  • Page 14 CloudIO SOFTWARE UPDATE - CloudIO box Settings software update – CloudIO box firmware update performed correctly CloudIO...

  • Page 15: Cause And Solution Of Problems

    4. DIMENSIONS (5.35") (10.04") (9.45") 5. CAUSE AND SOLUTION OF PROBLEMS THE FIXTURE WILL NOT SWITCH ON PROBLEMS ELECTRONICS NON-OPERATIONAL POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Signal transmission cable faulty or disconnected. Replace the cables. Fault in the electronic circuits.
