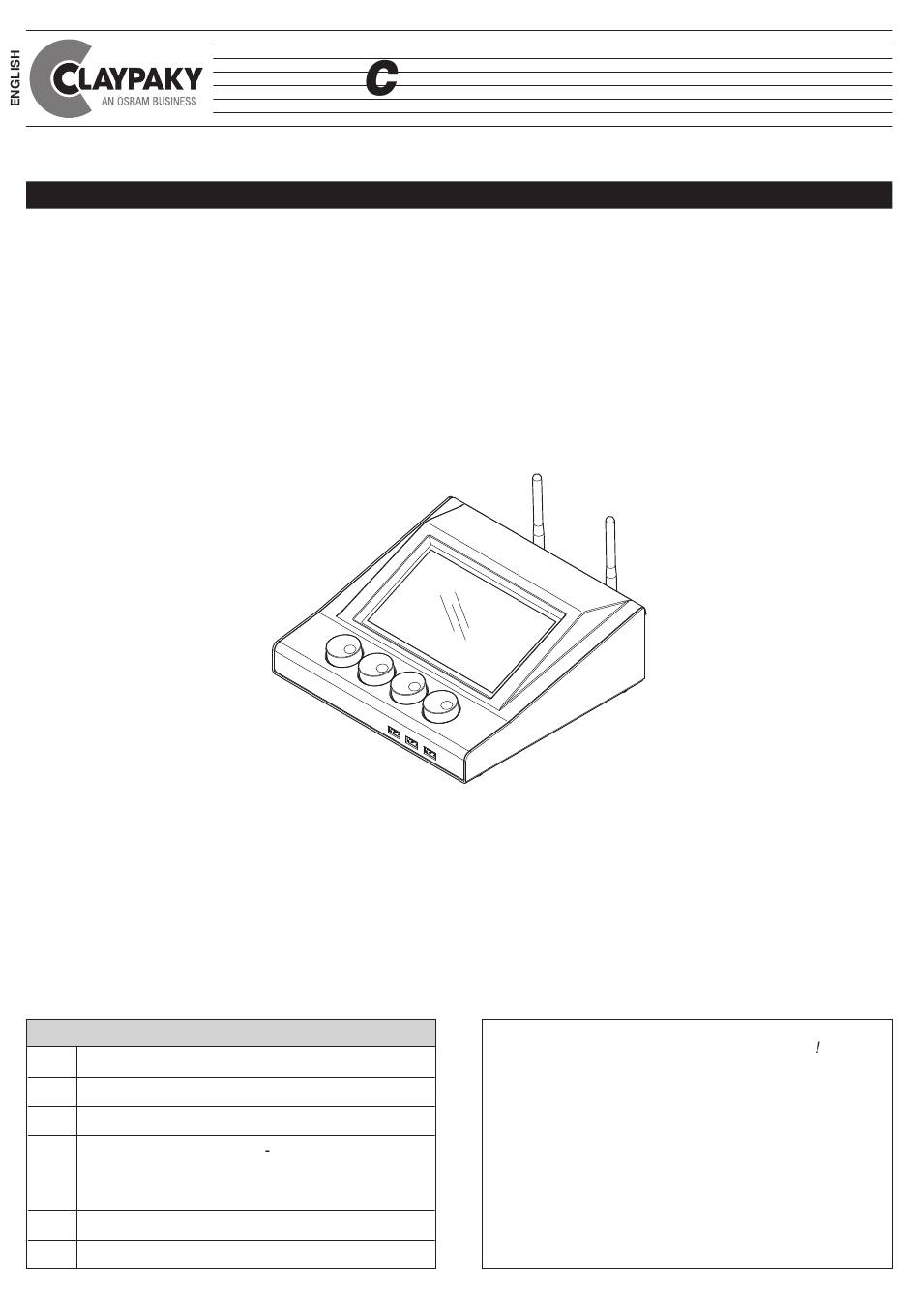

INSTRUCTION MANUAL
INDEX
loudIO
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
1
CA8000
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Claypaky CloudIO
Summary of Contents for Claypaky CloudIO
-
Page 1: Table Of Contents
We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best 3.1 Connecting to manis supply Installation and start up meet your expectations and requirements. -
Page 2: Safety Information
1. SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also SAFETY INFORMATION available in digital format at the following link: FIS01X - Safety Information CloudIO www.claypaky.com IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative... -
Page 3: Installation And Start Up
WiFi: used to connect the CloudIO Box to a local AP WiFi for Cloud Service Connection Ethernet 1: Fast Ethernet for Art-Net connection Ethernet 2: GbE to be used to connected the CloudIo Box to a local AP Ethernet for Cloud Service Connection Main Switch: used to power on/power off the CloudIO BOx... - Page 4 Entering in this tab the user can upload, through the dmx line, a firmware from an external storage device. Offline Firmware Uploader Entering in this tab, the user can configure all the CloudIO Box parameters as the connection and cloud settings. Settings...
- Page 5 DMX IN, to reach the lighting fixture connected on the DMX OUT. When the Cloudio Box is enabled, the DMX IN /DMX OUT digital short-cut is opened and the CloudIO BOx take the control of the Fixture as Master DMX/RDM device excluding any other master device connected on DMX IN.
- Page 6 - Fixture offline firmware uploader - external storage insertion This APP allows you to update the firmware of any Claypaky fixture. User can upload the ''.img file'' of the new firmware in the root of a USB KEY and press CONTINUE in order to activate the update procedure: all Claypaky lights connected to the DMX OUT output, if compatible with the firmware version present selected, will be updated to the new firmware version.
- Page 7 OFFLINE FIRMWARE UPLOADER FOR FIXTURES - Fixture offline firmware uploader – firmware files selection - Fixture offline firmware uploader – Uploading file selection loudIO...
- Page 8 OFFLINE FIRMWARE UPLOADER FOR FIXTURES - Fixture offline firmware uploader - update performed correctly loudIO...
- Page 9 SETTINGS CloudIO Box settings - home page CLOUDIO BOX – GENERAL INFO CloudIO box Settings - General information loudIO...
- Page 10 WIFI CloudIO box WiFI Settings – Network scanning SETTINGS_WIFI_INFO CloudIO box WiFI Settings – Network detailed info loudIO...
- Page 11 ETHERNET CloudIO box Ethernet Settings – Ethernet port settings loudIO...
- Page 12 CLOUD CloudIO box Cloud Settings - CloudIO pairing CloudIO box/User To pair your CloudIO BOx please register at cloudiobox.tech cloud service. Then enter here your CloudIO account e-mail and password. Ref to www.cloudiobox.tech to get info about the available Cloud Service information.
- Page 13 CloudIO SOFTWARE UPDATE - CloudIO Box Software Update - external storage insertion - CloudIO box Settings software update – CloudIO box firmware sending loudIO...
- Page 14 CloudIO SOFTWARE UPDATE - CloudIO box Settings software update – CloudIO box firmware update performed correctly loudIO...
-
Page 15: Specifications
4. SPECIFICATIONS (5.19") (10.04") (9.45") 100V-240V, 50/60Hz, 16W • Display lcd 7 inch + capacitive touch screen POWER SUPPLIES AVAILABLE MAIN FEATURES • Internal power supply • Digital switch / activation • 1.5 Kg (3.3 Ibs) • 2 Dmx in/out pass-through capability WEIGHT •... - Page 16 - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.com Clay Paky S.p.A.
