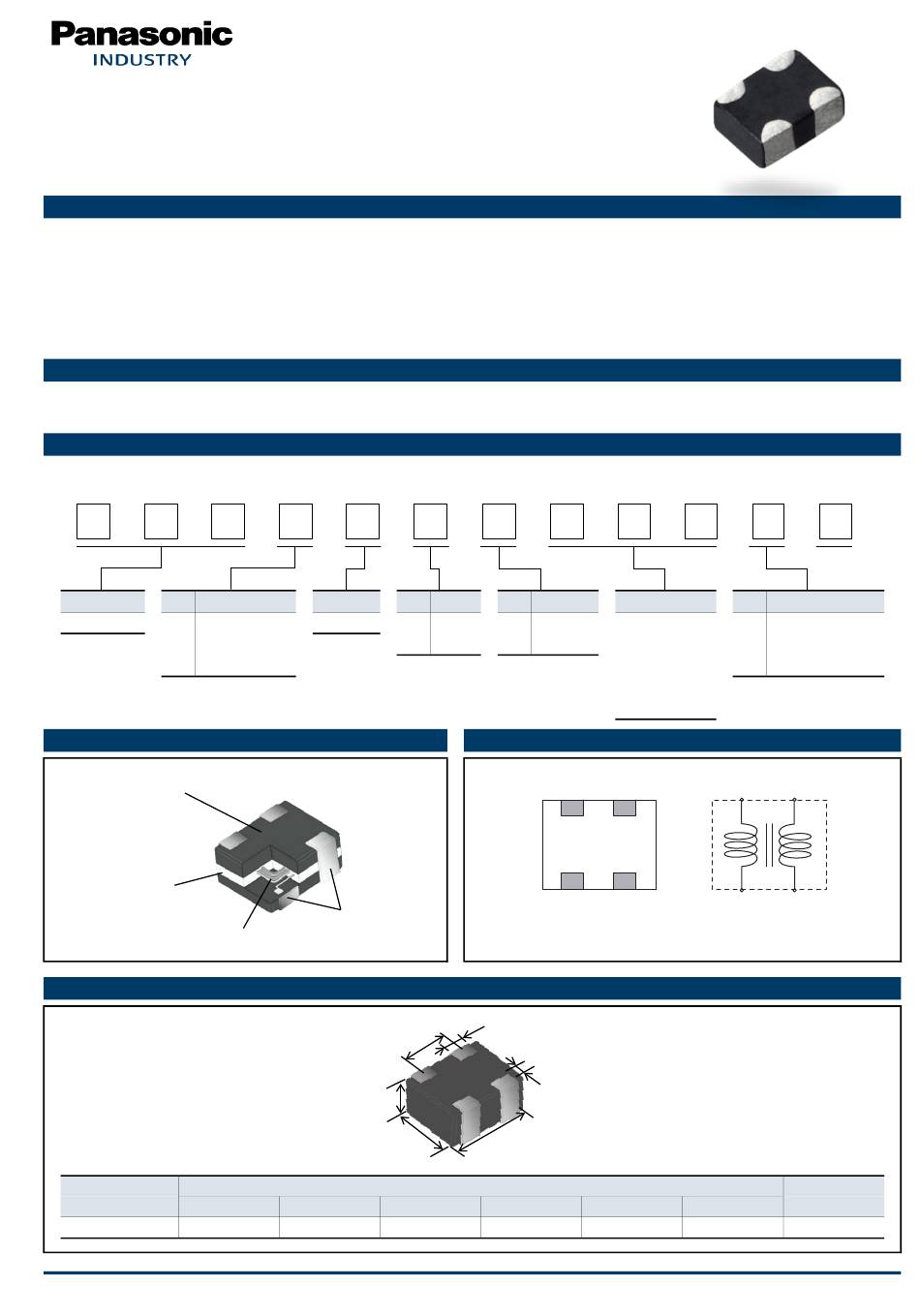

● Noise suppression of high-speed differential transmission lines with little influence of waveform rounding on signal transmission ● Low DC resistance and low insertion loss ● High-Q value and high impedance of GHz zone : EXC14CG type ● Strong multilayer/sintered structure, excellent reflow resistance and high mounting reliability ● RoHS compliant Recommended applications ●...
Page 2
EXC14CG type Ratings Impedance (Ω) at 100 MHz Rated voltage Rated current DC resistance Part number (V) DC (mA) DC (Ω) max. Common mode Differential mode EXC14CG120U 12 ± 30 % 10 max. EXC14CG350U 35 ± 30 % 15 max.
Page 3
Common Mode Noise Filters / Common perfomance Perfomance Test item Performance requirements Test conditions resistance Resistance Within specified tolerance 25 ℃ Overload ― Rated voltage Resistance to ±30 % (Impedance change) 260 ℃, 10 s soldering heat Rapid change of ±30 % (Impedance change)...
Page 4
■ The technical information contained in this catalog is intended to show only typical operation and application circuit examples of this product. This catalog does not guarantee that such information does not infringe upon the intellectual property rights of Panasonic or any third party, nor imply that the license of such rights has been granted.
Page 5
Matters to Be Observed When Using This Product Matters to Be Observed When Using This Product (Common mode noise filter) Use environments and cleaning conditions ■ This product (fixed resistor) is not designed for use in specific environments. Using the resistor in the following specific environments or service conditions may affect the performance/reliability of the resistor.
Matters to Be Observed When Using This Product Reliability and product life A capacitor conforming to "AEC-Q200" refers to a capacitor having passed some or all of evaluation test items defined in AEC-Q200. To know the detailed specifications of each capacitor or specific evaluation test scores, please contact us. We issue a delivery specification sheet for each product ordered.
