Summary of Contents for Bosch PRM-UST
- Page 1 PRM‑UST | PRM‑USTB User manual...
-
Page 3: Table Of Contents
Document history Product introduction Parts included Installation Indicators and connections 3.3.1 Front panel 3.3.2 Rear panel 3.3.3 Remote control Product function FM Tuner USB or SD Bluetooth Troubleshooting Technical data Remark: Bosch Security Systems B.V. TBA | draft | User manual... -
Page 4: Important Product Information
Warning! To prevent a shock hazard disconnect all power sources prior to system installation. 13. Only use recommended batteries and observe polarity. Risk of explosion if an incorrect type of battery is used. TBA | draft | Bosch Security Systems B.V. User manual... -
Page 5: Disposal Instructions
—Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Bosch Security Systems B.V. TBA | draft | User manual... -
Page 6: About This Manual
Notice of liability While every effort has been taken to ensure the accuracy of this document, neither Bosch Security Systems nor any of its official representatives shall have any liability to any person or entity with respect to any liability, loss or damage caused or alleged to be caused directly or indirectly by the information contained in this document. -
Page 7: Product Introduction

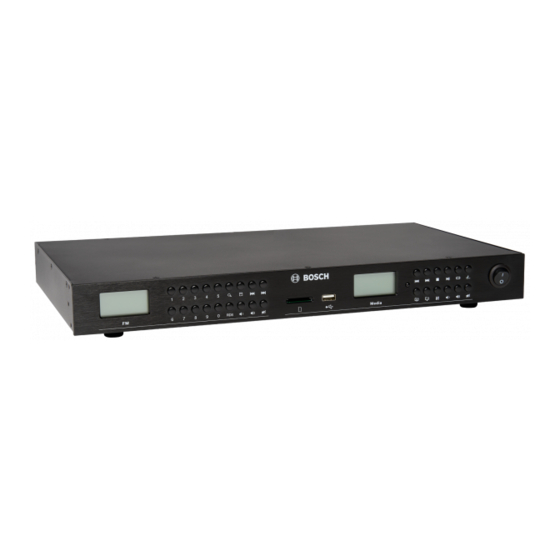

Product introduction | en Product introduction Bosch’s PRM-UST and PRM-USTB are professional multisource music players intended to be used as background music sources for public address and commercial audio applications. Both products have USB interface, SD card input for playing stored music files, and tuner for FM frequency band broadcast. -
Page 8: Indicators And Connections
Long press: fast backward Short press: next track Long press: fast forward Stop Play or pause Repeat a track or a list Media source selection from USB, SD or Bluetooth TBA | draft | Bosch Security Systems B.V. User manual... -
Page 9: Rear Panel
Note: Due to priority output function, when the media (USB, SD, Bluetooth) is active, the tuner audio output will be automatically muted Tuner output socket (stereo output) To connect the FM antenna (75 Ohm) Bosch Security Systems B.V. TBA | draft | User manual... -
Page 10: Remote Control
Display on/off for the selected music source Tone control Confirm selection Folder down Back to previous menu Short press: next track Long press: fast forward Short press: previous track TBA | draft | Bosch Security Systems B.V. User manual... - Page 11 Product introduction | en Number Description Long press: fast backward Play or pause Scan the FM radio stations Display shows the frequency for the stations while scanning is in progress Bosch Security Systems B.V. TBA | draft | User manual...
-
Page 12: Product Function
The USB or SD interface supports MP3 audio files stored on a USB flash memory device or an SD card up to 32 GB of exFAT or FAT32 file system. – Insert an SD card or an USB flash memory device TBA | draft | Bosch Security Systems B.V. User manual... - Page 13 . Refer to numbers 21 and 22 of Front panel, page 8 for – For tone control, press adjustment. This button toggles as follows: – press: EQ, to be previous or next. Bosch Security Systems B.V. TBA | draft | User manual...
-
Page 14: Bluetooth
If the device is already paired, the display will show Paired. Enable Bluetooth on your device (mobile phone, tablet, or computer). Select Bosch PRM-USTB from the list of discovered products. The display on the PRM-USTB shows Pairing. If the pairing is successful, the PRM-USTB display shows Paired. -
Page 15: Troubleshooting
SD cards, it is also possible to give good results. that the card has a different partition table than expected. Format not supported. MP3s are supported up to 320 kbps. MP3 tracks do not play. Bosch Security Systems B.V. TBA | draft | User manual... - Page 16 RCA output distorted or full of connectors. noise. Connectors or plugs are dirty. Wipe away dust or dirt and reinsert the plug. TBA | draft | Bosch Security Systems B.V. User manual...
-
Page 17: Technical Data
Unit mounting Stand-alone, 19" rack (19" wide, 1 U high) Unit color Black RAL 9005 Unit weight Approx. 3.6 kg Remote control dimensions (H x W x D) 20 x 52 x 156 mm (0.80 x 2.05 x 6.14 in) Remote control weight: (without batteries) 120 g Bosch Security Systems B.V. TBA | draft | User manual... -
Page 18: Remark
3. The product shall be connected to a USB interface of version USB2.0 or higher. Hereby, Bosch Security Systems B.V declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states. - Page 19 Technical data | Bosch Security Systems B.V. TBA | draft | User manual...
- Page 20 | Technical data TBA | draft | Bosch Security Systems B.V. User manual...
- Page 22 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2021 202108131728...
