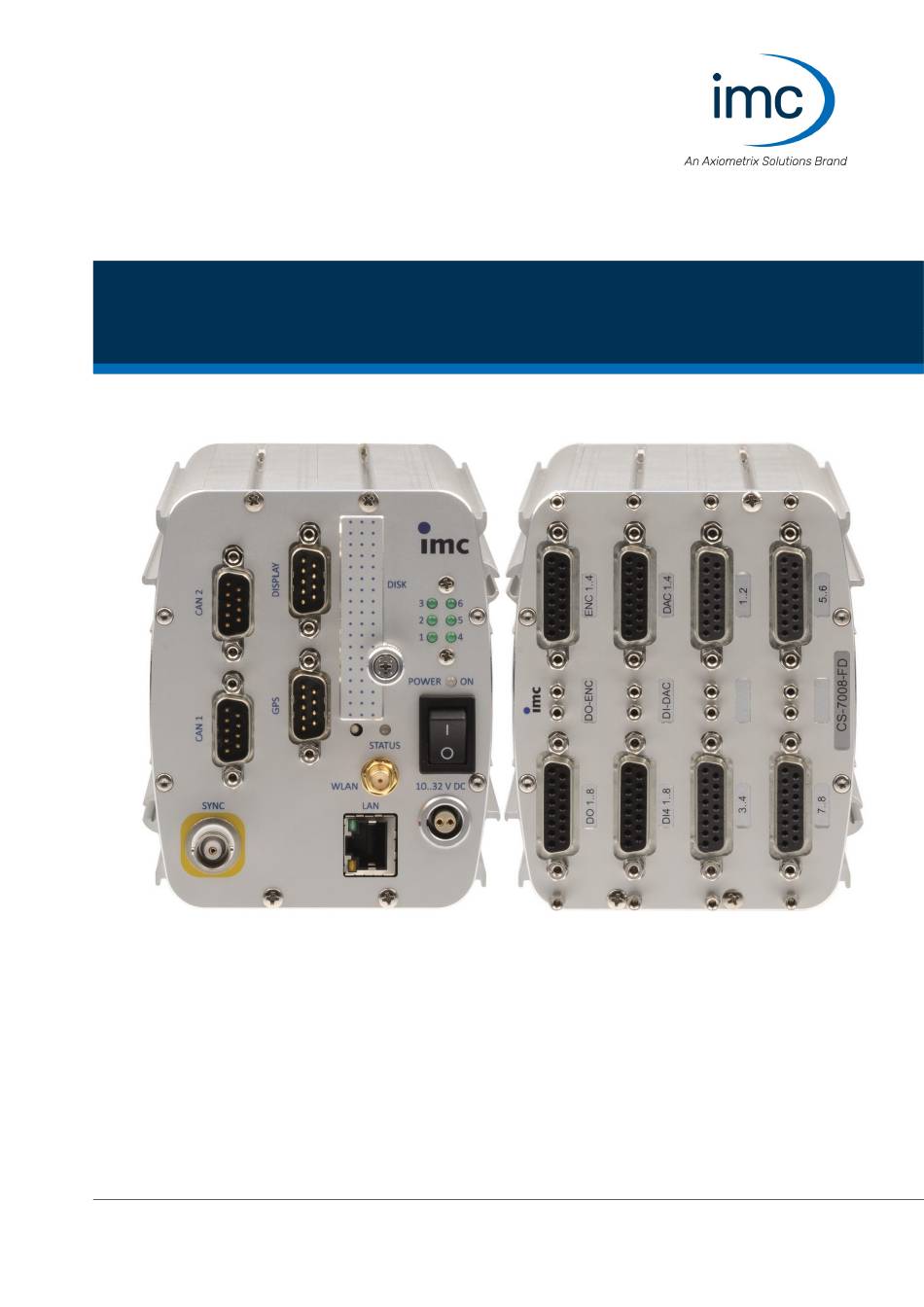

- Page 1 imc C-SERIES Getting Started Edition 10 - 2023-10-23 © 2023 imc Test & Measurement GmbH imc Test & Measurement GmbH • Voltastr. 5 • 13355 Berlin • Germany...
- Page 2 Disclaimer of liability The contents of this documentation have been carefully checked for consistency with the hardware and software systems described. Nevertheless, it is impossible to completely rule out inconsistencies, so that we decline to offer any guarantee of total conformity. We reserve the right to make technical modifications of the systems.
- Page 3 Notes regarding this document This document is an excerpt from the manual of the device / the module. This document provides important notes on using the device / the module. Safe working is conditional on compliance with all safety measures and instructions provided. The manual is to be used as a kind of reference book.
-
Page 4: Table Of Contents
Table of contents Table of contents 1 General introduction ....................5 1.1 imc Customer Support / Hotline ....................5 1.2 Legal notices ........................... 5 1.3 Explanation of symbols ........................8 1.4 Last changes in content ........................9 2 Safety ........................10 3 Assembly and connection .................. -
Page 5: General Introduction
imc Customer Support / Hotline Chapter 1 1 General introduction 1.1 imc Customer Support / Hotline If you have problems or questions, please contact our Customer Support/Hotline: imc Test & Measurement GmbH Hotline (Germany): +49 30 467090-26 E-Mail: hotline@imc-tm.de Internet: https://www.imc-tm.com International partners For our international partners see https://www.imc-tm.com/imc-worldwide/. - Page 6 Legal notices Chapter 1 Guarantee Each device is subjected to a 24-hour "burn-in" before leaving imc. This procedure is capable of detecting almost all cases of early failure. This does not, however, guarantee that a component will not fail after longer operation. Therefore, all imc devices are granted liability for a period of two years.
- Page 7 Legal notices Chapter 1 FCC-Notice This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 8: Explanation Of Symbols
Explanation of symbols Chapter 1 1.3 Explanation of symbols CE Conformity see CE chapter 1.2 No household waste Please do not dispose of the electrical/electronic device with household waste, but at the appropriate collection points for electrical waste, see also chapter 1.2 Potential compensation Connection for potential compensation... -
Page 9: Last Changes In Content
Explanation of symbols Chapter 1 RoHS of the PR China The limits for hazardous substances in electrical/electronic equipment applicable in the PRC are identical to those in the EU. The restrictions are complied with (see chapter 1.2 ). A corresponding "China-RoHS" label is omitted for formal/economic reasons. Instead, the number in the symbol indicates the number of years in which no hazardous substances are released. -
Page 10: Safety
Chapter 2 2 Safety This section provides an overview of all important aspects of protection of the users for reliable and trouble-free operation. Failure to comply with the instructions and protection notes provided here can result in serious danger. Responsibility of the operator Devices of the imc C-SERIES are for use in commercial applications. - Page 11 Chapter 2 Special hazards This segment states what residual dangers have been identified by the hazard analysis. Observe the safety notes listed here and the warnings appearing in subsequent chapters of this manual in order to reduce health risks and to avoid dangerous situations.
- Page 12 Chapter 2 Observe notes and warnings Devices from imc have been carefully designed, assembled and routinely tested in accordance with the safety regulations specified in the included certificate of conformity and has left imc in perfect operating condition. To maintain this condition and to ensure continued danger-free operation, the user should pay particular attention to the remarks and warnings made in this chapter.
-
Page 13: Assembly And Connection
After unpacking... Chapter 3 3 Assembly and connection 3.1 After unpacking... Check the delivered system immediately upon receiving it for completeness and for possible transport damage. In case of damage visible from outside, proceed as follows: · Do not accept the delivery or only accept it with reservations ·... -
Page 14: Notes On Connecting
Notes on connecting Chapter 3 3.3 Notes on connecting 3.3.1 Precautions for operation Certain ground rules for operating the system, aside from reasonable safety measures, must be observed to prevent danger to the user, third parties, the device itself and the measurement object. These are the use of the system in conformity to its design, and the refraining from altering the system, since possible later users may not be properly informed and may ill-advisedly rely on the precision and safety promised by the manufacturer. -
Page 15: Power Supply
Notes on connecting Chapter 3 3.3.2 Power supply Each device is powered by a DC-supply voltage which is supplied via a 2-pin LEMO-plug. Type designation LEMO plug: Device LEMO plug type designation Size FGG.1B.302 CLAD 52ZN middle FGG.0B.302 CLAD 52ZN small The permissible supply voltage range is 10 ... -
Page 16: Grounding, Shielding
Notes on connecting Chapter 3 3.3.3 Grounding, shielding In order to comply with Part 15 of the FCC-regulations applicable to devices of Class B, the system must be grounded. 3.3.3.1 Devices with non-isolated power supply CS devices The DC-supply input on the device itself (LEMO-socket) is not galvanically isolated from the housing (CHASSIS): -SUPPLY input is galvanically connected to CHASSIS internally. - Page 17 Notes on connecting Chapter 3 3.3.3.4 Grounding with power supplied by a car battery imc CL Devices with isolated DC-supply (e.g. battery) If the power supply (e.g. car battery) and the measurement device are at different voltage levels, then if they were connected by the supply line, it would cause a ground loop.
-
Page 18: Potential Difference With Synchronized Devices
Notes on connecting Chapter 3 3.3.3.5 Shielding Also, all signal leads to the device must be shielded and the shielding grounded (electric contact between the shielding and the plug housing "CHASSIS"). To avoid compensation currents, always connect the shielding to one side (potential) only.If the imc DSUB block screw terminal plug is used, the shielding should be connected to the pull-relief clamp on the cable bushing. -
Page 19: Main Switch
Notes on connecting Chapter 3 3.3.6 Main switch The main switch of all CS-devices takes the form of a flip switch. The main switch of the CL-devices takes the form of a rocker switch, which activates the device when it is tipped for approx. -
Page 20: Ups
Notes on connecting Chapter 3 3.3.8 UPS Devices with DC supply input are equipped with an uninterruptible power supply (UPS). This allows for a continuous operation unaffected by temporary short-term outage of the main power supply. This type of operation is particularly useful for operation in a vehicle, permanently attached to starter lock and main power switch and thus not requiring manual control. -
Page 21: Removable Storage
Notes on connecting Chapter 3 3.3.10 Removable storage For saving measured data, all imc devices support a removable storage medium. The slot for the CF removable memory is located on the front of the devices, see adjacent figure. Removing the removable memory when the device is switched on If you remove the removable storage without notice, defective clusters may result. -
Page 22: Signal Connection
Notes on connecting Chapter 3 3.3.11 Signal connection For devices with DSUB-15 connection technology, the convenient imc terminal plugs for solderless screw terminal connection are available as optional accessories. ACC/DSUBM-xxx: snap the nose into the slot Open the Metal plug: 1. -
Page 23: Maintenance And Servicing
Maintenance and servicing Chapter 4 4 Maintenance and servicing 4.1 Maintenance and servicing imc recommends performing a service check every 12 months. An imc service check includes system maintenance in accordance with the service interval plan as specified by the manufacturer and a complete function test (maintenance, inspection and revision). -
Page 24: Start Of Operation Software / Firmware
Installation - Software Chapter 5 5 Start of operation Software / Firmware 5.1 Installation - Software The associated measurement engineering software imc STUDIO, the configuration and operating interface for all imc instruments, provides the devices with exceedingly versatile functionality. It achieves comprehensive total solutions for everything from laboratory tests through mobile data logger application all the way to complete industrial test stations. -
Page 25: Connecting Via Lan In Three Steps
Connect the device Chapter 5 In very demanding applications, you might consider grouping multiple GBit Ethernet devices via even higher- performance sections lines of the network (e.g. via 5 GBit Ethernet) and to connect these groups to NAS-components, for instance, via these lines. When such imc devices are included which use network-based PTP-synchronization (e.g. CRXT or CRFX-2000GP), then it is necessary to use network switches which fully support this protocol on the hardware side. - Page 26 Connecting via LAN in three steps Chapter 5 Once the dialog starts, the system automatically searches for all devices in the network. In the tree diagram, all available devices are indicated. If the device If there is any IP-conflict, appears among the group "Currently not reachable" ①, it is necessary to modify devices affected will not the device's LAN-settings.
- Page 27 Connecting via LAN in three steps Chapter 5 If there is a direct connection between the device and the PC by a cable, then DHCP should not be used. In order to apply the changes, click on the button "Apply". Wait for the device to restart and then close the dialog.
-
Page 28: Firmware Update
Firmware update Chapter 5 5.4 Firmware update Every software version comes with matching firmware for the hardware. The software only works with devices having the right firmware. Once the program connects up with the unit, the device's firmware is checked. If the software version doesn't match the device's firmware version, you are asked if you want to perform a firmware-update. - Page 29 Firmware update Chapter 5 The following symbols for the individual firmware components appear in the list: Symbols not current firmware conforms to current standards error occurred during update procedure — this option is not available on the device If no status indicators are displayed, no connection could be made to the corresponding device. The duration of the update depends on the number of amplifiers (can last up to several minutes).
- Page 30 Firmware update Chapter 5 Warning Be sure to observe in case of error · For a variety of reasons, the firmware update sometimes does not conclude properly, for example due to interruption of the power supply. For instance, the "handshake signal" at the end of the procedure may be missing.
-
Page 31: Pin Configuration
Chapter 6 6 Pin configuration © 2023 imc Test & Measurement GmbH imc C-SERIES - Getting Started, Edition 10 - 2023-10-23 Page 31... - Page 32 Chapter 6 © 2023 imc Test & Measurement GmbH imc C-SERIES - Getting Started, Edition 10 - 2023-10-23 Page 32...
-
Page 33: Dsub-15 Pin Configuration
DSUB-15 pin configuration Chapter 6 6.1 DSUB-15 pin configuration The Standard plug is a 1:1 DSUB-15 to screw terminal adapter. It can be used for all modules which come with the corresponding pin configuration. The Special plugs do not offer direct adaption from the DSUB pins to the screw terminals, but instead come with extra functions: ·... -
Page 34: Universal Plug
DSUB-15 pin configuration Chapter 6 In general: DSUB pin 1 is internally reserved. 6.1.1 Universal plug Metal plug ACC/DSUBM- UNI2 DSUB Terminal UNIVERSAL +VB1 -VB1 The abbreviation VB stands for the +IN1 bridge sensor supply and can be -IN1 equated with the sensor supply, I1_1/4B1 abbreviation: SUPPLY. -
Page 35: Special Plug
DSUB-15 pin configuration Chapter 6 In general: DSUB pin 1 is internally reserved. Metal plug ACC/DSUBM- ENC4, ENC4-IU DI4-8 DO-8 DAC4 DSUB Terminal INC.-ENCODER DIGITAL IN DIGITAL OUT ANALOG OUT +INA +IN1 BIT1 -INA +IN2 BIT2 DAC1 +INB +IN3 BIT3 AGND -INB +IN4... -
Page 36: Teds Plug
DSUB-15 pin configuration Chapter 6 6.1.4 TEDS plug ACC/DSUBM-TEDS- UNI2 ACC/DSUBM-TEDS- DSUB DSUB Terminal UNIVERSAL Terminal BRIDGE VOLTAGE +VB1 +VB1 (RES.) -VB1 +IN1 +IN1 +IN1 -IN1 -IN1 -IN1 -VB1 (+SUPPLY) I1_1/4B1 [+SENSE1_1/4B1] +IN2 -SENSE1 -SENSE1 -IN2 +VB2 (-SUPPLY) +IN2 -IN2 +IN2 +IN3 I2_1/4B2... -
Page 37: Pin Configuration Of The Remote Socket (Female)
Pin configuration of the REMOTE socket (female) Chapter 6 6.2 Pin configuration of the REMOTE socket (female) Please see the pinout in the chapter: Remote control of the CL main switch. 6.3 DSUB-9 pin configuration 6.3.1 Display DSUB-PIN Signal Description Use in device connected Vcc 5V... -
Page 38: Can Fd
DSUB-9 pin configuration Chapter 6 6.3.3 CAN FD DSUB-PIN Signal Description Use in device +CAN_SUPPLY optional supply unused as per standard* (supply I < 1 A) CAN_L dominant low bus line connected CAN_GND CAN Ground connected reserved do not connect -CAN_SUPPLY optional supply unused as per standard*... - Page 39 DSUB-9 pin configuration Chapter 6 Power consumption reserves: · This design guarantees a current of 1 A per node (up to 70°C). In addition, the PTC fuse then slowly starts limiting the current and "disconnecting" the loads. The generally low consumption of the CANSAS modules should not be underestimated, since the power is achieved by the current at a low supply voltage.
-
Page 40: Index
Index GPS-receiver Index DSUB-9 pin configuration Grounding Guarantee 5, 6 ACC/DSUB-ICP2 ACC/DSUB-ICP4 ACC/DSUBM-B2 Hotline ACC/DSUBM-I2 ACC/DSUBM-I4 ACC/DSUBM-T4 imc STUDIO operating system ACC/DSUBM-U4 Industrial safety ACC/DSUBM-UNI2 Industrial safety regulation Add device Installation imc STUDIO Cables IP address configure Power via CAN of the devices of the PCs CAN-Bus pin configuration ISO-9001... - Page 41 Index Service Service form Service: Hotline Shielding Software installation Special hazards Storage System requirements Telephone numbers: Hotline Transport uninterruptible power supply Warranty Waste on Electric and Electronic Equipment WEEE Restriction of Hazardous Substances © 2023 imc Test & Measurement GmbH imc C-SERIES - Getting Started, Edition 10 - 2023-10-23 Page 41...
