Installation AND OPERATING INSTRUCTIONS
A RICHTECH INDUSTRIES PRODUCT
SSBOS34
READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL BEFORE USING THIS PRODUCT.
Save these instructions for future reference. Failure to read and follow the warnings and instructions
within this instruction manual could result in property damage, serious injury or death.
15'
L I F T
10'
L I F T
5'
L I F T
Power Supply Requirements
Liquid Temperature Range
Circuit Requirements
Pump Dimensions
Minimum Basin Diameter
IMPORTANT!

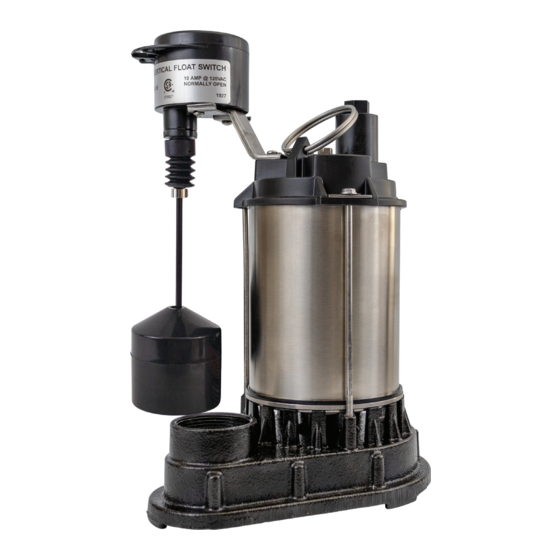

STAINLESS STEEL
SUBMERSIBLE
SUMP PUMP
PUMP PERFORMANCE
3174
GALLONS/HR
3702
GALLONS/HR
4134
GALLONS/HR
SPECIFICATIONS
120 VAC, 60Hz
Motor
Single Phase – Insulating Oil Filled
Horsepower
3/4 HP
Amp Rating
5.2 Amps
40°F to 120°F
15 Amp (Minimum)
11" High x 8-3/4" Base
Discharge
1-1/2" NPT
10" Diameter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pit Boss 3174
Summary of Contents for Pit Boss 3174
- Page 1 STAINLESS STEEL SUBMERSIBLE SUMP PUMP INSTALLATION AND OPERATING INSTRUCTIONS A RICHTECH INDUSTRIES PRODUCT PUMP PERFORMANCE 3174 GALLONS/HR L I F T 3702 GALLONS/HR L I F T 4134 GALLONS/HR L I F T SPECIFICATIONS Power Supply Requirements 120 VAC, 60Hz Motor Single Phase –...
- Page 2 SAFETY FIRST! This instruction manual contains very important information for you to know and understand. This information is provided for your safety and to help prevent equipment problems from occurring. Please observe all safety information labeled danger, warning, caution, and notice. WARNING INDICATES POTENTIALLY...
- Page 3 TROUBLESHOOTING CAUTION! Always disconnect the pump from the electrical power source BEFORE handling or servicing. PROBLEM POTENTIAL CAUSE POSSIBLE SOLUTION Pump Will Not Run 1. Blown fuse, tripped breaker or tripped GFCI 1. Check all electrical connections. Check for blown fuses, tripped 2.
