Installation AND OPERATING INSTRUCTIONS
A RICHTECH INDUSTRIES PRODUCT
SSBOS34
READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL BEFORE USING THIS PRODUCT.
Save these instructions for future reference. Failure to read and follow the warnings and instructions
within this instruction manual could result in property damage, serious injury or death.
15'
L I F T
10'
L I F T
5'
L I F T
Power Supply Requirements
Liquid Temperature Range
Circuit Requirements
Pump Dimensions
Minimum Basin Diameter
IMPORTANT!

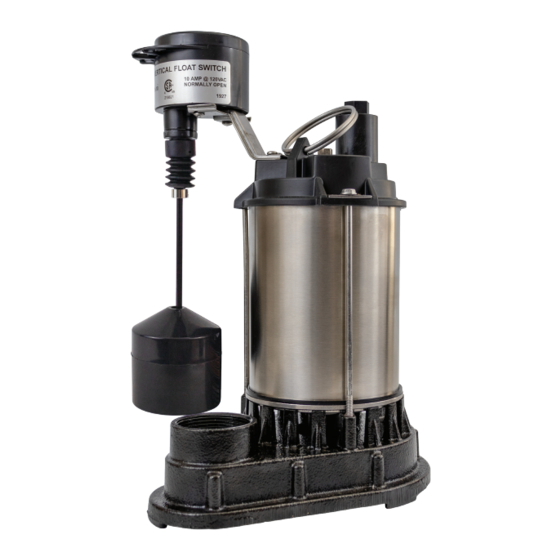

STAINLESS STEEL
SUBMERSIBLE
SUMP PUMP
PUMP PERFORMANCE
3174
GALLONS/HR
3702
GALLONS/HR
4134
GALLONS/HR
SPECIFICATIONS
120 VAC, 60Hz
Motor
Single Phase – Insulating Oil Filled
Horsepower
3/4 HP
Amp Rating
5.2 Amps
40°F to 120°F
15 Amp (Minimum)
11" High x 8-3/4" Base
Discharge
1-1/2" NPT
10" Diameter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pit Boss SSBOS34
Summary of Contents for Pit Boss SSBOS34
- Page 1 Horsepower 3/4 HP Amp Rating 5.2 Amps Liquid Temperature Range 40°F to 120°F Circuit Requirements 15 Amp (Minimum) SSBOS34 Pump Dimensions 11” High x 8-3/4” Base Discharge 1-1/2” NPT Minimum Basin Diameter 10” Diameter IMPORTANT! READ ALL INSTRUCTIONS CONTAINED IN THIS MANUAL BEFORE USING THIS PRODUCT.
- Page 2 SAFETY FIRST! This instruction manual contains very important information for you to know and understand. This in- formation is provided for your safety and to help prevent equipment problems from occurring. Please observe all safety information labeled danger, warning, caution, and notice. WARNING INDICATES POTENTIALLY...
- Page 3 INSTALLATION Set the pump on a solid, level surface in the bottom of the sump pit. If necessary, use bricks / blocks to provide a solid base. Avoid placing the pump on loose gravel, earth or sand. Install discharge plumbing according to state and local codes. It is highly recommended that rigid PVC is used for the discharge line.
- Page 4 A RICHTECH INDUSTRIES PRODUCT A RICHTECH INDUSTRIES PRODUCT 34000 LEAR INDUSTRIAL PARKWAY AVON, OH 44011 | RICHTECHINDUSTRIES.COM | 800.677.7791 Richtech Industries Five Year Limited Warranty Richtech Industries (“Richtech”) offers this five (5) year limited warranty as the only warranty, express or implied regarding Richtech’s PitBoss 3/4 hp Sump Pump and is a five year limited warranty against defects in workmanship and material only.
