- Page 1 Assembly and operating instructions GB/en EASYLAB CP-Touch 4.3 control panel Touch panel for fume cupboard control and room control...
- Page 2 TROX GmbH Heinrich-Trox-Platz 47504 Neukirchen-Vluyn Germany Telephone: +49 2845 202-0 Fax: +49 2845 202 265 Email: trox-de@troxgroup.com Internet: www.troxtechnik.com Installation and operating instructions (translation of the original) A00000086804, 2, GB/en 10/2023 © TROX GmbH 2021 EASYLAB CP-Touch 4.3 control panel...
-
Page 3: Table Of Contents
Functional description......13 Technical data.......... 15 Operation..........15 Structure of the graphical interface.... 16 Basic functions........... 23 Operating states......... 25 Fume cupboard control trouble- shooting............ 27 Room control troubleshooting....29 Removal and disposal......32 Index............33 EASYLAB CP-Touch 4.3 control panel... -
Page 4: Control Panel Overview

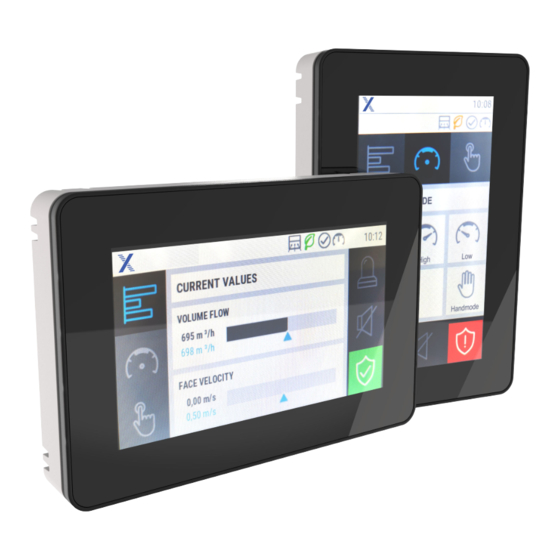

Control panel overview Control panel overview Fig. 1: CP-Touch 4.3 control panel 4.3" touch panel Interface X1, for EASYLAB and TROX UNI- Service socket VERSAL CONTROLLER Casing mounting base Interface X2, for X-Aircontrol Interface X3, for FSL-Control III EASYLAB CP-Touch 4.3 control panel... -
Page 5: General Information
TROX GmbH, these are Product data sheets for control systems the regulations in section "Vl. Warranty claims" – EASYLAB CP-Touch 4.3 control panel of the Delivery Terms of TROX GmbH, see www.trox.de/en/. – EASYLAB controller TCU3 –... - Page 6 CAUTION! Potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE! Potentially hazardous situation which, if not avoided, may result in property damage. ENVIRONMENT! Environmental pollution hazard. EASYLAB CP-Touch 4.3 control panel...
-
Page 7: Safety
Correct use outdoors The CP-Touch 4.3 control panel serves as a com- ponent of the EASYLAB system for the display of in wet areas values and for activating various functions. in areas with potentially explosive atmospheres ... -
Page 8: Delivery And Storage
Installation and operating manual Carrying the control panel If possible, take the product in its transport packaging up to the installation location. Do not remove the protective wrapping until just before installation. EASYLAB CP-Touch 4.3 control panel... -
Page 9: Installation And Connection
Then pull off the display on the opposite side as well. Remove display carefully. If the control panels are already connected, disconnect the connecting cable before removing them. Fig. 3: Mounting example horizontal on concealed socket EASYLAB CP-Touch 4.3 control panel... -
Page 10: Connecting The Control Panel To The Easylab System
Installation and connection Connecting the control panel to the EASYLAB system Fig. 4: Mounting example vertical on concealed Fig. 5: Connection of TCU3 controller or TROX socket adapter module Fix the casing mounting base to the fume Connect the control panel to either ter- cupboard or the wall with 2-4 screws. -
Page 11: Commissioning
Fig. 8: Connection with configuration adapter and EasyConnect configuration software is installed. BlueCON Bluetooth adapter To connect the control panel to the computer, you need the configuration adapter and one of the fol- lowing components: EASYLAB configuration cable EASYLAB CP-Touch 4.3 control panel... - Page 12 Enabling the function button for manual control and many other functions Fig. 9: PC with EasyConnect software The EasyConnect configuration software provides a commissioning wizard that guides you in making project-specific adjustments: EASYLAB CP-Touch 4.3 control panel...
-
Page 13: Functional Description
Functional description Functional description Fig. 10: EASYLAB system structure with laboratory and room control The CP-Touch 4.3 control panel is used to display and control the ventilation and safety-related functions of a fume cupboard or a room control system. Users obtain information regarding the condition of the fume cupboard or room, depending on controller types, and can select among various operating modes and functions. - Page 14 EasyCon- Ä Chapter management function. For details see nect configuration software. For this, you can use 9.3 ‘Operating states’ on page 25. the EASYLAB configuration cable or the BlueCON Bluetooth adapter. EASYLAB CP-Touch 4.3 control panel...
-
Page 15: Technical Data
Temperature range for storage -10 to 70 °C Humidity 90% rh, no condensation Protection level IP 20 CE conformity EMC Directive 2014/30/EU, RoHS 2011/65/EU Weight 300 g Alarm sounder Beeper Casing ABS UL/ V0 Colour RAL9005 / RAL7035 EASYLAB CP-Touch 4.3 control panel... -
Page 16: Operation
Display and specification of operating modes Fig. 12: CP-Touch 4.3 horizontal orientation Additional functions Displaying and setting timer pro- grammes Settings for CP-Touch 4.3 Fig. 13: CP-Touch 4.3 vertical orientation Status area Main menu Submenu Alarm area EASYLAB CP-Touch 4.3 control panel... - Page 17 Activation of increased operation; the minimum volume flow stored in the room controller with room management function for increased operation is controlled and the operating mode is passed on to the connected EASYLAB. The latter handles these according to their settings. Reduced operation...
- Page 18 If a user attempts to change the operating mode on the control panel, the active operating mode will blink briefly. EASYLAB CP-Touch 4.3 control panel...
- Page 19 Fume cupboard Room con- troller with RMF Switching an optionally connected light source. Fume cupboard controller: Opening the sash Room controller: Opening the shading Fume cupboard controller: Closing the sash Room controller: Closing the shading EASYLAB CP-Touch 4.3 control panel...
- Page 20 Values can be shown or hidden for overview and selection of different units. Password-protected functions Some functions of the control panel are password-protected to protect them from unauthorised access. The password cannot be changed or deselected. The password must be entered for configuration: Password: 4261 EASYLAB CP-Touch 4.3 control panel...
- Page 21 - Function selected/active Manual control grey - Function not selected, can be selected Automatic mode – high priority General displays status area Operating mode Icon Description Standard mode Reduced operation Increased operation Shut-off OPEN position EASYLAB CP-Touch 4.3 control panel...
- Page 22 Room is not functionally reliable – Room pressure too low (with active room pressure control) This function allows the user to turn off the acoustic alarm when it occurs. Alarm list with all present messages: Error message Alarm message EASYLAB CP-Touch 4.3 control panel...
-
Page 23: Basic Functions
If the volume flow rate exceeds the setpoint, the To select a new operating mode directly (without status is displayed in yellow. first deactivating the previous function), just press the corresponding icon. Inform a technician. EASYLAB CP-Touch 4.3 control panel... - Page 24 Fig. 17: Timer – The settings for the timer are not synchron- ised between the EASYLAB controllers. Fig. 18: Timer – Setting In the ‘Setting’ menu, the timer can be activated and the grouping of the weekdays can be defined to make the input easier.
-
Page 25: Operating States
SC Automatic sash device Error message related to the automatic sash device. Test function Testing has been triggered by the configuration software and is active, e.g. actuator test. EASYLAB CP-Touch 4.3 control panel... - Page 26 The door contact of the internal pressure control loop is acti- vated. The differential pressure control is influenced according Door contact to the configuration. EASYLAB CP-Touch 4.3 control panel...
-
Page 27: Fume Cupboard Control Troubleshooting
Activate the terminal resistors using a switch on the EASYLAB TCU3 main PCB. RMF configura- The room management function Activate the RMF on a controller. tion has not been activated on any of the controllers. - Page 28 Fume cupboard control troubleshooting Faults related to the EASYLAB controller TCU3 No. Fault descrip- Cause Remedy tion 24 V under- The supply voltage is too low. The sensors Check the power supply to the voltage and actuators are no longer supplied with suf- system.
-
Page 29: Room Control Troubleshooting
An active terminal resistor is required the communica- been terminated properly. at each end of the communication tion cable cable. Activate the terminal resistors using a switch on the EASYLAB TCU3 main PCB. EASYLAB CP-Touch 4.3 control panel... - Page 30 Consolidated alarm from the room – category 3: Hardware Check error on one of the devices on the communication cable. devices. Faults related to the EASYLAB controller TCU3 No. Fault description Cause Remedy 24 V undervoltage The supply voltage is too low. The Check the power supply to the system.
- Page 31 CP memory A hardware error occurred while the internal If the error occurs again, memory was being accessed. replace the control panel. EASYLAB CP-Touch 4.3 control panel...
-
Page 32: Removal And Disposal
Pull out connecting cables. Disposal If no return or disposal agreement is in place, any disassembled components should be recycled: Have electronic waste and electronic com- ponents disposed of by an approved spe- cialist disposal company. EASYLAB CP-Touch 4.3 control panel... -
Page 33: Index
Fume cupboard control faults Alarm messages........... 27 Technical data............. 15 Configuration faults........27 Transport............... 8 Control panel faults........28 Faults of the controller........28 Volume flow rate warning........23 Functional description......... 13 Warranty claims............ 5 Incorrect use............7 EASYLAB CP-Touch 4.3 control panel...
