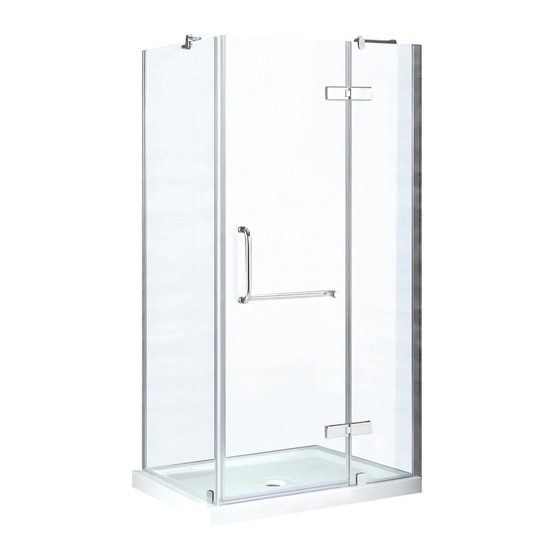

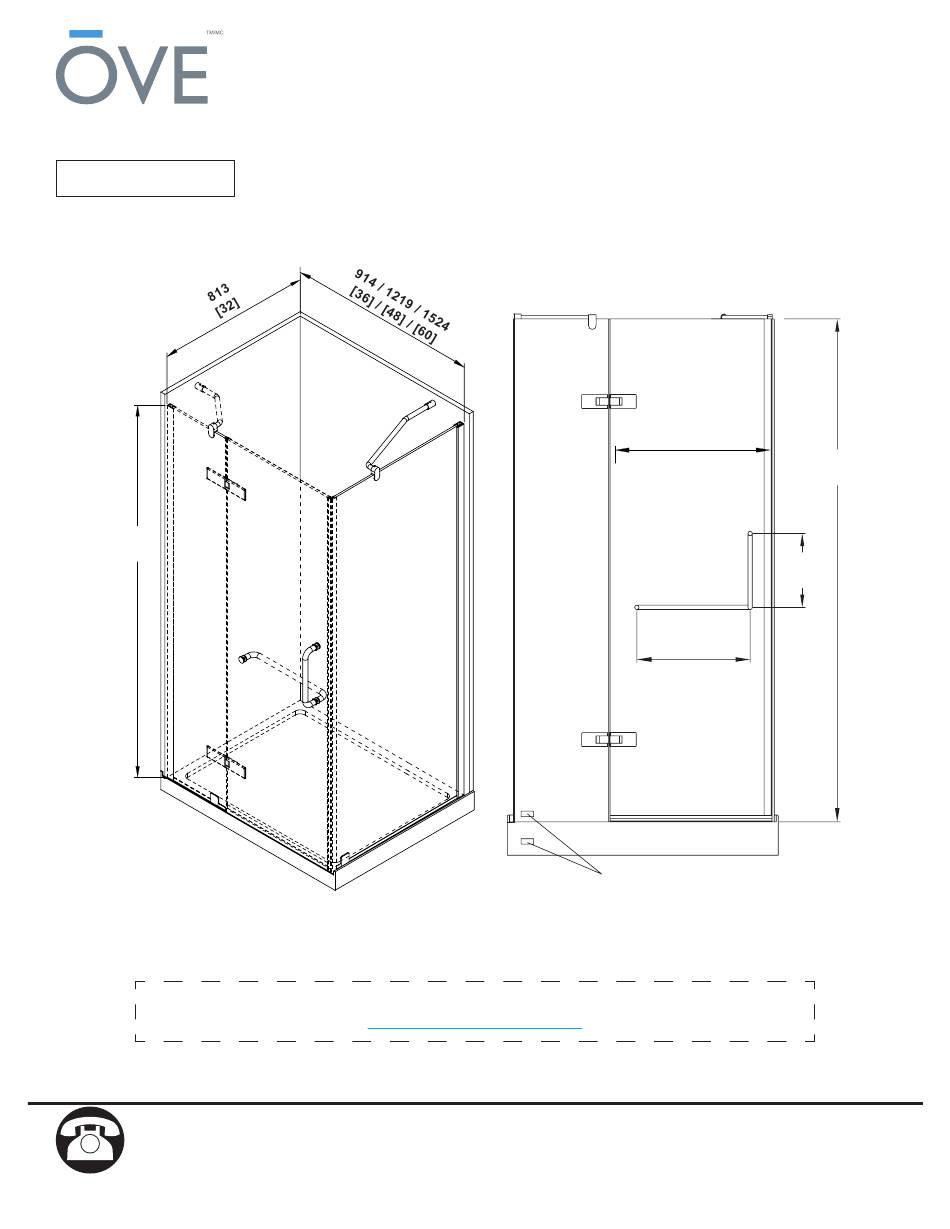

SHELBY SIDE PANEL 32
ITEM #667456
Measures: millimeter [inch]
Opening
520 / 560
[20 1/2] / [22 1/32]
1877
[73 27/32]
1877
[73 27/32]
275
[10 13/16]
425
[16 3/4]
CSA Markings
An installation video guide can be found on our Youtube channel.
http://youtu.be/SmU4rY7Kmtg
Purchase date: _________________________
Product Tracking Reference: ________________________
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
2800 Etienne Lenoir, Laval
2016-03-04
1
Quebec H7R 0A3 Canada

Advertisement

Table of Contents
loading

Summary of Contents for OVE SHELBY SIDE PANEL 32

  • Page 1 SHELBY SIDE PANEL 32 ITEM #667456 Measures: millimeter [inch] Opening 520 / 560 [20 1/2] / [22 1/32] 1877 [73 27/32] 1877 [73 27/32] [10 13/16] [16 3/4] CSA Markings An installation video guide can be found on our Youtube channel.
  • Page 2 SAFETY INFORMATION CAUTION Please carefully read the following important safety information before handling or installing this shower. There is a risk of serious injury while handling this product. To minimize these risks, please note: • Always wear safety glasses and gloves while handling. • Always read and follow all the steps in the installation instructions.
  • Page 3: Table Of Contents

    TABLE OF CONTENT PACKAGE CONTENT............................5 HARDWARE CONTENT............................6 TOOLS REQUIRED............................. 6 SHOWER REVERSIBILITY..........................7 BASE INSTALLATION GUIDELINES (OPTIONAL).................... 8 WALL TRACK INSTALLATION........................... 9 SIDE PANEL INSTALLATION........................... 10 SUPPORT BAR INSTALLATION........................12 SEALING................................13 LIMITED PRODUCT WARRANTY........................14 CARE AND MAINTENANCE..........................14...
  • Page 4 PACKAGE CONTENT...
  • Page 5: Package Content

    PACKAGE CONTENT PART# DESCRIPTION CODE Wall track 99STR1047-WM Side panel 99SG10028-WM Support bar’s anchor 99SGC1046-WM Long support bar 99SGS1020-WM Glass panel’s bracket 99SGC1045-WM 99SGC1044-WM Glass panel clamp Fixed panel’s bottom seal strip (Long) 99SRU0003...
  • Page 6: Hardware Content

    HARDWARE CONTENT Screw Screw Screw Screw ST4x20mm ST4x30mm ST4x30mm ST4x15mm Wall Anchor Fitting ø6x30mm TOOLS REQUIRED Drill with ceramic tile bits Safety glasses Pencil Level ø3mm (1/8in) & ø6mm (1/4in) Measuring Tape Silicone Rubber mallet Cutter Allen key Ratchet 2.5mm & 4mm 5mm Bit socket...
  • Page 7: Shower Reversibility

    SHOWER REVERSIBILITY • This instruction is drawn up for an opening from right to left (see illustration A). • For an installation from left to right (see illustration B), use the same instructions, but switch around the panels: mirror effect.
  • Page 8: Base Installation Guidelines (Optional)

    BASE INSTALLATION GUIDELINES FOR TILE WALL (OPTIONAL) Studs Tile wall Shower Base Drywall Cement Silicone Floor Shower Base Wood shim Flange Stud Drywall Silicone...
  • Page 9: Wall Track Installation

    WALL TRACK INSTALLATION 1. Level the track (B) and mark the track holes’ positions. 2. Remove the track and drill pilot holes in the marked locations with a Φ6mm (1/4in) drill bit. 3. Insert the wall anchors (FF) using a rubber mallet until the wall anchors are flush with the wall. 4. Replace and secure the track (B) with screws (EE). Do not overtighten. Helpful Hint Make sure there is a support stud located behind the drywall, behind the tracks!
  • Page 10: Side Panel Installation

    SIDE PANEL INSTALLATION 1-2. Insert the fixed panel’s bottom seal strips (Y) at the base of side panel (E). Cut the surplus part for the clamp. 3. Insert the side panel (E) into the metal track (B). Do not fully tighten it as further adjustments may be required.
  • Page 11 SIDE PANEL INSTALLATION 1-2. Insert the 2 magnetic door seal strips on the door panel and the side panel (E). 3. Place the glass panel clamp (X) into the side panel (E), mark the hole’s place and make a hole in the base using ø3mm (1/8in) drill bit.
  • Page 12: Support Bar Installation

    SUPPORT BAR INSTALLATION 1-2. Install the glass panel’s bracket (O) and the support bar’s anchor (M) onto the support bar (N). 3. Mark the outline of the support bar’s anchor (M). 4. Completely remove the support bar (N). Place the support bar’s anchor (M) back on it’s wall mark, mark the hole of it.
  • Page 13: Sealing

    SEALING Ensure that the door closes and opens smoothly, and that there is a tight connection between the side glass panels and the frame as well as the support bar. Apply a clear silicone water sealant around the outside perimeter of any fixed shower components (horizontally between bottom of fixed glass panel, side panel and base, as well as vertically between the wall, glass frames, and any side glass panel). Allow 24 hours for silicone to dry. Improper application of silicone sealant may cause your shower to leak.
  • Page 14: Limited Product Warranty

    Limited Warranty: OVE warrants to the original retail purchaser that within a reasonable time after notification from purchaser, OVE will repair or replace the Product, or any part or component of the covered Product, distributed by OVE which is proven to the satisfaction of OVE to be defective in workmanship or materials, and which has failed during normal use and within the warranty period. This Limited Warranty does not apply to Products that have been damaged, or which fail, as a result of causes other than manufacturing defects (such as but not limited to improper installation;...
  • Page 15 SHELBY PANNEAU LATÉRAL 32 ITEM #667456 Mesures: millimètres [pouces] Ouverture 520 / 560 [20 1/2] / [22 1/32] 1877 [73 27/32] 1877 [73 27/32] [10 13/16] [16 3/4] Marques CSA Un guide d’installation video est disponible sur notre chaîne Youtube. http://youtu.be/SmU4rY7Kmtg Date de l’achat: _______________________ Numéro de référence du produit: ______________________...
  • Page 16 INFORMATION SUR LA SÉCURITÉ AVERTISSEMENT Veuillez lire attentivement les importantes consignes de sécurité suivantes avant la manutention et l’installation de cette douche. La manipulation de ce produit présente un risque de blessure grave. Pour minimiser ces risques, veuillez prendre note de ce qui suit: • Toujours porter des lunettes et des gants de sécurité...
  • Page 17 TABLE DES MATIÈRES CONTENU DE L’EMBALLAGE ......................... 19 QUINCAILLERIE FOURNIE ..........................20 OUTILS REQUIS ............................... 20 CETTE DOUCHE EST RÉVERSIBLE ....................... 21 GUIDE D’INSTALLATION DE LA BASE (OPTIONNEL) .................. 22 INSTALLATION DES RAILS MURAUX ......................23 INSTALLATION DU PANNEAU LATÉRAL......................24 INSTALLATION DE LA BARRE DE SUPPORT ....................
  • Page 18 CONTENU DE L’EMBALLAGE...
  • Page 19: Contenu De L'emballage

    CONTENU DE L’EMBALLAGE DESCRIPTION CODE QUANTITÉ # DE PIÈCE Rail d’aluminium 99STR1047-WM Panneau latéral 99SG10028-WM Ancrages pour barre de support 99SGC1046-WM Barre de support longue 99SGS1020-WM Raccords pour panneau fixe 99SGC1045-WM Attache de soutien des panneaux de verre 99SGC1044-WM Joint d’étanchéité du bas du panneau fixe (long) 99SRU0003...
  • Page 20: Quincaillerie Fournie

    QUINCAILLERIE FOURNIE ST4x20mm ST4x30mm ST4x30mm ST4x15mm Ancrage mural Raccords Capuchon ø6x30mm OUTILS REQUIS Perceuse avec forets à céramique Lunettes de Sécurité Crayon Niveau ø3mm (1/8po) & 6mm (1/4po) Ruban à mesurer Silicone Maillet en caoutchouc Exacto Clé Allen Clé à rochet 2.5mm &...
  • Page 21: Cette Douche Est Réversible

    CETTE DOUCHE EST RÉVERSIBLE • Utilisez ces instructions pour une ouverture de la porte de droite à gauche (illustration A). • Pour une installation de gauche à droite (illustration B), suivez ces mêmes instructions mais permutez l’emplacement des panneaux: effet miroir.
  • Page 22: Guide D'installation De La Base (Optionnel)

    GUIDE D’INSTALLATION DE LA BASE (OPTIONNEL) Montant mural Mur de tuile Base de douche Placoplâtre Ciment Silicone Plancher Base de douche Cale en bois Bride Montant mural Placoplâtre Silicone...
  • Page 23: Installation Des Rails Muraux

    INSTALLATION DES RAILS MURAUX 1. Mettre le rail (B) à niveau et marquer l’emplacement des trous. 2. Retirez les rail et percez des trous guides aux endroits marqués avec un foret Φ6 (1/4po) mm. 3. Insérez les ancrages muraux (FF) en utilisant un maillet en caoutchouc. 4. Replacez les rail (B), puis les fixer avec les vis (EE). Ne pas serrer trop fortement. Important S’assurer qu’il y a un montant mural vis-à-vis les rails muraux à...
  • Page 24: Installation Du Panneau Latéral

    INSTALLATION DU PANNEAU LATÉRAL 1-2. Insérez les joints d’étanchéité des panneaux fixes (Y) au bas des panneaux (E). Coupez le surplus tel qu’iniqué ci-dessous. 3. Insérez le panneau latéral (E) dans le rail mural (B). Ne pas fixer immédiatement, car des ajustements ultérieurs pourraient être requis.
  • Page 25 INSTALLATION DU PANNEAU LATÉRAL 1-2. Insérez les 2 joints d’étanchéité magnétiques (F) sur la porte (G) et sur le panneau de côté (E). 3. Placez l’attache de soutiens (X) sur le panneau latéral (E), marquez l’emplacement des trous, puis faire un trous guide en utilisant un foret Φ 3mm (1/8in).
  • Page 26: Installation De La Barre De Support

    INSTALLATION DES BARRES DE SUPPORT 1-2. Installez le raccord (O) et l’ancrage pour barre de support (M) sur la barre se support (N). 3. Marquez le contour des ancrages de la barre (M). 4. Complètement retirez les barre (N). Placez les ancrages (M) à leur endroit marqué, puis marquez leur centre sur le mur.
  • Page 27: Scellage

    SCELLAGE Assurez-vous que la porte se ferme hermétiquement et s’ouvre doucement, et que le châssis et la barre de support sont étroitement fixés aux panneaux de verre. Appliquez un scellant étanche à base de silicone sur le contour extérieur de toutes les composantes de la douche, et verticalement entre le mur, le châssis et tous les panneaux de verre). Laissez sécher le scellant pendant 24 heures.
  • Page 28: Garantie Limitée Du Produit

    Garantie limitée: OVE garantit à l’acheteur original que dans un délai raisonnable après réception d’un avis de sa part, OVE réparera ou remplacera le produit, ou toute partie ou composante du produit visé, distribué par OVE, dont la défectuosité de matériel ou de fabrication est établie à la satisfaction d’OVE, et qui est survenue pendant l’utilisation normale et pendant la période couverte par la garantie.
  • Page 29 SHELBY PANEL LATERAL 32 ITEM #667456 Medidas: milímetros [pulgadas] Apertura 520 / 560 [20 1/2] / [22 1/32] 1877 [73 27/32] 1877 [73 27/32] [10 13/16] [16 3/4] Marca CSA Una guía de instalación de vídeo está disponible en nuestro canal de Youtube. http://youtu.be/SmU4rY7Kmtg Fecha de compra: ___________________ Seguimiento y referencia del producto:___________________ Preguntas, problemas, piezas faltantes?
  • Page 30 INFORMACIÓN DE SEGURIDAD PRECAUCIÓN Lea cuidadosamente la siguiente información importante antes de manipular e instalar la ducha. Hay riesgo de lesiones graves mientras se manipula el producto. Para minimizar estos riesgos, sírvase notar: • Utilice siempre anteojos de seguridad y guantes durante la manipulación. • Lea y siga siempre todos los pasos en las instrucciones de instalación.
  • Page 31 TABLA DE CONTENIDOS CONTENIDO DEL PAQUETE..........................33 CONTENIDO DE HARDWARE.......................... 34 HERRAMIENTAS NECESARIAS........................34 REVERSIBILIDAD DE LA DUCHA........................35 GUÍA PARA LA INSTALACIÓN LA BASE (OPCIONAL).................. 36 INSTALACIÓN DEL RIEL DE LA PARED......................37 INSTALACIÓN DEL PANEL LATERAL......................38 INSTALACIÓN DE LA BARRA DE SOPORTE....................40 SELLADO............................
  • Page 32 CONTENIDO DEL PAQUETE...
  • Page 33: Contenido Del Paquete

    CONTENIDO DEL PAQUETE DESCRIPCIÓN CÓDIO PARTE# CANTIDAD Riel de aluminio 99STR1047-WM El panel lateral 99SG10028-WM Anclaje de la barra de soporte 99SGC1046-WM Barra de soporte (largo) 99SGS1020-WM Abrazaderas fijas de panel 99SGC1045-WM Mordazas para paneles de vidrio 99SGC1044-WM Tira de sellado inferior para panel de vidrio (largo) 99SRU0003...
  • Page 34: Contenido De Hardware

    CONTENIDO DE HARDWARE Tornillo Tornillo Tornillo Tornillo ST4x20mm ST4x30mm ST4x30mm ST4x15mm Tarugo Accesorio Capuchón ø6x30mm HERRAMIENTAS NECESARIAS Taladro con brocas para cerámica Anteojos de seguridad Lápiz Nivel ø3mm (1/8pu) & ø6mm (1/4pu) Cinta medidora Silicona Mazo de goma Cuchilla Llave Allen Llave de trinquete 2.5mm &...
  • Page 35: Reversibilidad De La Ducha

    REVERSIBILIDAD DE LA DUCHA • Estas instrucciones fueron elaboradas para una abertura de puerta de derecha a izquierda (ilustración A). • Para una abertura de izquierda a derecha (ilustración B), siga estas mismas instrucciones, pero cambie el lugar para la ubicación del riel: efecto espejo.
  • Page 36: Guía Para La Instalación La Base (Opcional)

    PAUTAS PARA LA INSTALACIÓN BASE (OPCIONAL) Soportes Pared de baldosa Plato de ducha Tablaroca Cemento Silicona Piso Plato de ducha Madera cuñas Brida Soportes Tablaroca Silicona...
  • Page 37: Instalación Del Riel De La Pared

    INSTALACIÓN DEL RIEL DE LA PARED 1. Nivele el riel (B) y marque las posiciones de los agujeros en el riel. 2. Retire el riel y perfore los agujeros piloto con una broca de Φ6mm (1/4 pu) en los lugares marcados. 3. Inserte los tacos (FF) de pared utilizando un mazo de caucho hasta que los tacos de pared estén a ras con la pared.
  • Page 38: Instalación Del Panel Lateral

    INSTALACIÓN DEL PANEL LATERAL 1-2. Inserte las tiras de sellado inferior (Y) del panel fijo en la base del panel lateral (E). Corte la parte sobrante para la abrazadera. 3. Inserte el panel lateral (E) en el riel metálico (B). No lo apriete completamente ya que se puede necesitar más ajustes.
  • Page 39 INSTALACIÓN DEL PANEL DE LA PUERTA 1-2. Inserte las 2 tiras de sellado magnético (F) de la puerta en el panel de la puerta (G) y el panel lateral (E). 3. Coloque la abrazadera (X) del panel de vidrio (X) en el panel lateral (E), marque el lugar para el agujero y haga el agujero en la base utilizando una broca de ø3mm (1/8 pu).
  • Page 40: Instalación De La Barra De Soporte

    INSTALACIÓN DE LA BARRA DE SOPORTE 1-2. Instale la abrazadera (O) del panel de vidrio y el anclaje (M) de la barra de soporte sobre la barra de soporte (N). 3. Marque el contorno del taco (M) de la barra de soporte. 4.
  • Page 41: Sellado

    SELLADO Asegúrese de que la puerta cierre firmemente y abra suavemente y que haya una conexión apretada entre el panel de vidrio y el riel al igual que con la barra se soporte Aplique silicona transparente resistente al agua alrededor del perímetro interno y externo de todos los componentes de la ducha (horizontalmente entre la parte inferior del panel de vidrio y la base, al igual que verticalmente (entre la pared, el riel y el panel de vidrio).
  • Page 42: Garantía Limitada De Productos

    OVE reparará o remplazará el producto, o cualquier pieza o componente del producto cubierto, distribuido por OVE el cual, a la satisfacción de OVE, ha resultado defectuosos en mano de obra o materiales, y el cual ha fallado durante el uso normal y dentro del periodo de garantía.
