Table of contents 1 Safety .......... 4 7.2 Operating tips...... 15 1.1 General information.... 4 7.3 Switching off the appliance .. 16 1.2 Intended use....... 4 7.4 Setting the temperature.... 16 1.3 Restriction on user group... 4 8 Additional functions .... 16 1.4 Safe transport ...... 4 8.1 Super cooling ...... 16 1.5 Safe installation ...... 5 8.2 Super freezing ...... 16...
Page 3
14 Troubleshooting....... 23 14.1 Power failure...... 25 14.2 Conducting an appliance self-test ........ 25 15 Storage and disposal.... 25 15.1 Taking the appliance out of operation ........ 25 15.2 Disposing of old appliance .. 26 16 Customer Service..... 26 16.1 Product number (E-Nr.) and production number (FD).. 26 17 Technical data ......
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use This appliance is only intended to be fully fitted in a kitchen.
Safety en 1.5 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶...
en Safety Portable multiple socket strips or portable power supply units may overheat and cause a fire. ▶ Do not place portable multiple socket strips or power supply units on the back of the appliance. 1.6 Safe use WARNING ‒ Risk of electric shock! An ingress of moisture can cause an electric shock.
Page 7
Safety en WARNING ‒ Risk of fire! Electrical devices within the appliance may cause a fire, e.g. heat- ers or electric ice makers. ▶ Do not operate electrical devices within the appliance. WARNING ‒ Risk of injury! Containers that contain carbonated drinks may burst. ▶ Do not store containers that contain carbonated drinks in the freezer compartment.
en Safety Metal or metal-style parts in the appliance may contain aluminium. If acidic food comes into contact with aluminium in the appliance, aluminium foil ions may pass into the food. ▶ Do not consume soiled food. 1.7 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous.
Preventing material damage en – Maintain a 30 mm clearance to 2 Preventing material electric or gas cookers. – Maintain a 300 mm clearance to damage oil or solid-fuel cookers. ¡ Never cover or block the external ATTENTION! ventilation openings. Using the base, runners or appliance Saving energy during use doors as a seat surface or climbing surface may damage the appliance.
en Installation and connection ¡ Equipment and accessories Climate Permitted room tem- ¡ Installation material class perature ¡ Installation instructions 10 °C to 32 °C ¡ User manual 16 °C to 32 °C ¡ Customer service directory 16 °C to 38 °C ¡ Warranty enclosure ¡ Energy label 16 °C to 43 °C ¡...
Installation and connection en 4.5 Connecting the appliance to the electricity supply Insert the non-heating appliance plug of the power cable into the appliance. Insert the mains plug of the appli- ance's power cable in a socket nearby. The connection data of the appli- ance can be found on the rating plate.

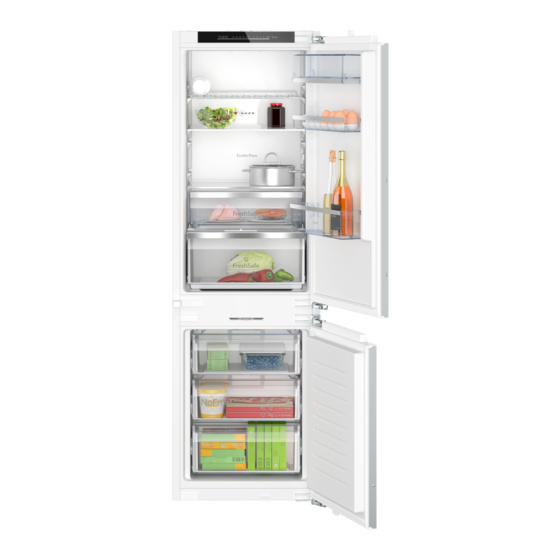

en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Refrigerator compartment Control panel → Page 17 Bottle shelf → Page 14 Freezer compartment → Page 18 Lighting...
Familiarising yourself with your appliance en Storage container Butter and cheese compart- → Page 14 ment → Page 15 Fruit and vegetable container Door storage compartment with humidity control for large bottles → Page 15 → Page 14 Note: Deviations between your appli- Rating plate → Page 27 ance and the diagrams may differ with regard to their features and size.
en Features fresh fruit and vegetables to be 6 Features stored for longer than with conven- tional storage. The features of your appliance de- pend on the model. 6.1 Shelf To vary the shelf as required, you can remove the shelf and re-insert it elsewhere.
operation en Fill the ice cube tray with drinking 6.5 Butter and cheese com- water up to ¾ and place in the partment freezer compartment. Store butter and hard cheese in the If the ice cube tray is stuck to the butter and cheese compartment. freezer compartment, loosen it with To open the butter and cheese com- a blunt implement only (e.g.
en Additional functions ¡ The housing around the freezer Switching on Super cooling compartment is temporarily heated Press ▶ slightly. This prevents condensa- lights up. tion in the area of the door seal. ¡ When you close the door, a va- Note: After approx.
Refrigerator compartment en Switching off the door alarm 10 Refrigerator compart- Close the appliance door or press ▶ ment a The warning tone is switched off. You can keep meat, sausage, fish, dairy products, eggs, prepared meals 9.2 Temperature alarm and pastries in the refrigerator com- partment.
en Freezer compartment Tip: Store highly perishable food The freezer compartment can be such as fish, sausages and meat in used to store perishable food long- the coldest zone. term. The low temperatures slow down or stop the spoilage. Warmest zone 11.1 Freezing capacity The warmest zone is at the very top of the door.
Freezer compartment en ¡ Place the food over the whole area 11.5 Shelf life of frozen food of the frozen food containers. at −18 °C ¡ To quickly and gently freeze larger quantities of fresh food, place this Food Storage time in the top frozen food container. Fish, sausages, pre- up to ¡...
en Defrosting 12.2 Defrosting in the freezer 12 Defrosting compartment The fully automatic NoFrost system 12.1 Defrosting in the refri- ensures that the freezer compartment gerator compartment remains frost-free. Defrosting is not required. When the appliance is operating, condensation droplets or frost form on the rear panel of the refrigerator 13 Cleaning and servi- compartment due to functional reas- ons.
Cleaning and servicing en Liquid in the lighting or in the con- 13.3 Cleaning the condensa- trols can be dangerous. tion channel and drain- The rinsing water must not drip ▶ age hole into the lighting or controls. Regularly clean the condensation ATTENTION! channel and drainage hole to ensure Unsuitable cleaning products may...
Page 22
en Cleaning and servicing Lift the frozen food container at the Removing the storage container front and remove it . Pull out the storage container as far as it will go. Lift the storage container at the front and remove it ...
Troubleshooting en 14 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶...
Page 24
en Troubleshooting Fault Cause and troubleshooting A warning tone Do not exceed the max. freezing capacity. ▶ sounds and the set → "Freezing capacity", Page 18 temperature (freezer compartment) and flash. The temperature dif- Different causes are possible. fers greatly from the Switch off the appliance. → Page 16 setting.
Storage and disposal en a If, at the end of the appliance self- 14.1 Power failure test, two audible signals sound During a power failure, the temperat- and the temperature display indic- ure in the appliance rises; this re- ates the set temperature, your ap- duces the storage time and the qual- pliance is OK.
en Customer Service 15.2 Disposing of old appli- 16 Customer Service ance Function-relevant genuine spare parts Valuable raw materials can be re- according to the corresponding Eco- used by recycling. design Order can be obtained from Customer Service for a period of at WARNING least 10 years from the date on Risk of harm to health!
Technical data en Make a note of your appliance's de- tails and the Customer Service tele- phone number to find them again quickly. 17 Technical data Refrigerant, cubic capacity and fur- ther technical specifications can be found on the rating plate. → "Appliance", Fig. , Page 13 This product contains a light source from energy efficiency class E.
