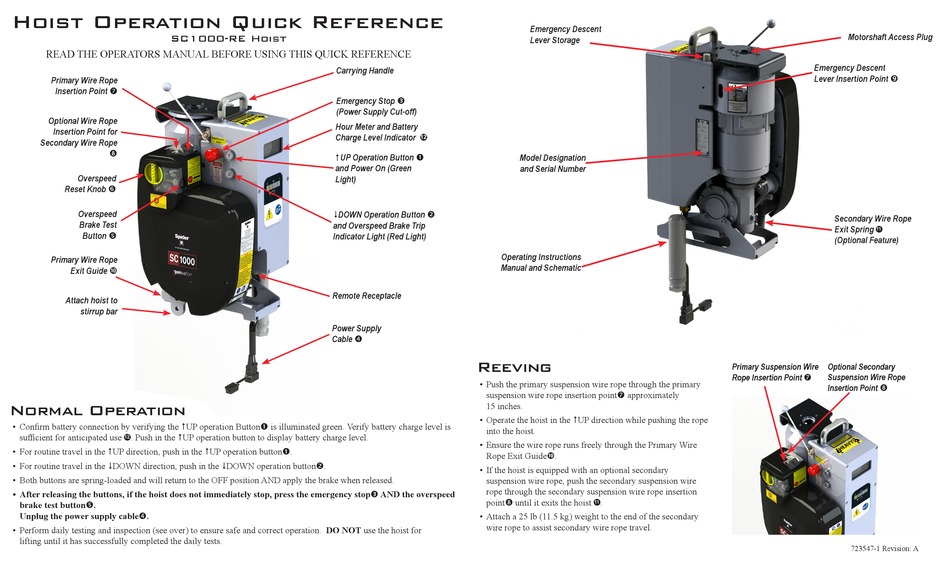

Hoist Operation Quick Reference
SC1000-RE Hoist
READ THE OPERATORS MANUAL BEFORE USING THIS QUICK REFERENCE
Primary Wire Rope
Insertion Point 
Optional Wire Rope
Insertion Point for
Secondary Wire Rope
Overspeed
Reset Knob 
Overspeed
Brake Test
Button 
Primary Wire Rope
Exit Guide 
Attach hoist to
stirrup bar

Normal Operation

• Confirm battery connection by verifying the UP operation Button is illuminated green. Verify battery charge level is
sufficient for anticipated use
. Push in the UP operation button to display battery charge level.
12
• For routine travel in the UP direction, push in the UP operation button.
• For routine travel in the DOWN direction, push in the DOWN operation button.
• Both buttons are spring-loaded and will return to the OFF position AND apply the brake when released.
• After releasing the buttons, if the hoist does not immediately stop, press the emergency stop AND the overspeed
brake test button.
Unplug the power supply cable.
• Perform daily testing and inspection (see over) to ensure safe and correct operation. DO NOT use the hoist for
lifting until it has successfully completed the daily tests.
Carrying Handle
Emergency Stop 
(Power Supply Cut-off)
Hour Meter and Battery
Charge Level Indicator
12
UP Operation Button 
and Power On (Green
Light)
DOWN Operation Button 
and Overspeed Brake Trip
Indicator Light (Red Light)
Operating Instructions
Manual and Schematic
Remote Receptacle
Power Supply
Cable 

Reeving

• Push the primary suspension wire rope through the primary
suspension wire rope insertion point  approximately
15 inches.
• Operate the hoist in the UP direction while pushing the rope
into the hoist.
• Ensure the wire rope runs freely through the Primary Wire
Rope Exit Guide.
• If the hoist is equipped with an optional secondary
suspension wire rope, push the secondary suspension wire
rope through the secondary suspension wire rope insertion
point  until it exits the hoist
• Attach a 25 lb (11.5 kg) weight to the end of the secondary
wire rope to assist secondary wire rope travel.
Emergency Descent
Lever Storage
Model Designation
and Serial Number
.
11
Motorshaft Access Plug
Emergency Descent
Lever Insertion Point 
Secondary Wire Rope
Exit Spring
11
(Optional Feature)
Primary Suspension Wire
Optional Secondary
Suspension Wire Rope
Rope Insertion Point 
Insertion Point 
723547-1 Revision: A
