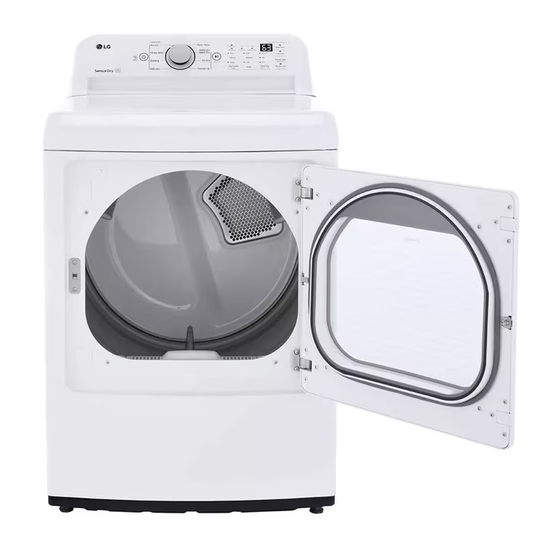

LG WT7155CW-DLE7150W Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

OWNER'S MANUAL
DRYER
Read this owner's manual thoroughly before operating the appliance and keep it handy for
reference at all times. The complete owner's manual can be found on the LG website at:
https://us.smartthinq.com/images/pdfmanual/DR_TD27_WIN_EN.pdf or by scanning the QR
code. LG is working to create a sustainable tomorrow by publishing parts of this manual
online only.
Small actions can have big results!
ENGLISH
DLE7100*
DLG7101*
DLE7150*
DLG7151*
DLE7000*
DLG7001*
Scan for owner's manual.
www.lg.com
MFL67652515
Copyright © 2018 - 2021 LG Electronics Inc. All Rights Reserved.
Rev.15_122321

Advertisement

Table of Contents
loading

Related Manuals for LG WT7155CW-DLE7150W

Summary of Contents for LG WT7155CW-DLE7150W

  • Page 1 DRYER Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. The complete owner’s manual can be found on the LG website at: https://us.smartthinq.com/images/pdfmanual/DR_TD27_WIN_EN.pdf or by scanning the QR code. LG is working to create a sustainable tomorrow by publishing parts of this manual online only.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INSTRUCTIONS SMART FUNCTIONS IMPORTANT SAFETY INSTRUCTIONS LG ThinQ Application GROUNDING INSTRUCTIONS Smart Diagnosis™ Feature PRODUCT FEATURES MAINTENANCE Regular Cleaning PRODUCT OVERVIEW TROUBLESHOOTING Parts Accessories FAQs: Frequently Asked Questions User Support Videos Before Calling for Service...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety for a Dryer WARNING Fire Hazard Failure to follow safety warnings exactly could result in serious injury, death or property damage. Do not install a booster fan in the exhaust duct. Install all clothes dryer in accordance with the installation instructions of the manufacturer of dryer.
  • Page 4 SAFETY INSTRUCTIONS WARNING - RISK OF FIRE Install the clothes dryer according to the manufacturer’s instructions and local codes. • Clothes dryer installation must be performed by a qualified installer. • Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers.

  • Page 5: Important Safety Instructions

    SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: Installation • Remove all protective vinyl film from the product. Failure to do so may result in product damage, smoke, •...
  • Page 6 SAFETY INSTRUCTIONS Operation • Do not put any part of your body, such as your hands or feet, or metal objects under the product. • Read all instructions before using the appliance. • Do not let your hand get pinched when opening or •...

  • Page 7: Grounding Instructions

    SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS WARNING Improper connection of the equipment-grounding conductor may result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt that the appliance is properly grounded. • This appliance must be grounded. In the event •...

  • Page 8: Product Features

    PRODUCT FEATURES PRODUCT FEATURES Easy-to-Use Control Panel An entire selection of user-friendly functions make operating the dryer easy. Easy-Access Reversible Door The wide-opening door provides easy access for loading and unloading. The door hinge can be reversed to adjust for installation location.

  • Page 9: Product Overview

    Kit No. 383EEL9001B NOTE • Visit www.lg.com to purchase accessories. • Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are missing. • For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.

  • Page 10: Installation

    10 INSTALLATION INSTALLATION Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. Check and choose Level the dryer Vent the dryer the proper location Gas dryer Electric dryer Connect electric dryers Connect gas dryers Plug in the power cord Installation test...

  • Page 11: Installation Location Requirements

    INSTALLATION Installation Location Requirements WARNING Read all installation instructions completely before installing and operating the dryer! It is important that you review this entire manual before installing and using the dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided on the following pages. The installation requires: •...
  • Page 12 12 INSTALLATION Closet Ventilation Requirements Closets with doors must have both an upper and lower vent to prevent heat and moisture buildup in the closet. One upper vent opening with a minimum opening of 48 sq. in. (310 cm ) must be installed no lower than 6 feet above the floor.

  • Page 13: Leveling The Dryer

    INSTALLATION Leveling the Dryer Use an adjustable wrench to turn the leveling feet. Unscrew the legs to raise the dryer or screw in the legs to lower it. Raise or lower with WARNING the leveling feet until the dryer is level from side to side and front to back.

  • Page 14: Reversing The Door

    14 INSTALLATION Reversing the Door Remove the 4 screws securing the hinges to the door frame. Remove the two plastic cover caps. Reinstall the hinges and cover caps on the WARNING opposite sides from which they were removed. THE DRYER DOOR IS VERY LARGE AND HEAVY.

  • Page 15: Installing The Side Vent Kit

    (right-side (3.8 cm) venting is not available on gas models). An adapter kit, part number 383EEL9001B, may be purchased from an LG retailer. This kit contains the Option 2: Bottom Venting necessary duct components to change the dryer vent location.

  • Page 16: Venting The Dryer

    16 INSTALLATION Venting the Dryer • DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of WARNING the exhaust system. Secure all joints with duct tape. Failure to follow these instructions may result To reduce the risk of fire or explosion, electric in fire or death.
  • Page 17 INSTALLATION Routing And Connecting Ductwork NOTE Follow the guidelines below to maximize drying performance and reduce lint buildup and condensation in the ductwork. Ductwork and fittings are NOT included and must be purchased separately. • Use 4-inch (10.2 cm) diameter rigid, semi-rigid or flexible metal ductwork.

  • Page 18: Connecting Gas Dryers

    18 INSTALLATION Connecting Gas Dryers • Use only a new AGA- or CSA-certified gas supply line (in compliance with the Standard for Connectors for Gas Appliances, ANSI WARNING Z21.24 • CSA 6.10) with flexible stainless steel connectors. To reduce the risk of fire or explosion, electric shock, property damage, injury to persons, or •...
  • Page 19 INSTALLATION Connecting the Gas Supply Securely tighten all connections between the dryer and your laundry room’s gas supply. • Installation and service must be performed by a qualified installer, service agency, or the Turn on your laundry room’s gas supply. gas supplier.

  • Page 20: Connecting Electric Dryers

    20 INSTALLATION Connecting Electric Dryers Electrical Requirements for Electric Models Only WARNING To help prevent fire, electric shock, serious injury, or death, the wiring and grounding must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local regulations.
  • Page 21 INSTALLATION Attach the white neutral wire to the center screw WARNING of the terminal block. Connect the power cord to the terminal block. Connect each wire in the power cord to the Attach the power cord ground wire to the green terminal block screw with the matching colored ground screw.
  • Page 22 22 INSTALLATION Four-Wire Direct Wire Attach the white neutral wire to the center screw of the terminal block. • A UL-listed strain relief is required. • Use UL-listed 4-wire #10 AWG- Attach the power cord ground wire to the green minimum copper conductor cable.
  • Page 23 INSTALLATION Attach the neutral (white) wire to the center WARNING terminal block screw. Connect the power cord to the terminal block. NOTE Connect each wire in the power cord to the terminal block screw with the matching colored The dryer is supplied with the neutral conductor wire.

  • Page 24: Final Installation Check

    24 INSTALLATION Three-Wire Direct Wire Reinstall the terminal block access cover. • A 3-wire connection is NOT permitted Neutral (Black) (White) on new construction after January 1, 1996. (Red) Ground • A UL-listed strain relief is required. Screw • Use UL-listed 3-wire, #10 AWG-minimum copper conductor cable.

  • Page 25: Installation Test (Duct Check)

    INSTALLATION Installation Test (Duct Check) Check the display for results. During the test cycle, monitor the Flow Sense™ Once you have completed the installation of the display on the control panel. If the Flow Sense™ dryer, use this test to make sure the condition of the LED is not turned on, when the cycle ends, exhaust system is adequate for proper operation of the exhaust system is adequate.
  • Page 26 26 INSTALLATION Restricted or Blocked Airflow • Check the duct condition If the Flow Sense LED is turned on, check the Avoid long runs or runs with multiple elbows or bends. exhaust system for restrictions and damage. Repair or replace the exhaust system as needed. NOTE When the dryer is first installed, this test should be performed to alert you to any existing...

  • Page 27: Operation

    OPERATION OPERATION WARNING To reduce the risk of fire, electric shock, or injury to persons, read this entire manual, including the IMPORTANT SAFETY INSTRUCTIONS, before operating this dryer. Using the Dryer Lint 1 Clean the Lint Filter Filter If the lint filter has not already been cleaned, lift out the filter and remove the lint from the last load.

  • Page 28: Loading The Dryer

    • Damp clothes will expand as they dry. Do not The complete owner’s manual can be found on the overload the dryer; clothes require room to LG website at: https://us.smartthinq.com/images/ tumble and dry properly. pdfmanual/DR_TD27_WIN_EN.pdf • Use mesh laundry bags to separate clothes...

  • Page 29: Smart Functions

    Follow the instructions below to use the audible diagnosis method. Installing the LG ThinQ Application • Launch the LG ThinQ application and select the Smart Diagnosis™ feature in the menu. Search for the LG ThinQ application from the Google Follow the instructions for audible diagnosis Play Store or Apple App Store on a smartphone.

  • Page 30: Maintenance

    30 MAINTENANCE MAINTENANCE Maintaining Ductwork Vent ductwork should be checked for lint buildup once per month and cleaned at least once per year. If any Regular Cleaning noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions WARNING and blockages.

  • Page 31: Troubleshooting

    User Support Videos For further assistance, there are videos and tutorials available through the LG.com website. On the lg.com/us home page, click on the Support menu tab to bring up the menu selections. Select Video Tutorials. Select Appliances and Dryers in the search menu on the new page.

  • Page 32: Before Calling For Service

    32 TROUBLESHOOTING Before Calling for Service This dryer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the dryer does not function properly or does not function at all, check the following before you call for service.
  • Page 33 TROUBLESHOOTING Problem Possible Cause Solutions Clothes take too long to Exhaust ducts are blocked, dirty, Confirm that the exhaust duct is properly or duct run is too long. configured and free of debris, lint, and obstructions. Make sure that outside wall dampers can open properly and are not blocked, jammed, or damaged.
  • Page 34 34 TROUBLESHOOTING Problem Possible Cause Solutions Clothes take too long to Energy Saver option selected If using the Cotton/Normal cycle, deselect (on some models) the Energy Saver option. This option reduces energy use by adding an air dry section to the beginning of the cycle. Drying time is not Heat settings, load size, or The drying time for a load will vary...
  • Page 35 TROUBLESHOOTING Performance Problem Possible Cause Solutions Greasy or dirty spots Fabric softener used incorrectly. Confirm and follow the instructions on clothes provided with your fabric softener. Clean and dirty clothes are being Use your dryer to dry only clean items. dried together.
  • Page 36 36 TROUBLESHOOTING Problem Possible Cause Solutions Lint on clothes Excess static in clothes. Use a fabric softener to reduce static electricity. Be sure to follow the manufacturer’s instructions. Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and use a shorter drying time, or use SENSOR DRY cycles.
  • Page 37 TROUBLESHOOTING Error Codes Problem Possible Cause Solutions Error code: tE1 through Temperature sensor failure. Turn off the dryer and call for service. Display shows error Power cord is connected Check the connection of the power cord code: PS (electric incorrectly. to the terminal block.
  • Page 38 38 TROUBLESHOOTING Problem Possible Cause Solutions The display shows d90, The duct work is about 90%-95% Do not use the dryer until the exhaust blocked.(“d90” or “d95” error system has been cleaned and/or repaired. code is displayed for 2 hours Using the dryer with a severely restricted only) exhaust is dangerous and could result in...

  • Page 39: Warranty (Usa)

    Should your LG Dryer (“Product”) fail due to a defect in materials or workmanship under normal home use, during the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and applies only when purchased and used within the United States including U.S.
  • Page 40 TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION For additional product information, visit the LG website at http://www.lg.com For assistance using this product or to schedule service, contact LG Electronics at 1-800-243-0000. For further assistance, write: LG Electronics, 201 James Record Road, Huntsville, Alabama 35813...
  • Page 41 If you and LG are unable to resolve the dispute within 30 days, either party Agreement to Binding Arbitration and Class Action Waiver.
  • Page 42 Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar optout@lge.com, with the subject line: “Arbitration Opt Out”...
  • Page 43 Memo...
  • Page 44 Memo...
  • Page 45 Memo...
  • Page 46 Memo...
  • Page 47 El manual del propietario completo se puede encontrar en el sitio web de LG en: https://us.smartthinq.com/images/pdfmanual/DR_ TD27_WIN_ES.pdf o escaneando el código QR. LG trabaja para crear un futuro sustentable y publica partes de este manual únicamente en línea.
  • Page 48 ÍNDICE ÍNDICE INSTRUCCIONES DE SEGURIDAD FUNCIONES INTELIGENTES INSTRUCCIONES IMPORTANTES DE Aplicación LG ThinQ SEGURIDAD Características de Smart Diagnosis ™ INSTRUCCIONES DE CONEXIÓN A TIERRA (Diagnóstico Inteligente) CARACTERÍSTICAS DEL MANTENIMIENTO PRODUCTO Limpieza regular SOLUCIÓN DE PROBLEMAS DESCRIPCIÓN GENERAL DEL PRODUCTO Preguntas frecuentes Antes de llamar al servicio técnico...
  • Page 49 INSTRUCCIONES DE SEGURIDAD INSTRUCCIONES DE SEGURIDAD LEA TODAS LAS INSTRUCCIONES ANTES DE USAR Medidas de seguridad para una Secadora ADVERTENCIA Peligro de incendio No seguir exactamente las advertencias de seguridad podría provocar lesiones graves, la muerte o daños a la propiedad. No instale un ventilador auxiliar en el conducto de extracción.
  • Page 50 INSTRUCCIONES DE SEGURIDAD ADVERTENCIA - RIESGO DE INCENDIO Instale la secadora de ropa de acuerdo con las instrucciones del fabricante y los códigos locales. • La instalación de la secadora de ropa debe ser realizada por un técnico calificado. • No instale la secadora de ropa con materiales de ventilación de plástico flexibles. Si se instala un conducto flexible metálico (tipo lámina de aluminio), este debe ser de un tipo específico avalado por el fabricante como apto para el uso con secadoras de ropa.
  • Page 51 INSTRUCCIONES DE SEGURIDAD INSTRUCCIONES IMPORTANTES DE SEGURIDAD ADVERTENCIA Para reducir el riesgo de incendio, descargas eléctricas o lesiones personales al usar su equipo, siga las precauciones básicas, incluso lo siguiente: Instalación • Quite toda la película vinílica que protege al producto. Si no lo hace puede ocasionar daños en el equipo, humo o un •...
  • Page 52 INSTRUCCIONES DE SEGURIDAD Funcionamiento • No meta animales vivos como mascotas dentro del aparato. • No coloque ninguna parte de su cuerpo, ya sean manos o • Lea todas las instrucciones antes de usar el aparato. pies, ni objetos de metal debajo del aparato. •...
  • Page 53 INSTRUCCIONES DE SEGURIDAD INSTRUCCIONES DE CONEXIÓN A TIERRA ADVERTENCIA La conexión inadecuada del conductor para la conexión a tierra del equipo puede producir un riesgo de descarga eléctrica. Consulte a un electricista calificado o a personal de mantenimiento si tiene dudas sobre si el aparato se encuentra conectado a tierra apropiadamente.
  • Page 54 CARACTERÍSTICAS DEL PRODUCTO CARACTERÍSTICAS DEL PRODUCTO Panel de control fácil de usar Una completa selección de funciones de fácil manejo simplifica la operación de la secadora. Puerta reversible de fácil acceso La amplia puerta permite acceder fácilmente para la carga y descarga. La bisagra de la puerta puede invertirse para ajustar- se a la ubicación de la instalación.
  • Page 55 NOTA • Visita www.lg.com por comprar si falta alguno de los accesorios. • Póngase en contacto con el Departamento de atención al cliente de LG, en el número 1-800-243- 0000 (1-888-542-2623 en Canadá) si falta alguno de los accesorios. • Para su seguridad y con el fin de ampliar la vida útil del producto, utilice solo componentes autorizados. El fabricante no es responsable del mal funcionamiento del producto ni de accidentes causados por el uso de componentes o piezas no autorizados y comprados por separado.
  • Page 56 10 INSTALACIÓN INSTALACIÓN Descripción general de la instalación Lea las siguientes instrucciones de instalación en primer lugar, después de comprar este producto o transportarlo a otra ubicación. Verifique y elija la Nivele la secadora Ventile la secadora ubicación adecuada Secadora de gas Secadora eléctrica Conecte las secadoras Conecte las secadoras...
  • Page 57 INSTALACIÓN Requisitos del lugar de instalación ADVERTENCIA ¡Lea todas las instrucciones de instalación antes de instalar y operar su secadora! Es importante que revise este manual por completo antes de instalar y usar su secadora. En las siguientes páginas, se proporcionan instrucciones detalladas con respecto a las conexiones eléctricas, a las conexiones de gas y a los requisitos de escape.
  • Page 58 12 INSTALACIÓN Requisitos de ventilación para armarios Los armarios con puertas deben tener ventilación tanto en la parte superior como en la inferior para evitar la acumulación de calor y humedad dentro del armario. Se debe instalar una abertura de ventilación superior con una apertura mínima de 48 pulgadas cuadradas (310 cm ) a no menos de 6 pies del suelo.
  • Page 59 INSTALACIÓN Nivelación de la secadora Utilice una llave de tuercas ajustable para girar las patas niveladoras. Desenrosque las patas para levantar la secadora o enrósquelas para bajarla. Suba o baje ADVERTENCIA la secadora con las patas niveladoras hasta que se encuentre nivelada de lado a lado y de adelante hacia Para reducir el riesgo de lesiones personales, cumpla con atrás.
  • Page 60 14 INSTALACIÓN Inversion de la puerta Montaje ADVERTENCIA de bisagra LA PUERTA DE LA SECADORA ES MUY GRANDE Tapa de cubierta Y PESADA. El no seguimiento de las instrucciones siguientes puede dañar la secadora, ocasionar daños materiales o físicos. • Para evitar daños en la secadora o en la puerta, sujete Con las bisagras y los rellenadores en la nueva posición, dicha puerta con un taburete o una caja de un tamaño monte de nuevo el panel interior de la puerta en la...
  • Page 61 Puede adquirir un kit adaptador, número de pieza Introduzca a presión el conducto adaptador en la carcasa 383EEL9001B, de su distribuidor LG. Este kit contiene del ventilador y fíjelo a la base de la secadora como se los componentes de conducto necesarios para cambiar la indica.
  • Page 62 16 INSTALACIÓN Ventilación de la secadora • NO utilice tornillos para chapa metálica ni ningún otro tipo de sujetadores que se extiendan dentro del conducto y puedan atrapar pelusa, y, así, reducir ADVERTENCIA la eficiencia del sistema de escape. Asegure todas las uniones con cinta adhesiva para conductos.
  • Page 63 INSTALACIÓN Recorrido y conexión de los conductos NOTA Siga las pautas a continuación para maximizar el rendimiento de secado, para reducir la acumulación de pelusa y la condensación en los conductos. Los conductos y las conexiones NO están incluidos y deben adquirirse por separado.
  • Page 64 18 INSTALACIÓN Conexión de secadoras de gas • Solo utilice una nueva línea de suministro de gas certificada por AGA o CSA (de conformidad con la Norma para Conectores para Aparatos de Gas, ANSI ADVERTENCIA Z21.24 • CSA 6.10) con onectores flexibles de acero inoxidable. Para reducir el riesgo de incendio o explosión, descargas •...
  • Page 65 INSTALACIÓN Conexión del suministro de gas Ajuste bien todas las conexiones entre la secadora y el suministro de gas de su cuarto de lavado. • La instalación y el mantenimiento deben ser realizados por un instalador, una agencia de mantenimiento o una Abra el suministro de gas de su cuarto de lavado. compañía de gas calificados.
  • Page 66 20 INSTALACIÓN Conexión de secadoras eléctricas Requisitos eléctricos para modelos eléctricos únicamente ADVERTENCIA Para ayudar a evitar incendios, descargas eléctricas, lesiones graves o la muerte, el cableado y la descarga a tierra deben cumplir con la última edición del Código Eléctrico Nacional, ANSI/NFPA 70 y todas las regulaciones locales correspondientes.
  • Page 67 INSTALACIÓN Conecte el alambre de conexión a tierra del cable de ADVERTENCIA alimentación al tornillo de conexión a tierra de color Conecte el cable de alimentación al bloque de bornes. verde. Cada alambre de color debe conectarse al tornillo del mismo color.
  • Page 68 22 INSTALACIÓN Conexión directa de cuatro hilos Conecte el alambre de conexión a tierra del cable de alimentación al tornillo de conexión a tierra de color • Se requiere un aliviador de tensión verde. homologado por UL. • Use un cable conductor de cobre de 4 hilos Ajuste bien todos los tornillos.
  • Page 69 INSTALACIÓN Conecte el alambre neutro (blanco) al tornillo central del ADVERTENCIA bloque de bornes. Conecte el cable de alimentación al bloque de bornes. NOTA Cada alambre de color debe conectarse al tornillo del mismo color. El alambre del color indicado en el manual La secadora se proporciona con el alambre neutro se conecta al tornillo del bloque del mismo color.
  • Page 70 24 INSTALACIÓN Conexión directa de tres hilos Reinstale la cubierta de acceso al bloque de bornes. • NO se permite una conexión de 3 hilos en Vivo Neutro (negro) construcciones nuevas posteriores al 1 de (blanco) enero de 1996. Vivo (rojo) Tornillo de •...
  • Page 71 INSTALACIÓN Prueba de instalación Verifique la pantalla para ver los resultados. Durante el ciclo de prueba, observe la pantalla de (Revisión de conductos) Flow Sense™ en el panel de control. Si el LED Flow Sense™ no está encendido, el sistema de escape está Después de completar la instalación de la secadora, haga esta en condiciones adecuadas.
  • Page 72 26 INSTALACIÓN Flujo de aire restringido o bloqueado Si el LED de Flow Sense está encendido, revise el sistema de escape para verificar que no haya restricciones Evite tendidos largos o con muchos codos o curvas. ni daños. Repare o reemplace el sistema de escape según sea necesario.
  • Page 73 FUNCIONAMIENTO FUNCIONAMIENTO ADVERTENCIA Para reducir el riesgo de incendio, descargas eléctricas o lesiones personales, lea este manual por completo, incluso las INSTRUCCIONES IMPORTANTES DE SEGURIDAD, antes de operar esta secadora. Cómo usar la secadora Lint 1 Limpie el filtro de pelusa Filter Si el filtro de pelusa no se ha limpiado aún, extráigalo y elimine las pelusas de la última carga.
  • Page 74 • Las prendas húmedas se expandirán cuando se sequen. web de LG en: https://us.smartthinq.com/images/pdfmanual/ No sobrecargue la secadora; las prendas necesitan de DR_TD27_WIN_ES.pdf o escaneando el código QR. espacio para girar y secarse adecuadamente.
  • Page 75 Siga las instrucciones a continuación para utilizar el método de diagnóstico audible. Aplicación LG ThinQ • Inicie la aplicación LG ThinQ y seleccione la función Smart Diagnosis™ en el menú. Siga las instrucciones para el Instalación de la aplicación LG ThinQ diagnóstico audible provistas en la aplicación LG ThinQ.
  • Page 76 30 MANTENIMIENTO MANTENIMIENTO Mantenimiento de los conductos Se deben revisar los conductos de ventilación para verificar Limpieza regular que no tengan acumulación de pelusa una vez por mes y se deben limpiar, al menos, una vez por año. Si se percibe una reducción notoria del flujo de aire o del desempeño de secado, ADVERTENCIA revise los conductos de inmediato para verificar que no estén...
  • Page 77 SOLUCIÓN DE PROBLEMAS SOLUCIÓN DE PROBLEMAS Preguntas frecuentes Cuando presiono un botón, ¿por qué la secadora emite un pitido y luego no sucede nada? La función Control Lock está activada. Para desactivar Control Lock, encienda la secadora y, luego, mantenga presionado el botón con la indicación *Control Lock en él o debajo de él durante 3 segundos.
  • Page 78 32 SOLUCIÓN DE PROBLEMAS Antes de llamar al servicio técnico Su secadora está equipada con un sistema de monitoreo de errores automático para la detección y el diagnóstico de problemas en una etapa temprana. Si su secadora no funciona correctamente o no funciona en absoluto, consulte la siguiente información antes de llamar al servicio técnico.
  • Page 79 SOLUCIÓN DE PROBLEMAS Problema Causa posible Soluciones La ropa tarda demasiado Los conductos de escape están Verifique que los conductos de escape se tiempo en secarse. bloqueados, sucios o el tendido de los encuentren configurados correctamente y no conductos es demasiado extenso. tengan desechos, pelusa ni obstrucciones.
  • Page 80 34 SOLUCIÓN DE PROBLEMAS Problema Causa posible Soluciones La ropa tarda demasiado La opción de ahorro de energia (Energy Si utiliza el ciclo Algodon/Normal, desactive la tiempo en secarse. Saver) está seleccionada (sur certains opcion de ahorro de energia. Esta opcion permite modèles) reducir el consumo de energia, ya que incorpora una seccion de secado poraire al comienzo del...
  • Page 81 SOLUCIÓN DE PROBLEMAS Rendimiento Problema Causa posible Soluciones Manchas de grasa o No se usó correctamente el suavizante Confirme y siga las instrucciones provistas por el suciedad en la ropa. de ropa. fabricante del suavizante. Se están secando juntas ropa limpia y Use la secadora para secar prendas limpias sucia.
  • Page 82 36 SOLUCIÓN DE PROBLEMAS Problema Causa posible Soluciones Exceso de estática en la No se usó suavizante de ropa o no se Use suavizante de ropa o la opción STATIC ropa después del secado. lo usó adecuadamente. SHIELD, si su secadora la incluye, para reducir la electricidad estática. Asegúrese de seguir las instrucciones del fabricante.
  • Page 83 SOLUCIÓN DE PROBLEMAS Códigos de error Problema Causa posible Soluciones Código de error: tE1 a tE7. Falla del sensor de temperatura. Apague la secadora y llame al servicio técnico. La pantalla muestra el El cable de alimentación no está bien Revise la conexión del cable de alimentación al código de error: PS (solo conectado.
  • Page 84 38 SOLUCIÓN DE PROBLEMAS Problema Causa posible Soluciones La pantalla indica d90, d95. Los conductos están bloqueados en un No utilice la secadora hasta que el sistema 90 %-95 %. (El código de error “d90” o de escape haya sido limpiado y/o reparado. “d95”...
  • Page 85 TITULADA “PROCEDIMIENTO PARA RESOLVER CONFLICTOS”. Si su secadora LG (el “Producto”) fallara debido a defectos de materiales o de fabricación en el uso doméstico normal, durante el período de garantía que se establece a continuación, LG tendrá la opción de reparar o reemplazar el producto.
  • Page 86 PARA OBTENER SERVICIO EN GARANTÍA E INFORMACIÓN ADICIONAL Para información adicional del producto, visite el sitio web de LG en http://www.lg.com Para asistencia sobre cómo utilizar este producto o para programar una visita de servicio, contacte a LG Electronicos al 1-800-243-0000.
  • Page 87 Aviso de disputa. En caso de que usted desee iniciar un procedimiento de arbitra escrito al menos 30 días antes de iniciar el arbitraje enviando una carta a LG a LG Electronics, USA, Inc. Atención: Legal Department- Arbitration 111 Sylvan Ave, Englewood Cliffs, NJ 07632.
  • Page 88 Exclusión. Usted puede quedarse fuera de este procedimiento de resolución de la disputa. Si se excluye, ni usted ni LG a LG, en un lapso de hasta 30 días continuos, contados a partir de la fecha de la primera compra del consumidor del producto, ya sea por: (i) el envío de un correo electrónico a optout@lge.com con el siguiente Asunto: “Exclusión del...
  • Page 89 Memo...
  • Page 90 Memo...
  • Page 91 Memo...
  • Page 92 LG Customer Information Center 1-800-243-0000 1-888-542-2623 CANADA This product qualifies for ENERGY STAR in the “factory default (Home Use)” setting. Changing the factory default Register your product Online! settings or enabling other features may increase power consumption that could exceed the limits necessary to www.lg.com...
  • Page 93 Scan to see the online manual. OWNER'S MANUAL WASHING MACHINE Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH WT7005C* / WT7155C* www.lg.com MFL68267091 Copyright © 2020-2022 LG Electronics Inc. All Rights Reserved. Rev.02_112522...
  • Page 94 Sorting Laundry Loading the Washer Adding Cleaning Products Control Panel Wash Cycles Cycle Modifiers Options and Extra Functions 30 SMART FUNCTIONS LG ThinQ Application Smart Diagnosis Function 31 MAINTENANCE Regular Cleaning Periodic Maintenance Care in Cold Climates 36 TROUBLESHOOTING Before Calling for Service...

  • Page 95: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
  • Page 96 • If the product has been submerged in water, sitting in standing water, or waterlogged, do not come in contact with the product and immediately contact an LG Electronics customer information center for instructions before resuming use.
  • Page 97 IMPORTANT SAFETY INSTRUCTIONS • Do not modify or extend the power cord. • If the electrical supply cord is damaged, it must only be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. •...

  • Page 98: Caution Statements

    IMPORTANT SAFETY INSTRUCTIONS CAUTION STATEMENTS CAUTION • To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation • Install the product on a firm and level floor. Operation •...

  • Page 99: Product Overview

    • For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction, property damage or bodily injury caused by the use of separately purchased unauthorized components, parts, or non-LG products. Front View...
  • Page 100 PRODUCT OVERVIEW Accessories Required Accessories (sold separately) Included Accessories Tie Strap Hot and Cold Water Hoses Product Specifications The appearance and specifications listed in this manual may vary due to constant product improvements. Model WT7005C* / WT7155C* Electrical Requirements 120 VAC @ 60 Hz Min.

  • Page 101: Installation

    INSTALLATION INSTALLATION Before Installing WARNING • Moving or installation of the appliance requires two or more people. Failure to follow these instructions may result in injury. • Store and install the appliance where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.

  • Page 102: Choosing The Proper Location

    10 INSTALLATION Connecting to the Power Supply Final Installation Check Tools Needed Pliers Flat-Blade Screwdriver Level Choosing the Proper • The washer must be installed on firm flooring to minimize vibration during the spin cycle. Location Concrete flooring is best, but a wood floor is sufficient, provided it is built to FHA standards.

  • Page 103: Unpacking And Removing Shipping Material

    • Do not reuse old hoses. Use only new hoses when installing the washer. Old hoses could leak or burst causing flooding and property damage. Contact an LG Customer Information Center for assistance in buying hoses.

  • Page 104: Connecting The Drain Hose

    12 INSTALLATION • Connect the blue hose to the cold water NOTE faucet and the red hose to the hot water faucet. • Periodically check the hoses for cracks, leaks, and wear, and replace the hoses every five years. • Do not stretch the water hoses intentionally, and make sure that they are not pinched, crushed or kinked by other objects.

  • Page 105: Leveling The Washer

    INSTALLATION hose can result in flooding and property NOTE damage. • If the drain is large enough for the flange on the hose to fit inside, then do not insert the flange NOTE more than 1 - 2 inches into the drain. •...

  • Page 106: Final Installation Check

    14 INSTALLATION How to Level the Washer the top of the lid. Using these surfaces will result in the washer being unlevel. Position the washer in its final location. • Take special care not to pinch, strain, or crush the water and drain hoses. If you have a carpenter’s level , you can use it to check that the washer is level.
  • Page 107 INSTALLATION • Connect this appliance to a grounded outlet Press the Start/Pause button. conforming to the rating prior to use. Failure to • The test will run for about 3 minutes. do so may result in fire, electric shock, or •...

  • Page 108: Operation

    16 OPERATION OPERATION Before Use Adjust settings. • Default settings for the selected cycle can be changed, if desired, using the cycle WARNING modifier and option buttons. • To reduce the risk of fire, electric shock, or injury • Not all modifiers and options are available to persons, read the SAFETY INSTRUCTIONS on all cycles.

  • Page 109: Sorting Laundry

    OPERATION Sorting Laundry • Use the Bedding cycle for buoyant or nonabsorbent items such as pillows or comforters. Failure to follow this caution can Grouping Similar Items result in leakage. For the best washing results, and to reduce the • Clothing or articles that are waterproof or water possibility of damage to clothing, sort clothing into resistant must be washed in the Waterproof loads made up of similar items.

  • Page 110: Loading The Washer

    18 OPERATION Loading the Washer Bulky Items • Do not wash entire pillows or cushions. Remove General Tips pillow or cushion inserts and wash the covers only. • Check and empty pockets. Paper clips, coins, • Use the Bedding cycle for large or bulky items matches, and other items can damage clothing such as poly-filled jackets, comforters, pillows, and the washer.

  • Page 111: Adding Cleaning Products

    OPERATION • To reduce tangling, load items loosely in even • Never use more than the maximum amount of piles surrounding the agitator. detergent recommended by the manufacturer. Using too much detergent can lead to oversudsing, poor rinsing, detergent buildup in clothing, and residue buildup that can contribute to odors in the washer.
  • Page 112 20 OPERATION • The detergent is added to the load at the NOTE beginning of the cycle. Always use HE (High- Efficiency) detergent with your washer. • Follow the manufacturer’s recommendations when adding cleaning products. • Do not exceed the maximum fill line. Using too much detergent can result in detergent buildup in clothing and the washer.
  • Page 113 OPERATION cause the bleach to be dispensed immediately. • The dispenser cover cannot be removed. To Using too much bleach can damage fabrics. clean the cover, wipe it with a damp paper towel. • Never pour undiluted liquid chlorine bleach directly onto the load or into the tub.

  • Page 114: Control Panel

    22 OPERATION Control Panel Control Panel Features Power On/Off Button • Press this button to turn the washer on or off. • Pressing this button during a cycle will cancel that cycle and any load settings will be lost. • The door will unlock after a brief pause. NOTE •...
  • Page 115 OPERATION Time and Status Display Cycle Status Indicators • These LEDs will blink when a cycle is selected to indicate which stages will run. • When a cycle is running, the LED for the active stage will blink, and the LEDs for the remaining stages will remain steady.

  • Page 116: Wash Cycles

    24 OPERATION Wash Cycles The wash cycles are designed for specific types of wash loads. Select the cycle that best matches the load contents for maximum wash performance and fabric care. See the Sorting Laundry section for best results, and follow the fabric care labels on your garments. For a guide to fabric care symbols, see the Sorting Laundry section.
  • Page 117 OPERATION Cycle Waterproof Description Suitable for washing waterproof items such as water resistant clothing, mattress covers, outdoor clothes, and plastic mats. (less than 14 lb) NOTE • Do not use any other wash cycle to wash waterproof items. • Do not use this cycle to wash a mixed load of waterproof and non-waterproof items.
  • Page 118 26 OPERATION Cycle Tub Clean Description This is a special cycle designed to clean the inside of the washer. Available Options † This option is automatically included in the cycle and cannot be deselected. NOTE • The Delay Wash and Extra Rinse can be selected for every cycle in this table. Cycle Cold Wash Deep Fill...

  • Page 119: Cycle Modifiers

    OPERATION Cycle Modifiers • Press the Spin button repeatedly until the desired speed is selected. • Some fabrics, such as delicates, require a slower About Modifier Buttons spin speed. To protect your clothing, not all spin Each cycle has default settings that are selected speeds are available for all cycles.
  • Page 120 28 OPERATION Delay Wash • Selecting this option increases the water supplied during rinsing. The water supplied Once you have selected the cycle and other during washing is not increased. settings, press this button to delay the start of the •...
  • Page 121 OPERATION Control Lock NOTE Use this function to disable the controls. This • This washer is equipped with a special drain function can prevent children from changing feature that is designed to make your washer as cycles or operating this washer. safe as possible.

  • Page 122: Smart Functions

    Using Audible Diagnosis to Diagnose Issues Follow the instructions below to use the audible diagnosis method. • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

  • Page 123: Maintenance

    MAINTENANCE MAINTENANCE WARNING • To reduce the risk of fire, electric shock, or injury to persons, read this entire owner’s manual, including the SAFETY INSTRUCTIONS, before operating this appliance. • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
  • Page 124 32 MAINTENANCE Leaving the Lid Open • For other tub cleaning products, follow the cleaner manufacturer’s instructions and After you finish using the washer, leave the lid recommendations. open overnight to allow air to circulate and dry the • Do not exceed the maximum fill line when tub.
  • Page 125 MAINTENANCE Wipe off any moisture with a dry towel or WARNING cloth after cleaning. • The inlet screens protect the delicate parts of the inlet valve from being damaged by particles that To clean the drawer opening, use a small, could enter the valves with the water supply.

  • Page 126: Care In Cold Climates

    34 MAINTENANCE preferably with the faucets wide open for Press the Start/Pause button to start the maximum flow. drain pump for 1 minute. • This will expel some of the antifreeze, NOTE leaving enough to protect the washer from damage. •...
  • Page 127 MAINTENANCE Press and hold the Spin button for 3 seconds to operate Spin Only cycle for draining and spinning. Press the Start/Pause button and check that the water fills properly. When the Drain Hose is Frozen Pour hot water in the washer tub and close the lid.

  • Page 128: Troubleshooting

    36 TROUBLESHOOTING TROUBLESHOOTING The washer is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the washer does not function properly or does not function at all, check the following before you call for service. Before Calling for Service Error Messages Problem...
  • Page 129 TROUBLESHOOTING Problem Possible Cause & Solution The control lock function is on to prevent anyone from changing cycles or operating the washer. CONTROL LOCK • Turn off the control lock function in the control panel. See Control Lock under Options FUNCTION and Extra Functions.
  • Page 130 • Mechanical failure CLUTCH ERROR • Unplug the washer and call for service. Supply voltage is not correct. • Please call LG service center. You can find your local LG service center phone number on SUPPLY VOLTAGE the back cover page. ERROR...
  • Page 131 TROUBLESHOOTING Problem Possible Cause & Solution Vibrating noise Not all leveling feet are resting firmly and evenly on the floor. • See Leveling the Washer in INSTALLATION. Floor is not rigid enough. • Make sure that the floor is solid and does not flex. See Flooring in INSTALLATION. Squeaking noise Packaging materials were not removed.
  • Page 132 40 TROUBLESHOOTING Problem Possible Cause & Solution Washer will not turn Power cord is not properly plugged in. • Make sure that the plug is plugged securely into a grounded, 3-prong, 120-VAC, 60 Hz outlet. House fuse is blown, circuit breaker has tripped, or power outage has occurred. •...
  • Page 133 TROUBLESHOOTING Problem Possible Cause & Solution Washer will not Extremely low water pressure. operate. • Check another faucet in the house to make sure that household water pressure is adequate. Washer is too cold. • If the washer has been exposed to temperatures below freezing for an extended period of time, allow it to warm up before pressing the Power button.
  • Page 134 42 TROUBLESHOOTING Performance Problem Possible Cause & Solution Wrinkling Washer is not unloaded promptly. • Always remove items from the washer as soon as the cycle is complete. Washer is overloaded. • The washer can be fully loaded, but the tub should not be tightly packed with items. The lid of the washer should close easily.

  • Page 135: Limited Warranty

    Should your LG Washer (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and used within the United States including U.S.
  • Page 136 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
  • Page 137 If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.
  • Page 138 46 LIMITED WARRANTY You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty.

  • Page 139: Canada

    ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Should your LG Washer ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair, replace or pro rate the Product upon receipt of proof of the original retail purchase.
  • Page 140 (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.
  • Page 141 If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein.
  • Page 142 Except as otherwise provided for, LG waives any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.
  • Page 143 Memo...
  • Page 144 LG Customer Information Center For inquiries or comments, visit www.lg.com or call: U.S.A. 1-800-243-0000 1-888-542-2623 CANADA Register your product Online! www.lg.com...

This manual is also suitable for:

Dlg7101 seriesDle7150 seriesDlg7151 seriesDle7000 seriesDlg7001 seriesDle7100 series

Table of Contents
