Models:
14308 – 3,400 RPM, "Single Motor", Standard Duty
14309 – 3,400 RPM, "Dual Motor", Heavy Duty
14310 – 3,400 RPM, "Single Motor", w/ platen, Standard Duty
14311 – 3,400 RPM, "Dual Motor", w/ platen, Standard Duty
14312 – 950 RPM, "Single Motor", Extra Slow Speed
14313 – 950 RPM, "Single Motor", w/ platen, Extra Slow Speed
WARNING
!
Tubing
Motor Assembly
04076 – 3,400 RPM
96060 – 3,400 RPM
96064 – 950 RPM
04076 – 950 RPM
96061 Elbow
96063 Elbow
95536 Screw (4)
14328 Cover
95584 "O" Ring
95164 Pin
01266 Bearing
14329 Shaft
02552 Bearing
95583 Ring
14327 Housing
14332 Dead Handle
Assembly
14064 "O" Ring
14330 Nut
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
Model 14308 — for 2" x 34" belts / Standard Duty
Model 14310 — for 2" x 34" belts / Standard Duty , with 14336 Platen
Model 14312 — for 2" x 34" belts / Extra Slow Speed
Model 14313 — for 2" x 34" belts / Extra Slow Speed, with 14336 Platen
96062 Connector
95559 Screw
14331 Lever
01025 "O" Ring
95560 Bearing
11801 Motor Lock
95392 Screw
14333 Bracket (2)
14348 Plug
01025
"O" Ring
95720 Screw (2)
95333 Pin
95564 Screw (4)
14318 Retainer 95572 Bushing 95288 "O" Ring
Shaded area represents 14334 tension Wrench Assembly.
*See inside for 07167 Throttle Valve and Motor Assemblies.

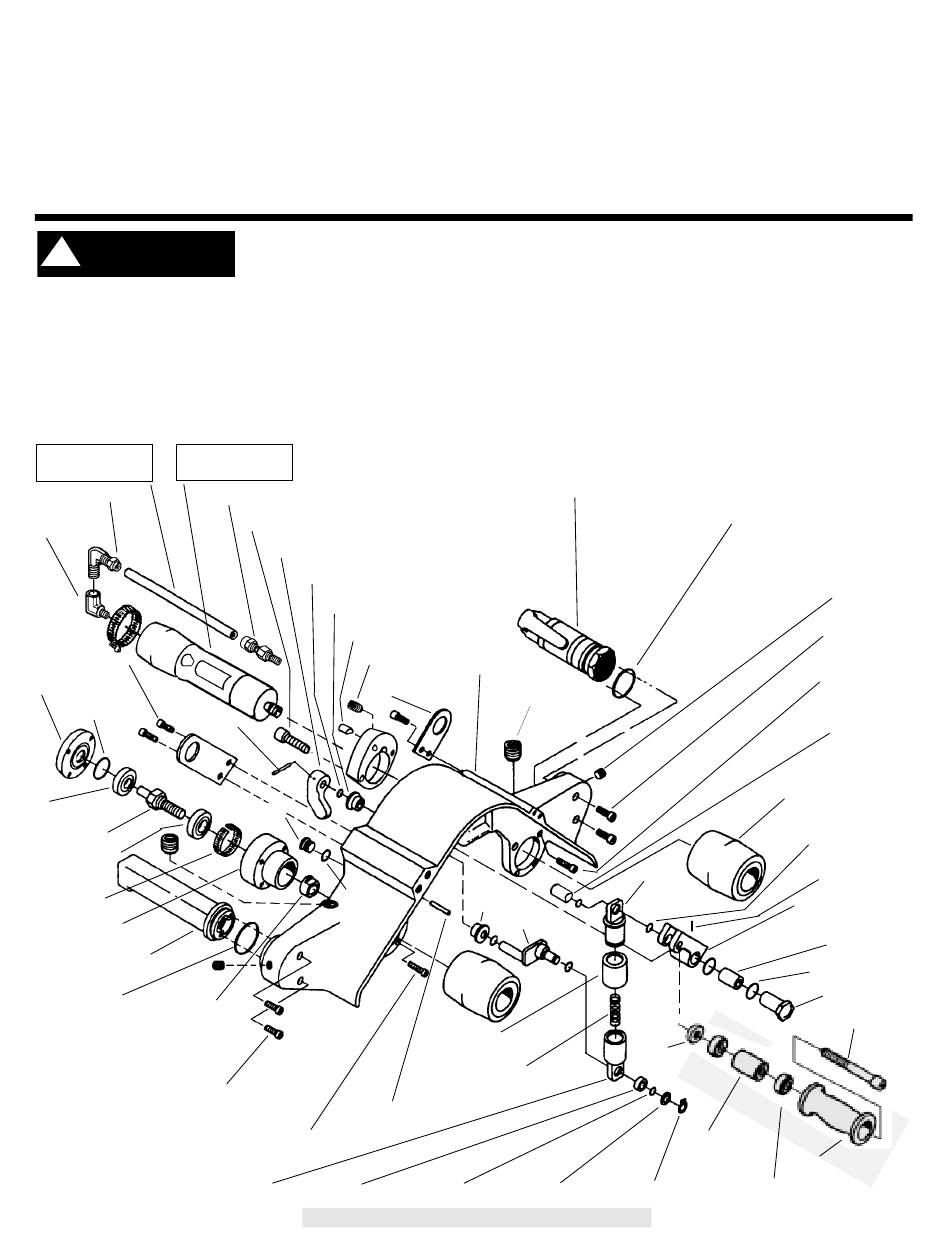

Machine Assembly
* 07167 Throttle Valve Assy.
14320 Housing
95561 Plug (2)
95560
Bearing
14324 Cam
Assy.
14319 Cover
95556 Spring
95557 Washer
Parts Page Reorder No. PD97•98
Effective July, 1997
Slow Speed
Dynangle
Machine and Motor Parts
14064 "O" Ring
14317
Retainer
14347
Spacer
14346 Spacer
95398 Bearing (2)
95558 Retainer Ring
®
II
95562 Plug (2)
95720 Screw (2)
95221 Screw (4)
14325 Bushing
01794 Drive Wheel (2)
95288 "O" Ring (4)
95952 Set Screw
14316 Idle Arm
(Incl. 95555 Bearing)
95555 Bearing
95526 "O" Ring (2)
14343 Step Nut
95565 Screw
14344 Tension Idler
Advertisement
Table of Contents
Related Manuals for Dynabrade Dynangle II 14308
Summary of Contents for Dynabrade Dynangle II 14308
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's Warning/Safety Operating Instructions for more complete safety information.
-
Page 2: Machine Assembly
Machine Assembly Model 14309 — for 2" x 34" belts / Slow Speed Heavy Duty Model 14311 — for 2" x 34" belts / Slow Speed Heavy Duty, with 14336 Platen Tubing 14335 Air Line 95566 Fitting (2) 96060 – 3,400 RPM 04077 Motor Assembly (2) 96064 –... -
Page 3: Maintenance Instructions
2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example : if the tool specification state 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute). - Page 4 04210 – 950 RPM Motor Assembly...
- Page 5 Important: Motor should now be tested for proper operation at 90 PSI. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed.
- Page 6 04211 – 3,400 RPM Motor Assembly...
- Page 7 Important: Motor should now be tested for proper operation at 90 PSI. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed.
-
Page 8: Printed In Usa
Visit our new Web Site via Industry.Net MROP On-Line: http://www.dynabrade.industry.net E-Mail: DynaTalk@aol.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 • Fax: 352 76 84 95 ©...
