Dynabrade 95524 Assembly Instructions

95524 Motor Tune-Up Kit

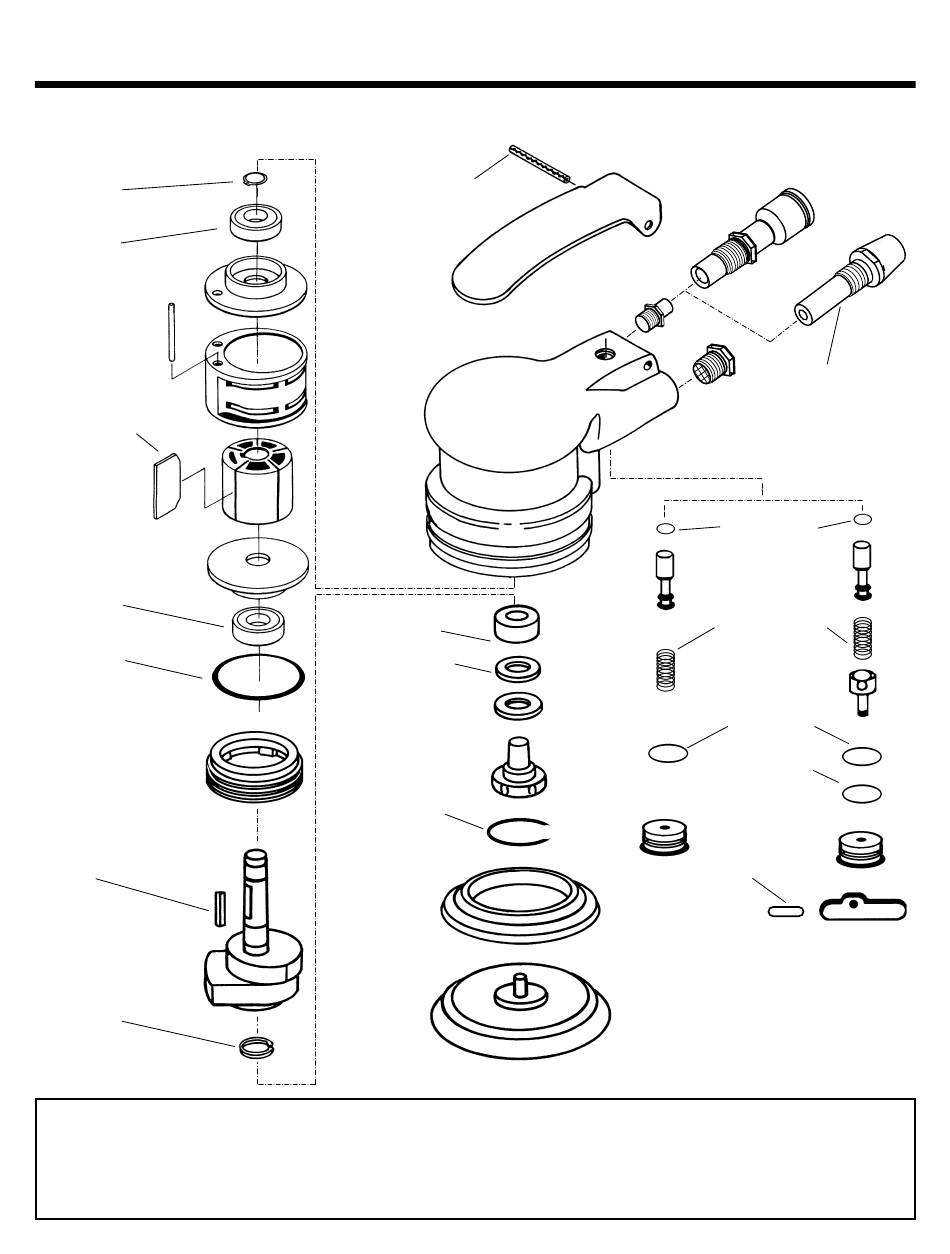

Refer to appropriate parts page for additional parts
identification. Parts included in kit are identified by part number.
95626
Retaining Ring
01206 Bearing
57114
Blade (5) (5/pkg.)
02651 Bearing
50659
Lock Ring Seal
56047
Rotor Key
*95721
Retaining Ring
The regular maintenance of any air tool will contribute to greater efficiency of tool and will prolong tool life. This kit contains replacement parts which are
most susceptible to wear. An air tool may wear differently according to the application and operator. It is, therefore, recommended that while the tool is
disassembled, all other parts not included in this kit be examined for excessive wear and be replaced as required.
NOTICE: Manufacturer's warranty is void if tool is disassembled before warranty expires.
50645 Pin
56052
Balancer Bearing
56053 Bearing Seal
95630 Snap Ring
IMPORTANT:
See reverse side for Assembly/Disassembly Instructions.
Parts Page Reorder No. PD93•08
Effective March, 1993
56079 Muffler Assembly
01020 "O" Ring
01022 Valve Spring
01024 "O" Ring
95523 "O" Ring
95625 Pin
* On previous models, prior to March 1989, please use the
supplied 95629 Screw in place of 95721 Retaining Ring.
On models with Serial Number 89750 and greater,
95721 Retaining Ring not required.
Also included - (1) 95621 Loctite®
Note: Shaded areas represent standard models only.
Loctite is a registered trademark of the Loctite Corp.
(Non-Vac Only)
