ORIGINAL INSTRUCTIONS

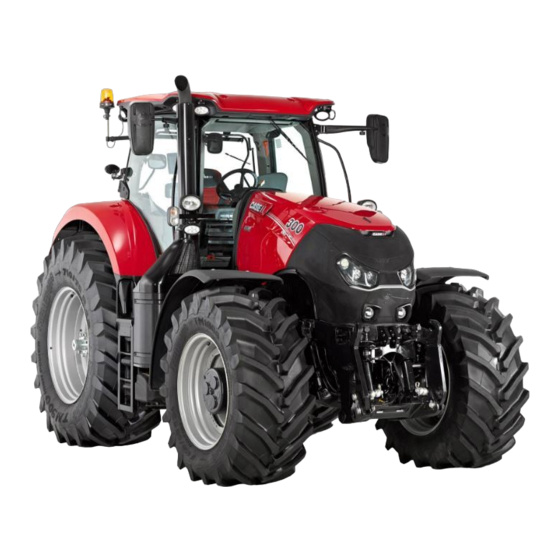

OPTUM 270 CVT
OPTUM 300 CVT
Tier 4B (final)
Tractor
OPERATOR'S MANUAL
Part number 48058874
2
edition English
nd
October 2016
Replaces part number 47891783

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPTUM 270 CVT and is the answer not in the manual?

Questions and answers

Summary of Contents for Case OPTUM 270 CVT

  • Page 1 ORIGINAL INSTRUCTIONS OPTUM 270 CVT OPTUM 300 CVT Tier 4B (final) Tractor OPERATOR’S MANUAL Part number 48058874 edition English October 2016 Replaces part number 47891783...
  • Page 2 Contents 1 GENERAL INFORMATION Metric and imperial units abbreviations........... . . 1-1 To the owner .
  • Page 3 INSTRUCTOR'S SEAT Instructional seat ..............3-22 FORWARD CONTROLS Ignition key .
  • Page 4 Programming the displays ............. 3-83 Alarm functions .
  • Page 5 Headland turn sequence - Quick guide..........6-11 Recording and replaying .
  • Page 6 Settings and adjustments............6-95 Electronic Draft Control (EDC) operation.
  • Page 7 Front wheel track adjustment........... . . 6-177 Front wheel alignment .
  • Page 8 EVERY 10 HOURS OR EACH DAY Check the engine coolant level ............7-18 Check the engine oil level .
  • Page 9 Check the valve tappet clearance ........... . . 7-50 Change the air brake drier reservoir.
  • Page 10 Transmission ..............8-5 Hydraulics .
  • Page 11: General Information

    1 - GENERAL INFORMATION 1 - GENERAL INFORMATION###_1_### Metric and imperial units abbreviations Typical applications Metric unit Imperial unit Name Symbol Name Symbol Area (Land area) acre hectare square meter m² square foot ft² square inch in² square millimeter mm² square inch in²...
  • Page 12 1 - GENERAL INFORMATION Typical applications Metric unit Imperial unit Name Symbol Name Symbol Temperature (other than thermodynamic) degrees Fahrenheit degrees Celsius °C °F Time hour hour minute minute second second Torque (includes bending moment, moment of force, and moment of a couple) newton meter pound foot lb ft...
  • Page 13 1 - GENERAL INFORMATION To the owner General information eration and safe practices, as specified by the manu- facturer in this manual and by the decals on the tractor This Manual has been prepared to assist you in the cor- and the equipment.
  • Page 14: Warranty

    1 - GENERAL INFORMATION When using a high pressure washer, do not stand too and/ or use of ‘non- genuine’ products could have nega- close to the tractor and avoid directing the jet at electronic tive effects upon the design characteristics of your tractor components, electrical connections, breathers, seals, and thereby affect it’s safety.
  • Page 15 Our support email: ebooklibonline@outlook.com...
