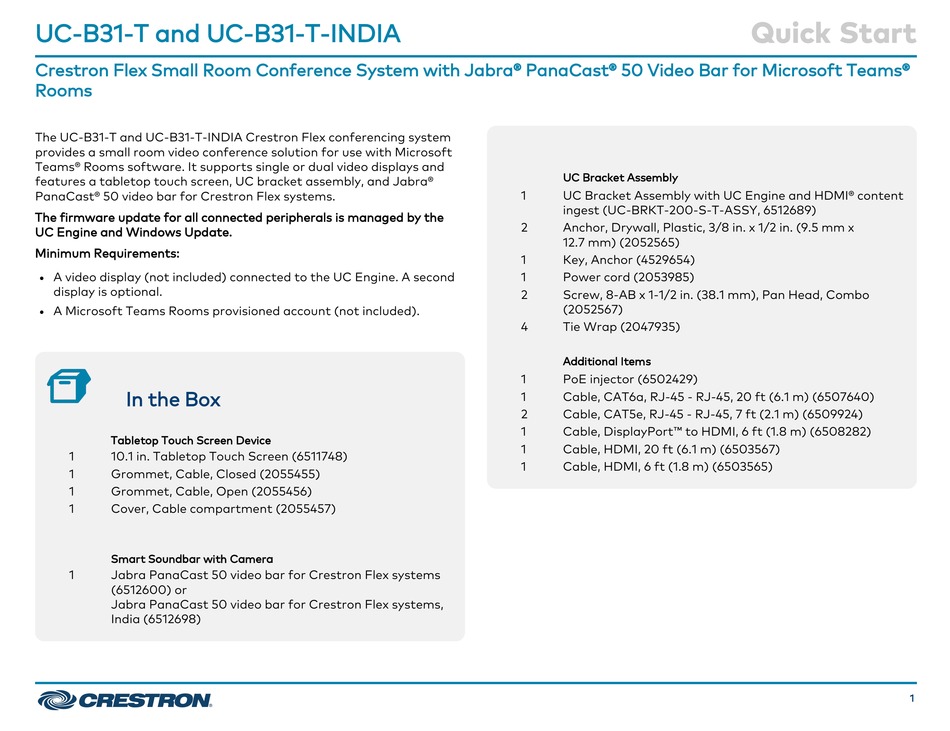

UC-B31-T and UC-B31-T-INDIA
Crestron Flex Small Room Conference System with Jabra® PanaCast® 50 Video Bar for Microsoft Teams®
Rooms
The UC-B31-T and UC-B31-T-INDIA Crestron Flex conferencing system
provides a small room video conference solution for use with Microsoft
Teams® Rooms software. It supports single or dual video displays and
features a tabletop touch screen, UC bracket assembly, and Jabra®
PanaCast® 50 video bar for Crestron Flex systems.
The firmware update for all connected peripherals is managed by the
UC Engine and Windows Update.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Microsoft Teams Rooms provisioned account (not included).
l
In the Box
Tabletop Touch Screen Device
1 10.1 in. Tabletop Touch Screen (6511748)
1 Grommet, Cable, Closed (2055455)
1 Grommet, Cable, Open (2055456)
1 Cover, Cable compartment (2055457)
Smart Soundbar with Camera
1 Jabra PanaCast 50 video bar for Crestron Flex systems
(6512600) or
Jabra PanaCast 50 video bar for Crestron Flex systems,
India (6512698)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-T-ASSY, 6512689)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
1 Power cord (2053985)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 PoE injector (6502429)
1 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
2 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
Quick Start
