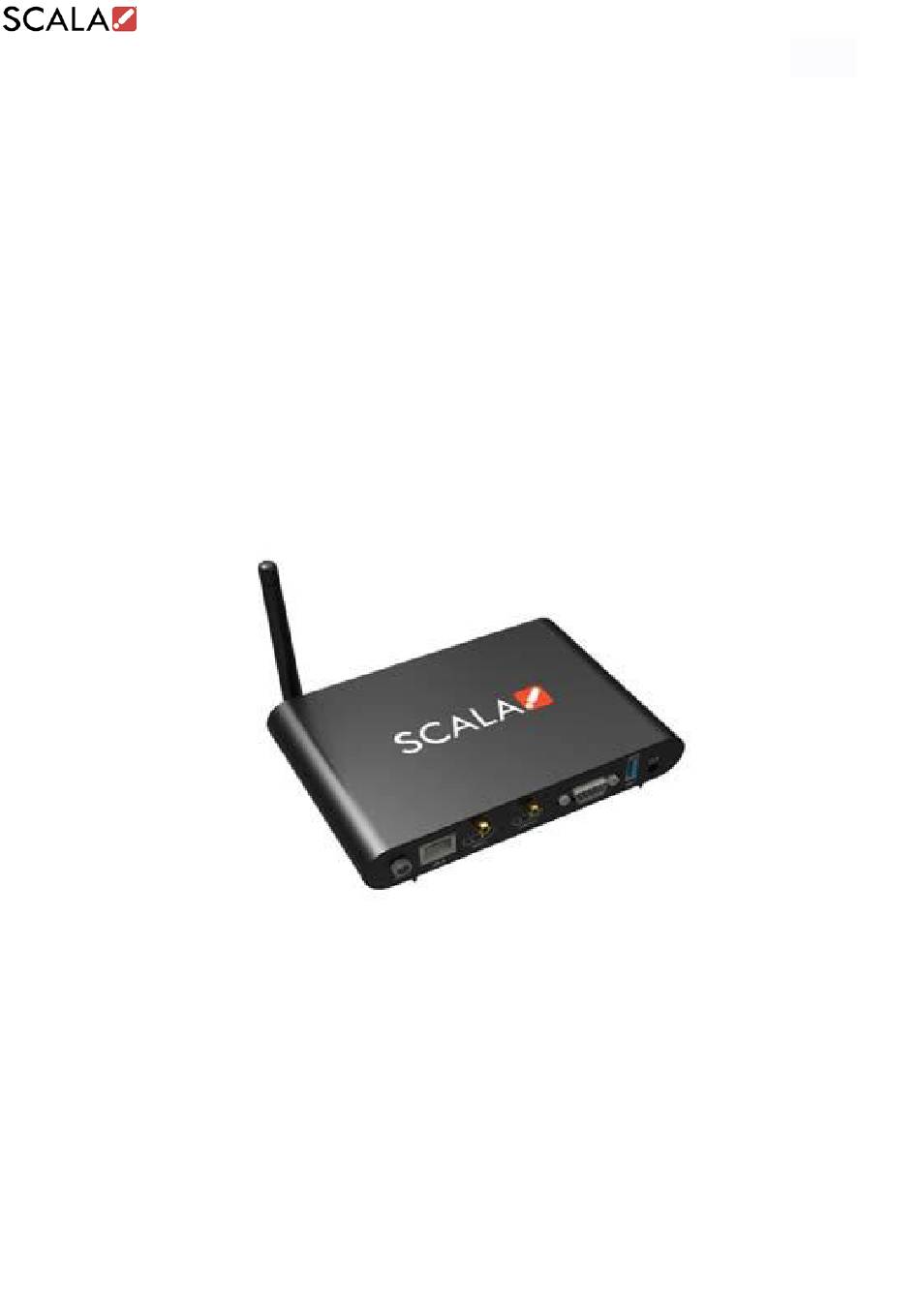

- Page 1 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version RK3399 R PLAYER User Manual 2019 September...
- Page 2 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version 1、Product Overview R PLAYERIis a smart player box that supports Android and Linux operating systems. Customers can develop their own under this system. (for detailed configuration, please refer to the product configuration parameter table of R player Playbox). Customers can use the playback box to provide multimedia content of the display through documents or network Figure 1、Product interface diagram：...
- Page 3 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version 1）、External display： The playback box HDMI out is connected with the external display HDMI in through the HDMI cable to realize the display interface output; The external device can input interface data through the playback box HDMI in, and the playback box can synchronously output the display interface from the HDMI out to the external display.
- Page 4 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version 3）. Wired, wireless networking and WiFi functions: The playback box can be connected to the network through RJ45 port and wifi antenna for network data transmission. Figure 4: wired and wireless networking setting interface entrance...
- Page 5 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version 4）. Audio transmission: The playback box can transmit audio with external playback equipment through aux port. Figure 6: sound adjustmen 5）. Infrared remote control: The playback box is equipped with IR infrared sensor. Through the infrared remote control, you can switch on and off, return to the desktop, mute, move the cursor, switch the interface, return, increase or decrease the output volume, and switch the mouse mode.
- Page 6 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version 7）. Extended infrared remote control: (it needs to be modified professionally, temporarily omitted, you can contact the manufacturer) 8). Extended switch machine: (it needs to be refitted professionally, temporarily omitted, you can contact the manufacturer) 9).
- Page 7 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version R PLAYER Product configuration parameters Spec Date: 10th September, 2019 Scala RK3399 R Player Product Descriptions Rockchip RK3399 ( 28nm HKMG Process ) Six-Core ARM 64-bit processor, up to 2.0GHz Based on Big.Little architecture, Dual-Core Cortex-A72 and Quad-Core...
- Page 8 SCALA Digital Technology(Ningbo) Co., Ltd. ：V1.0 Version information Storage Temp (-15 -- 65 degree) Working Temp (0 -- 50 degree) Storage/Working (10 -- 90﹪ ) Humidity Dimension 156*106*25.5 MM Net Weight 0.478KGS Bluetooth and WIFI can simultaneous transmit, 2.4G WIFI and 5G WIFI can’t simultaneous transmit.
