Scala Inc.
Setting Up the Player-DX (B396)
Device Images
Required for Set-up
Connecting the Cables
Completing Player Setup
AMD Eyefinity
EDID Emulation and Display Continuity
Detailed User Guide
Box Contents
1 Player-DX device
1 Universal wall adapter and country-specific wall plug
2 WiFi antennae
1 plastic bracket and mounting screw for installing an optional internal 2.5" SATA3 storage device
Scala Media Player Guide

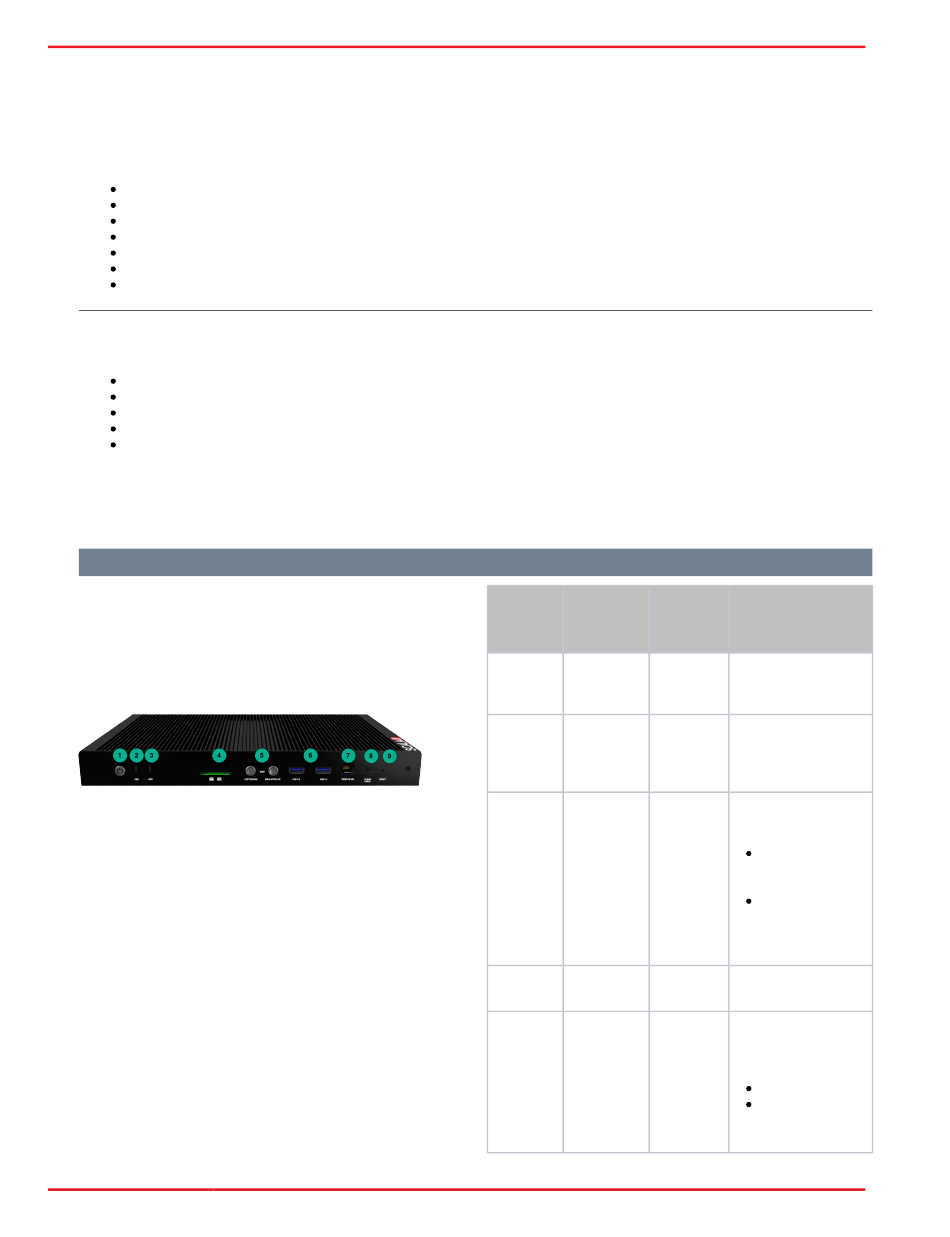

Device Images
Confidential
Front of Device
Number
1
2
3
4
5
© 2020 Scala Inc. All Rights Reserved
Port/Jack
Quantity
Description
/Button
/Indicator
Power
1
Use to manually turn
button
the Scala Media
Player-DX on and off.
SSD
1
Identifies if the solid-
indicator
state drive (SSD) is
active. Indicator light
is white.
WiFi
1
Identifies the status
indicator
of WiFi for the unit:
SD
1
Use to insert an SDH
or SDXC card.
EDID
2
Use for EDID
configuration. Select
from:
Confidential
Green - unit is
connected to
WiFi
Red - unit is not
connected to
WiFi
COPY/ERASE
EMULATION
ON
Page 1 of 5
Advertisement
Related Manuals for Scala B396
Summary of Contents for Scala B396
- Page 1 WiFi Red - unit is not connected to WiFi Use to insert an SDH or SDXC card. EDID Use for EDID configuration. Select from: COPY/ERASE EMULATION Confidential © 2020 Scala Inc. All Rights Reserved Page 1 of 5...
-
Page 2: Back Of Device
Antennae Use to insert included antennae. Required for Set-up In order to set-up the Scala Media Player-DX device, you will need: Display monitors RJ-45 CAT6 Ethernet cable for wired connections 100V to 240V (50 Hz or 60 Hz) electrical outlet 2 HDMI cables three meters or less that are rated as HDMI 2.0 compliant... -
Page 3: Connecting The Cables
Plug the power cord into an appropriate 100V to 240V (50 Hz or 60 Hz) electrical outlet Once the unit is plugged in, the Scala Media Player-DX should auto power on and boot into the customized Windows® operating system. If the unit does not automatically start, press the power button on the front of the device. - Page 4 PDF document below. Detailed User Guide The document below provides detailed setup instructions and general information about both the Player-DX and Player-Q (these players have similar internal components). Confidential © 2020 Scala Inc. All Rights Reserved Page 4 of 5...
- Page 5 Confidential Scala Inc. Confidential © 2020 Scala Inc. All Rights Reserved Page 5 of 5...
