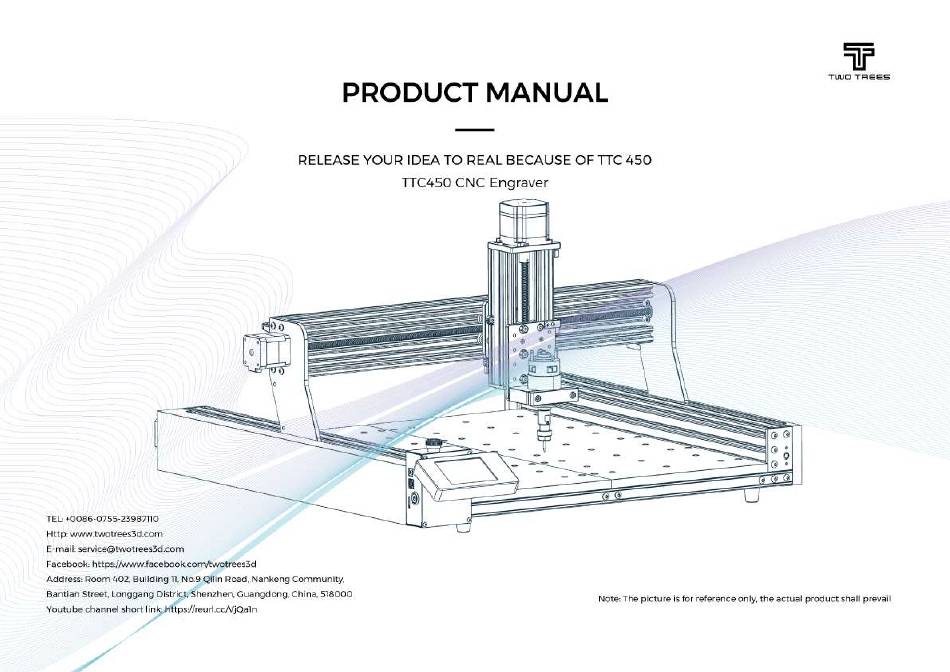

Summary of Contents for TWO TREES TTC450
- Page 2 Safety Warning: 1. When using the machine for the first time, please make sure that the machine installation is firm. 2. When danger occurs, press the emergency stop button quickly. 3. Wear safety glasses when operating the machine. 4. Please use a brush to remove debris, do not blow with your mouth. 5.
- Page 3 TTC450 Part List - Part List------------------------------------------------------------------------------------------------------------------------------------------02 - Know Your CNC Machine -------------------------------------------------------------------------------------------------------------------05 - Set up TTC450 ---------------------------------------------------------------------------------------------------------------------------------06 - Installation of milling cutter-----------------------------------------------------------------------------------------------------------------25 - Fixture installation-----------------------------------------------------------------------------------------------------------------------------26 - Operation Guide -------------------------------------------------------------------------------------------------------------------------------27 - After-Sales Service -----------------------------------------------------------------------------------------------------------------------------32...
- Page 4 TTC450 Part List 2020 Front Crossmember*1 775 spindle motor*1 Power adapter*1 Power cord*1 USB data cable*1 2020 Rear Crossmember*1 2040 Bottom Crossbeam*1 Left Y-axis shield*1 TS35 touch screen kit*1 2020 Bottom Crossmember*2 Z-axis assembly*1 X-axis assembly*1 Left Y-axis assembly*1 ESP32 control box + drag chain*1...
- Page 5 TTC450 Part List 775 motor chuck*1 Y-axis limit switch*2 Z-probe*1 SD card*1 card reader*1 Fixture*6 Density plate*2 polypropylene sheet X-axis stepper motor*1 X-axis limit trigger plate*2 X-axis limit switch*1 File*1 Protective glasses*1 Mainboard fixing piece*2 Coupling*1 ER-11 6MM collet*1 Rubber foot pad*4...
- Page 6 TTC450 Part List Open-end wrench*3 Oblique pliers*1 One-way screwdriver*1 Nylon tie*10 Hexagonal wrench*4 Profile seal*18 M3X5 screw*10 Cup head M3X6 screws*4 Cup head M3X40 screws*2 M4X6 screws*2 M4X25screws*4 M5X6 screws*7 M5X12 screws*4 M5X15 screws*15 M5X20 screws*22 M5X30 screws*16 Cup head M5X12 screws*2...
- Page 7 Know Your Engraving Machine TTC450 1.Z-axis motor ⑫ ⑬ ⑭ ① 2.T8-4 Screw 3.775 spindle motor ② 4.4080U side profile ③ 5.Emergency stop switch 6.DC power interface ④ 7.USB interface 8.TF card slot 9.Engraving platform 10.TS35 touch screen 11.Power switch ⑤...
- Page 8 Set up TTC450 TTC450 Frame Installation Step 1 Required parts -2020 front crossbeam*1 -2020 rear crossmember*1 -2020 bottom crossmember*2 -2040 bottom crossmember*1 -Rubber feet*4 -M5X30 screws*8 -M4X25 screws*4 -2.5 hexagonal wrench -3.0 hexagonal wrench When the frame is installed with the profile plane facing upwards,...
- Page 9 Set up TTC450 TTC450 Platform Installation Step 2 Required parts -Density plate*2 -M5x20 screws*20 -3.0 hexagonal wrench With the surface of the density plate facing upward, screw 20 screws through the density plate into the profile.
- Page 10 Set up TTC450 TTC450 Y-axis installation Step 3 Required parts -Left Y-axis assembly*1 -Right Y-axis assembly*1 -M5X30 screws*8 -M5X20*2 -3.0 hexagonal wrench Lock in the front left and right Y-axis assembly with M5*30 screws first Note: All M5X30 screws are screwed into the holes and then locked.
- Page 11 Set up TTC450 TTC450 X-axis motor installation Step 4 Required parts -X-axis stepper motor*1 -Cup head M3X6 screws*4 -Coupling*1 -2.0 hexagonal wrench Left Y-axis assembly into the stepper motor, note that the motor wiring port facing down Coupling sleeve into the motor shaft, headless...
- Page 12 Set up TTC450 TTC450 X-axis installation Step 5 Required parts -X-axis assembly*1 -M5X15 screws*4 -3.0 hexagonal wrench Note the orientation of the X-axis, with the nut end facing up.
- Page 13 Set up TTC450 TTC450 X-axis installation Step 6 Required parts -X-axis assembly*1 -M5X15 screws*4 -2.0 hexagonal wrench -3.0 hexagonal wrench ①Push the X-axis carriage to the left and expose the screw about 5cm ②Manually turn the left Y-axis to align the left and right Y-axis ③M5X15 lock the right side of X-axis profile...
- Page 14 Set up TTC450 TTC450 Z-axis installation Step 7 Required parts -M5X20 cup head screws*4 -Z-axis assembly*1 -2.0 hexagonal wrench -4.0 hexagonal wrench 2.0 hexagonal wrench loosen the two headless hexagon thread of the coupling. The carriage moves down to reveal the...
- Page 15 Set up TTC450 TTC450 X-axis limit installation Step 8 Required parts -X-axis limit switch*1 -M5X15 screws*2 -3.0 hexagonal wrench Screw the M5X6 screw through the x limit fixing plate and then into the T-nut. Insert it into the profile slot on the back of Z-axis and tighten it.
- Page 16 Set up TTC450 TTC450 X-axis limit trigger plate installation Step 9 Required parts -M5X6 cup head screws*2 -T-nut 20-M5*2 -X-axis limit trigger plate*2 -3.0 hexagonal wrench Insert M5X6 screws through the X-axis limit trigger plate and then screw into the T-nuts.
- Page 17 Set up TTC450 TTC450 Installation of Y-axis limit switch Step 10 Required parts -M5X6 screws*2 -Y-axis limit switch*2 -3.0 hexagonal wrench M5X6 screws are screwed into the profile after passing through the limit switch. Wire length 5CM Wire length 60CM...
- Page 18 Set up TTC450 TTC450 Drag chain installation Step 11 Required parts -M3X5 screws*5 -M4X6 screws*2 -2.0 hexagonal wrench -2.5 hexagonal wrench Lock in the order of ①, ②, and ③. ① ② ③...
- Page 19 Set up TTC450 TTC450 Control box installation Step 12 Required parts -M3X5 screws*2 -M5X6 screws*2 -T-nut 20-M5*2 -Mainboard fixing piece*2 -2.0 hexagonal wrench -3.0 hexagonal wrench First, screw the M5X6 screw through the motherboard fixing piece and then screw in the T-nut.
- Page 20 Set up TTC450 TTC450 Y-axis guard and drag chain installation Step 13 Required parts -M3X5 screw*1 -Cuphead M3X40 screws*2 -Left Y-axis guard*1 -2.0 hexagonal wrench -2.5 hexagonal wrench ① first Y-axis limit switch connected to the control box terminals to plug the wireless sequence requirements ②Snap the drag chain of one end of the control box into the left Y-axis guard plate.
- Page 21 Set up TTC450 TTC450 Y-axis guard plate fixing Step 14 Required parts -M5X15*5 -3.0 hexagonal wrench Lock the M5X15 screw through the Y-axis guard into the profile. The drag chain harness is threaded through the hole.
- Page 22 Set up TTC450 TTC450 Y-axis motor cable fixed Step 15 Required parts -Profile seal*3 Insert the Y-axis motor wire into the bottom profile slot The profile seal is pressed firmly. The motor line is inserted into the Y-axis stepper motor.
- Page 23 Set up TTC450 TTC450 X-axis motor cable fixed Step 16 Required parts -Nylon ties*2 Insert the motor cable into the X-axis stepper motor. Tie the wire harness with nylon ties.
- Page 24 Set up TTC450 TTC450 Installation of TS Touch Panel Step 17 Required parts -M3X5 screws*2 -TS35 touch screen kit*1 -2.0 hexagonal wrench Control box row cable into the back of the touch screen, M3X5 screws through the fixing plate to lock the screen.
- Page 25 Set up TTC450 TTC450 775 motor chuck installation Step 18 Required parts -775 spindle motor*1 -775 motor chuck*1 -3.0 hexagonal wrench -4.0 hexagonal wrench -M5X6 screw*1 -M5X12 screw*2 -Cup head M5X12 screw*2 Plug in the 775 motor cable,Z-axis stepper motor cable and Z- axis,X-axis limit cable .click the X+axis to move to the right.Click...
- Page 26 Set up TTC450 TTC450 Test Step 19 Make sure the emergency stop switch is popped up, plug in the power and press the metal switch, the green light will be on.If the screen lights up, the power on is normal. If the screen does not light up, after power off, exchange the screen line position to reboot.
- Page 27 Installation of milling cutter TTC450 Note: The clamping length of the milling cutter is approximately 1/2 of the total length of the milling cutter. ER11 chuck CNC tool...
- Page 28 Fixture installation TTC450 The workpiece is clamped by adjusting the butterfly nut. Note: The tool path bypasses the fixture to avoid collisions.
- Page 29 Operation Guide TTC450 Engraving with TS35 screen Save the NC file to SD card, Power on Click Sculpture button choose NC file Move the XYZ-axis to the origin.Click XY Clear and Z Clear origin Click Sculpture button again start engraving...
- Page 30 Operation Guide TTC450 Engraving with computer 1 . Assembly Please reference 《Woodpecker CNC Assembly Guide》. 2. Debugging Install CH340 drive Program. Right-click My Computer-Management-Equipment manager-Port, check whether there is Double-click CH340SER --Click Installation— Wait for the CH340 Port number. If installation success will appear COMx, remember the number after installation program to end.
- Page 31 Operation Guide TTC450 Use Candle(Control Software) to connect machine: The port number must be the same as last step, otherwise software can not connect the machine. Open Control Software Candle. This software is for If connect machine successfully the main interface will display: [CTRL+X] < Grbl 0.9j ['$' for control CNC 3 Axis carving.
- Page 32 Operation Guide TTC450 If you click the button,The machine is not moving in the corresponding numberical direction,that means the stepper motor in this direction is reversed . Please exchange Direction check: check whether the machine moves the same the motor wire on the control board.
- Page 33 Operation Guide TTC450 When you do last step please make the spindle running because the cutter may touch the object you want to engrave. After first testing, then you can try to make your own gcode for engraving.Gcode is the command that make the machine move. It should be a .nc file.
- Page 34 Set up TTC450 TTC450 AFTER-SALES SERVICE The guarantee period is 12 months from the date of purchase. 1.Mlssing/Dameged/DefeetiveParts Within 7 days of the date of receipt, we will roplace any parts for free of charge including shipping fees. After 7 days of the date of receipt, we will replace any parts for free of charge. But you need to pay the shipping fees.
