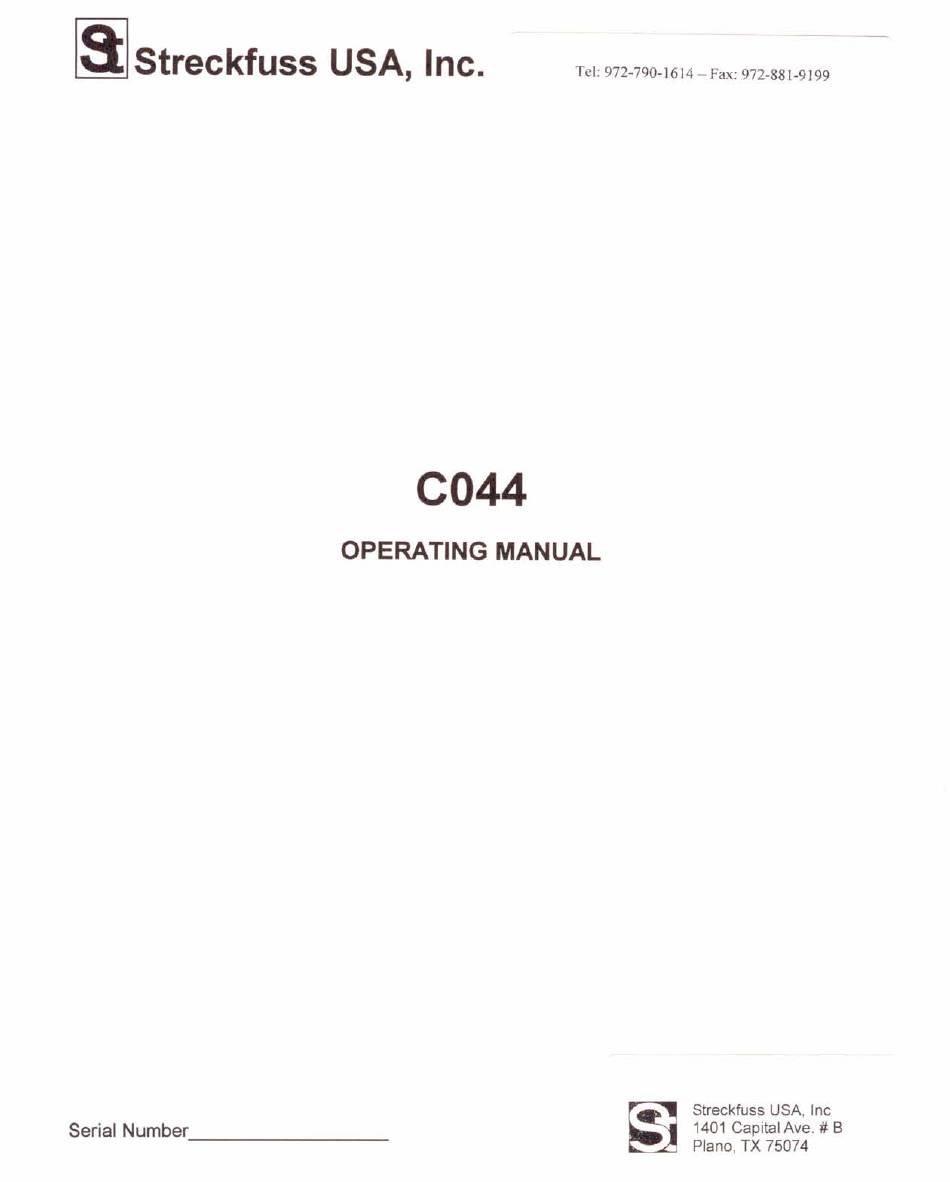

- Page 1 ISIStreckfuss USA, Inc. Tel: 972-790-1614 - Fax: 972-881-9 C044 OPERATING MANUAL Streckfuss USA. Inc 1401 Capital Ave. Serial Number Plano, TX 75074...
- Page 2 C044 TABLE OF CONTENTS GENERAL DESCRIPTION SETTING UP THE MACHINE III. ADJUSTMENTS OPERATION PREVENTIVE MAINTENANCE VII. RECOMMENDED SPARE PARTS VIII. PNEUMATIC DIAGRAM...
- Page 3 Page 1 C044 GENERAL DESCRIPTION: The Streckfuss model C044 is designed to cut and form the leads of loose axial components for vertical mounting. A variety of form shapes are available through the use of interchangeable sets. Set up adjustments are simple to make and secured to provide accurate forming on every component.
- Page 4 Page 2 C044 III. ADJUSTMENTS: Form Placement or Cut Length When straight cut dies are installed in the machine this adjustment determines the distance from the end of the component body to the cut point on the lead. When forming dies are installed in the machine this adjustment will determine where on the lead the form is placed.
- Page 5 Page 3 C044 III. ADJUSTMENTS: (con't) B. Component Positioning When making the fonn placement or cut length adjustment the dies must be positioned to allow a minimum clearance of .075" between the bending mandrel and the component body as shown in figure 3.
- Page 6 Page 4 C044 III. ADJUSTMENTS: (con't) Form Exaggeration And Lead Span The exaggeration of the form can be adjusted by loosening the screw and turning the eccentric shown in figure 4 in the direction as needed. Increasing or decreasing the form exaggeration allows the lead to be "custom fit"...
- Page 7 Page 5 C044 OPERATION: After making the adjustments the C044 is ready to operate. Position a component in the tooling as described in section III-B. Depress and hold the foot pedal until the component leads have been cut, formed and bent into the 180 configuration.
- Page 8 • « ••• '" <C <.' J « "- >- ::::l « CDu) •.."OC\l c· "_ lXl >.' <.' J ...J "0' ='" c)'g > > -lXl •... 8<.'J "iij '" « •...
