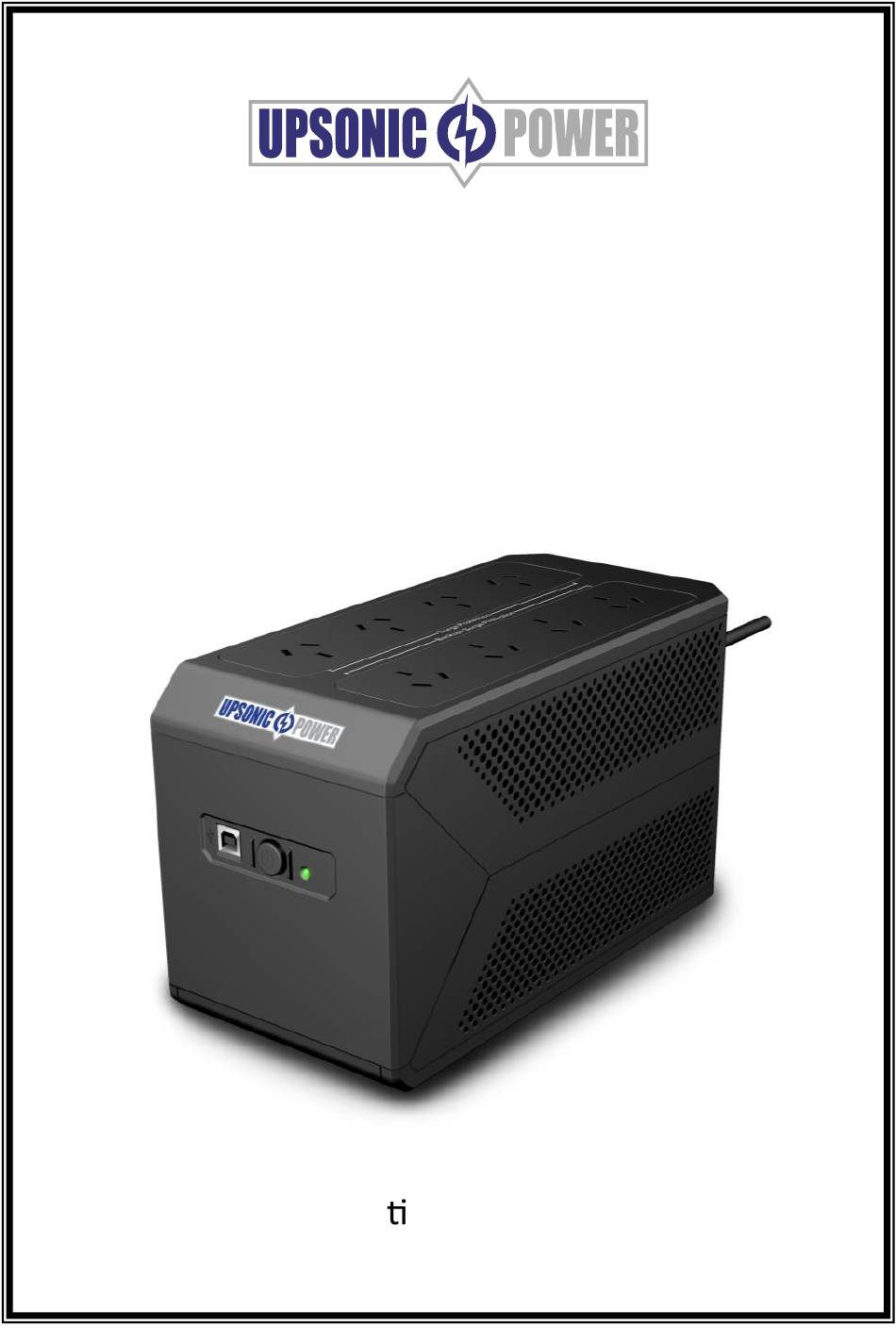

- Page 1 RELIABLE POWER SOLUTIONS FOR A NON-STOP WORLD Orion 850 User Manual Uninterrup ble Power Supply...
- Page 2 Safety – CAUTION ⚫ This UPS u lizes voltages that may be hazardous. Do not a empt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs. ⚫ Internal ba ery voltage is 12Vdc. Sealed, lead-acid, 6 cells ba ery. ⚫...
- Page 3 ⚫ During the installa on of this equipment it should be assured that the sum of the leakage currents of the UPS and the connected loads does not exceed 3.5mA. ⚫ A en on, hazardous through electric shock. Also with disconnec on of this unit from the mains, hazardous voltage s ll may be accessible through supply from ba ery.
- Page 4 SYSTEM DESCRIPTION Front panel: 1. USB Port 2. LED Indicators – AC Mode: Green ligh ng Ba ery Mode: Green flashing 3. Power Switch Top Panel 1. AC input 2. 4 outlets with surge protec on 3. 4 outlets with ba ery back-up and surge protec on...
- Page 5 1. Inspec on Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If any damage is discovered, repack the unit and return it to the place of purchase. 2. Charging This unit is shipped from the factory with its internal ba ery fully charged, however, some charge may be lost during shipping and the ba ery should be recharged prior to use.
- Page 6 4.Connec on Plug the UPS into a 2-pole, 3-wire grounded receptacle. Then connect one computer-related device into each of the power receptacles supplied on the top of the UPS. 5. Turn On/Off To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again.
- Page 7 SPECIFICATION MODEL ORION 850 CAPACITY VA/W 850VA/480W Nominal Voltage 240VAC INPUT Voltage Range 177-290VAC Nominal Voltage 240VAC Voltage Regula on +/-10% (Ba . Mode) Frequency 50Hz or 60Hz OUTPUT Frequency Regula on +/-1 Hz (Ba . Mode) Output Waveform Stepped Sine wave...
