B02NU-AKSM Displayer Manual
1
20
/

Advertisement

Table of Contents
loading

Related Manuals for E-Bike B02NU

Summary of Contents for E-Bike B02NU

  • Page 1 B02NU-AKSM Displayer Manual...

  • Page 2: Table Of Contents

    Directory B02NU-AKSM DISPLAYER MANUAL....................1 .............................2 DIRECTORY I. P ........................3 RODUCT INTRODUCTION 1. Name...............3 2. Product model............3 3. Product appearance..........3 4. Product Specifications..........3 5. Lordinterface............4 6. Button definition..........5 7. General Operations..........6 II. I ....................8 NFORMATION VIEWING AND SETTING 1. Display settings...........8 2.

  • Page 3: Product Introduction

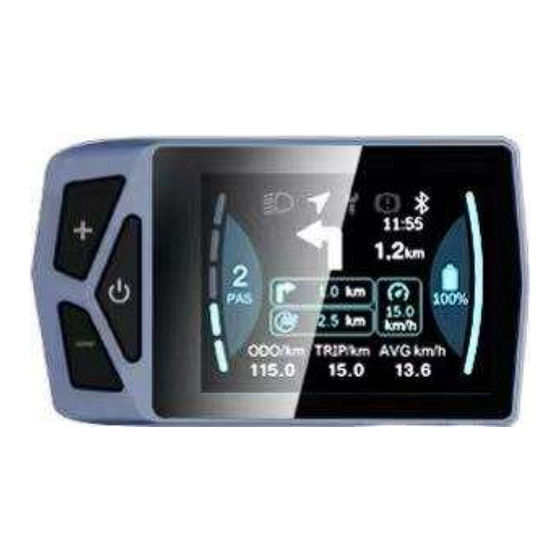

    I. Product introduction 1. Name Smart Displayer instrument. 2. Product model B02NU-AKSM 3. Product appearance...

  • Page 4: Product Specifications

    4. Product Specifications...

  • Page 5: Lordinterface

    5. Lordinterface Navigation Brake Maintenance indicator indicator tips Bluetooth Headlight indicator indicator Battery level graphic Gear indicator Real-time speed display ① Headlight indicator: The headlight indicator graphic will Total Single Average mileage mileage light up when the headlight is on ②...

  • Page 6: Button Definition

    +, minus -. The key definition is shown in the following figure: 7. General Operations B02NU-AKSM provides 4 themes and 3 languages users to set up, this manual uses Theme 1 (English version) as an example. "Press and hold the key >2.5 seconds" is replaced with "long press", "long key <0.5 seconds"...
  • Page 7 After entering the main display, click "+" or "-" to increase or decrease the gear level and change the motor output power, the default gear of the instrument is 0-5 (support customization); No power output in 0 gears 1 is the lowest power, and 5 is the highest power.

  • Page 8: Information Viewing And Setting

    II. Information viewing and setting 1. Display settings Click "" to enter the settings menu, use "+" or "-" to move the cursor up and down, select "Display Settings", "Information", "Language", Bluetooth", "Reset Factory Settings" and "Exit", "Theme", "Password", " and click "...
  • Page 9 auto-off time. ③ Mileage reset Go to the "ODO Reset menu and select "No"/"Yes". " It will be reset automatically when the mileage reaches the maximum (655km) (maximum varies by protocol), or go to the menu and select "Yes" to clear all mileage. The interface is shown in the following figure: On the main interface, press and hold the "+"...

  • Page 10: Information Viewing

    Note: This varies slightly from phone to phone. ⑥ Boot Gear gear number selection, default gears, at this time the instrument 0-5 gears are adjustable; When switching to 3 gears, the instrument 0-3 gears are adjustable; When switching to 9 gears, the instrument 0-9 gears are adjustable, as shown in the figure below 2.
  • Page 11 ③ Display Information – Go to the Display Information menu display software hardware version numbers (varies product). As shown in the following figure: ④ Error Code – Go Code menu to the Error , "E-CODE 0" refers to the 9" refers to the tenth error message. last error message, and "E-CODE Records can have up to 10.

  • Page 12: Language Selection

    ⑥ Electricity style: There is a percentage of actual voltage display, default percentage charge As shown in the following figure: 3. Language selection B02NU-AKSM is available in 8 languages for users to choose from. Go to Language" menu and select a different language switch. the "...

  • Page 13: Password Settings

    The interface is shown in the following figure: 5. Password settings ① Start password off/on. Enter the "Password" menu, select and enter Startup Password" (status is on/off) menu, and the interface the " prompts you to enter the password. At this time, use the "+" or "-" keys to switch the numbers "0-9"...

  • Page 14: Bluetooth Connection

    new password after modification Do not change the initial password arbitrarily. After modification, the interface will automatically jump to the original menu . As shown in the figure below: ③ Bluetooth unlock setting (turned off by default, needs to be turned on manually).
  • Page 15 Android SDK 9 and above Domestic: https://www.pgyer.com/LST2 Abroad: https://apkpure.com/cn/bikego/com.huiye.ebike IOS SDK 12 and above https://apps.apple.com/cn/app/bikego/id1615694432 The operation is as follows (using the iPhone as an example):...
  • Page 17 After Bluetooth of screen successfully connecting the the display , click O" on the main interface of the APP interface "G to enter the navigation to select the destination and when you start navigation, the display changes as follows (real-time navigation requires payment): The app is Navigation connected...
  • Page 18 Current hint and distance Next turn tips distances Real-time Mileage to speed destinatio Total Single mileage Average mileage Navigation indicator: The symbol lights up to indicate that it is in the navigation interface. Bluetooth indicator: The symbol lights up to indicate that the mobile app is now connected to the instrument.

  • Page 19: Factory Reset

    7. Factory reset Short press " " menu interface, click "" to enter the to enter the factory reset interface. Select confirm after a short press on " ", the instrument restarts and restores factory settings; Select cancel briefly press "...

  • Page 20: Error Code Comparison Table

    Error code comparison table Error code Description of the fault Troubleshooting methods "04" The speed control put has Check that the handle is no homing in place "05" Speed regulation put Check the handlebar failure "07" Overvoltage protection Check the battery voltage "08"...
