AutoVac VACUUM IQ VFD Series Quick Start Manual

Abb variable frequency drive
Hide thumbs

Advertisement

Quick Links

Download this manual
ABB Variable Frequency Drive
25/30HP X 3 460V
425-33072-ABB

Advertisement

loading
Need help?

Need help?

Do you have a question about the VACUUM IQ VFD Series and is the answer not in the manual?

Questions and answers

Related Manuals for AutoVac VACUUM IQ VFD Series

Summary of Contents for AutoVac VACUUM IQ VFD Series

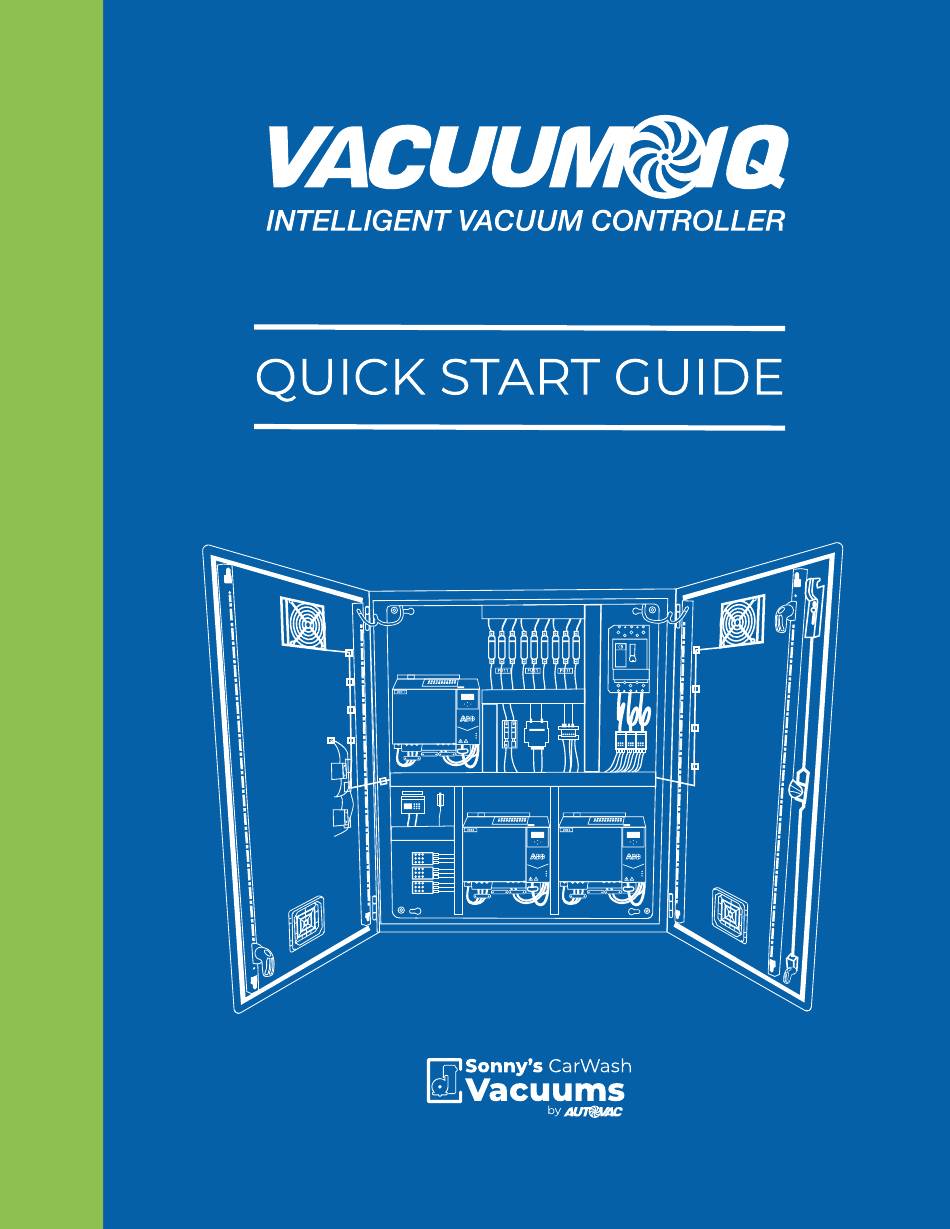

  • Page 1 ABB Variable Frequency Drive 25/30HP X 3 460V 425-33072-ABB...
  • Page 2 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V QUICK START GUIDE FOR VACUUM IQ USING THE ABB-ACS SERIES VFD OVERVIEW This guide is to assist in the start up of the ABB ACS series variable frequency drive. In Chapter 1: The installation of the Variable Fre- quency Drive will be covered.

  • Page 3: Installation And Wiring

    AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V CHAPTER 1 - INSTALLATION AND WIRING Installation • Please review and verify that the inverter was received free of damage and is the correct size for the motor being used.
  • Page 4 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V CHAPTER 2 - INPUT POWER, MOTOR AND PRESSURE TRANSDUCER CONNECTIONS. With power OFF, ensure the following mechanical and electrical conditions: • Rated output current of the VFD is equal or greater than the motor FLA.

  • Page 5: Other Equipment

    AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V NOTE For triple motor configuration, input power and transducer connections are the same. Motor connection terminals are labelled 1T1, 1T2 and 1T3 for the first motor. For second motor terminals are labelled 2T1, 2T2 and 2T3.

  • Page 6: Control Panel

    AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V CHAPTER 3 - CONTROL PANEL IMPORTANT NOTICE: The VFD already comes factory pre-programmed; the following instructions are ONLY for reference. Only a CERTIFIED TECHNICIAN can perform it. By default, ACS 380 has an integrated panel. If required, you can use external con- trol panels such as an assistant control panel or a basic panel.

  • Page 7: Options Menu

    AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Message view: Fault Fault messages require your immediate attention. Message view: Warning Warning messages show possible problems. Options menu and Main menu Options menu Main menu 1500 rpm To open: press the Back To open: press the OK 0.00...
  • Page 8 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Main menu The Main menu is a scroll menu. The menu icons represent specific groups. The groups have submenus. Note: You can define which Main menu items are visible. 1. Motor data - Motor parameters.
  • Page 9 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V 1. AsynM 2. PMSM 3. SynRM 1. Scalar 2. Vector 1. U V W 2. U W V 1. SI units 2. US units...
  • Page 10 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V 1. Start mode - Const time, Automatic 2. Stop mode - Coast, Ramp, DC hold 3. Acceleration time 4. Deceleration time 5. Maximum allowed speed 6. Maximum allowed current 7. Minimum allowed speed 1.
  • Page 11 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V 1. Saved energy in kWh 2. Saved money 3. Saved energy in MW 4. Saved money x 1000 5. Cost per KWh h 1. Complete parameter list - groups menu with complete parameters and parameter levels 2.
  • Page 12 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Programming the drive 1. Energize the drive. 2. Enter the Control macros view and select the applicable macro. For units with a fieldbus adapter connected: you can see the fieldbus in the Control macros view.
  • Page 13 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V 8. Set the acceleration time and the deceleration time. NOTE: The speed acceleration and deceleration ramp times are based on the value in parameter Name/Value Description Defines the maximum speed value used to define the acceleration ramp rate and the initial speed value used to define the deceleration ramp rate.
  • Page 14 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V CHAPTER 4 - AutoCad DRAWINGS TERMINAL CONNECTION Case 1 - Triple motor...
  • Page 15 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Transducer sensor wiring connections In this page, you can view the wiring connections for the four possible options of pressure transducer sensor. Please follow the pictures to ensure a proper connection.
  • Page 16 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Cordset Wiring Brand: IFM Connector A Part No.: PA3029 Circuit Diagram VFD TERMINAL Brown +24V White Blue N.C. Black N.C. Connector A Brand: LEFOO Part No.: LFT2010 Circuit Diagram VFD TERMINAL...

  • Page 17: Parameter Settings

    AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V CHAPTER 5 - PARAMETER SETTINGS IMPORTANT NOTICE: The VFD already comes factory pre-programmed; the following instructions are ONLY for reference. Only a CERTIFIED TECHNICIAN can perform it. Check motor direction Examine the actual direction of the motor: 1.
  • Page 18 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Change the rotation direction Loc Rem 1500 rpm 1. In the Options menu, move to the rotation direction item with the arrow buttons. 2. Press the OK button to change the Back rotation direction.
  • Page 19 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Open diagnostics 1. Select the Main menu from the Home view. 2. Scroll to Diagnostics and press the OK button to open the submenu. 3. Select the warning or fault with the arrow button and press the OK button.
  • Page 20 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V 5.1. - VFD Parameter Settings for Triple Motor Configuration VFD #1 Motor data 33.8 motor nominal current 3550 motor nhominal speed motor nominal power 0.89 motor nominal cos phi motor phase order Start/Stop/Direc�on...
  • Page 21 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Panel port communica�on Communica�on loss ac�on Speed reference selec�on Ext2 speed ref1 Fault func�ons Autoreset selec�on Number of trials Total trials �me Superivision Supervision 1 func�on Supervision 1 low Supervision 1 high Process PID set 1 Process PID opera�on mode...
  • Page 22 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Frequency reference chain Ext2 frequency ref1 Ext2 frequency ref2 Freq accelera�on �me 1 Freq decelera�on �me 1 Freq accelera�on �me 2 Freq decelera�on �me 2 VFD #2 Motor data Motor nominal current 33.8...
  • Page 23 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Limits Minimum frequency Speed reference ramp Accelera�on �me 1 Decelera�on �me 1 Panel port communica�on Communica�on loss ac�on Fault func�ons Autoreset selec�on Number of trials Total trials �me Frequency reference chain...
  • Page 24 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Process PID set 1 Set 1 feedback 1 source Set 1 feedback 2 source Set 1 setpoint 1 source Set 1 internal setpoint 1 Set 1 setpoint min Set 1 setpoint max Set 1 gain Set 1 integra�on �me...
  • Page 25 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V VFD #3 VFD #3 Motor data Motor nominal current 33.8 Motor nominal speed 3550 Motor nominal power Motor nominal cos φ 0.89 Motor phase order Start/Stop/Direc�on ext1 commands ext2 commands...
  • Page 26 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Fault func�ons Autoreset selec�on Number of trials Total trials �me Frequency reference chain Ext1 frequency ref1 Ext2 frequency ref1 Freq ramp set selec�on Freq accelera�on �me 1 Freq decelera�on �me 1 Freq accelera�on �me 2...
  • Page 27 AutoVac - ABB Variable Frequency Drive 25/30HP X 3 460V Energy eficiency Comparison power 22.38 Hourly total energy (rese�eable) 0.22 HW configura�on HW Op�ons word 1 Motor control IR comp max frecuency...
  • Page 28 ABB Variable Frequency Drive 25/30HP X 3 460V 425-33072-ABB...
