AutoVac VACUUM IQ C2000 Series Quick Start Manual

Delta variable frequency drive
Hide thumbs

Advertisement

Quick Links

Download this manual
DELTA Variable Frequency Drive
40HP X 1 460V
425-11082-DELTA

Advertisement

loading
Need help?

Need help?

Do you have a question about the VACUUM IQ C2000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AutoVac VACUUM IQ C2000 Series

Summary of Contents for AutoVac VACUUM IQ C2000 Series

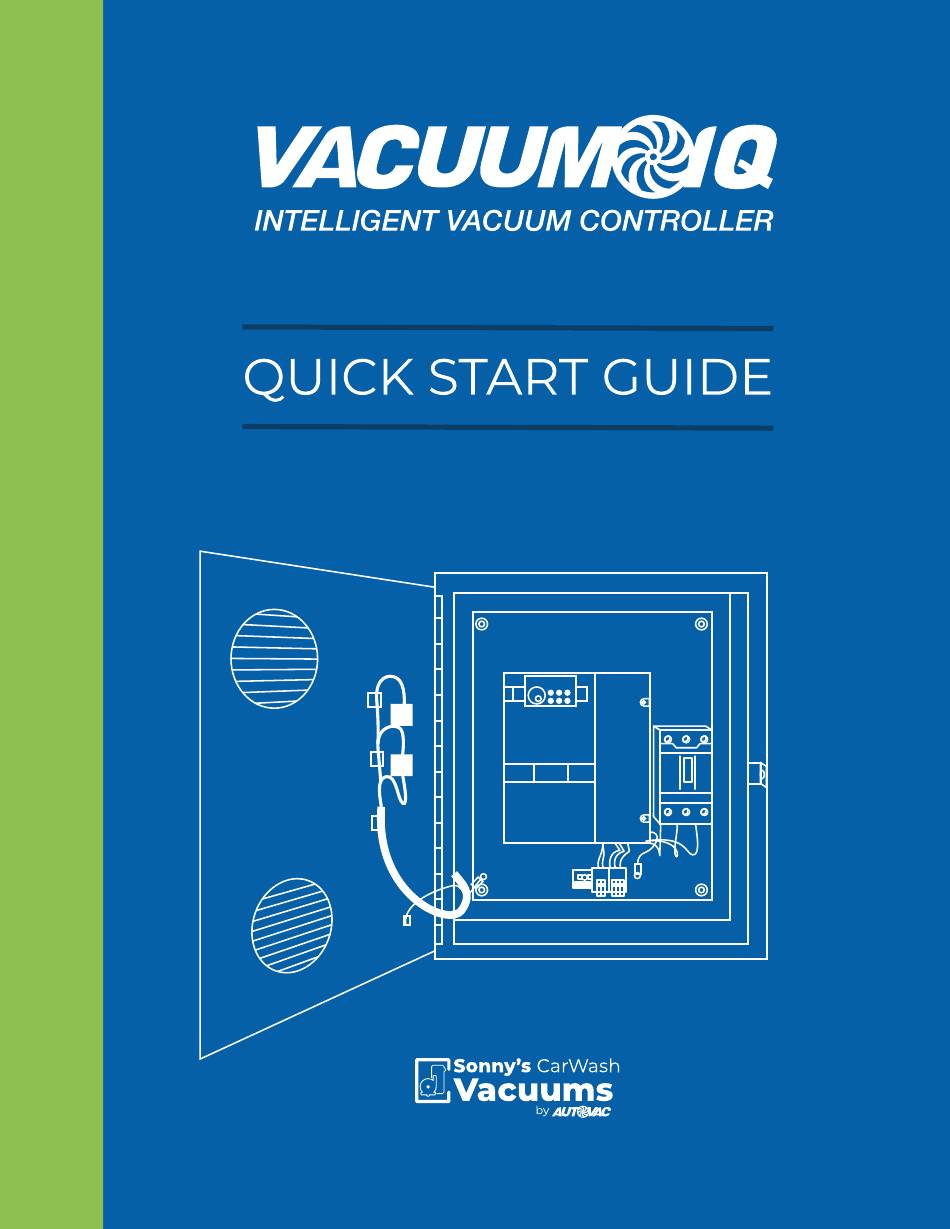

  • Page 1 DELTA Variable Frequency Drive 40HP X 1 460V 425-11082-DELTA...
  • Page 2 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V QUICK START GUIDE FOR VACUUM IQ USING THE C2000 SERIES VFD OVERVIEW This guide is to assist in the start up of the C2000 series variable frequency drives. In Chapter 1: The installation of the Variable Fre- quency Drive will be covered.

  • Page 3: Installation And Wiring

    AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V CHAPTER 1 - INSTALLATION AND WIRING Installation • Please review and verify that the inverter was received free of damage and is the correct size for the motor being used.
  • Page 4 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V CHAPTER 2 - INPUT POWER, MOTOR AND PRESSURE TRANSDUCER CONNECTIONS. With power OFF, ensure the following mechanical and electrical conditions: • Rated output current of the VFD is equal or greater than the motor FLA.

  • Page 5: Other Equipment

    AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V NOTE For single motor configuration, input power and transducer connections are the same. Motor connection terminals are labelled 1T1, 1T2 and 1T3. CAUTION To prevent an electric shock always ground the motor and VFD. Use indepen- dent grounding method for the VFD.
  • Page 6 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V CHAPTER 3 - VFD DISPLAY OPERATION VFD is supplied with KPC-CC01 keypad. Next chapter will explain basic KPC-CC01 operation. KPC-CC01 Communication Interface RJ45 (socket), RS-485 interface Installation Method 1. Embedded type and can be put flat on the surface of the control box.
  • Page 7 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V Descriptions ESC Key ESC Key function is to leave current menu and return to the last menu. It also functions as a return key or cancel key in the sub-menu.
  • Page 8 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V Descriptions of keypad Functions Descriptions Steady ON: operation indicator of the AC motor drive, including DC brake, zero speed, standby, restart after fault and speed search. Blinking: drive us decelerating to stop or in the status of base block.
  • Page 9 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V MENU 1: Parameter Setup 6: Fault Record 12: Display Setup MENU 2: Quick Start 7: Language Setup 13: Startup Menu 3: Application 8: Time Setup 14: Main Page 1: Pr Setup...
  • Page 10 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V 00-20 After pressing the ENTER key, a END will be displayed which means that Analog input the parameter setting is done. NOTE: When parameter 00-20 Pr. lock lock/password protection function is enabled, it will display “Pr.

  • Page 11: Time Setup

    AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V Time setup After setting up, press ENTER to confirm the setup. NOTE: Limitation: The charging process of the super capacitor will finish in about 6 minutes. When the digital keypad is removed, the time setting will be in stanby status for 7 days.
  • Page 12 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V CHAPTER 4 - AutoCad DRAWINGS TERMINAL CONNECTION Case 1 - Single motor...
  • Page 13 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V Transducer sensor wiring connections In this page you can view the wiring connections for the four possible options of pressure transducer sensor. Please follow the pictures to ensure a proper connection.
  • Page 14 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V Cordset Wiring Brand: IFM Connector A Part No.: PA3029 Circuit Diagram VFD TERMINAL Brown +10V White Blue N.C. Black N.C. Connector A Brand: LEFOO Part No.: LFT2010 Circuit Diagram VFD TERMINAL...
  • Page 15 AutoVac - DELTA Variable Frequency Drive 40HP X 1 460V CHAPTER 5 - VFD Parameter Settings The Variable Frequency Drives are shipped with the parameter values shown in Parameter Tables and no further programming should be necessary. However, if additional fine tuning is required please refer to Chapter 3, VFD Display Opera- tion.

  • Page 16: Delta Variable Frequency Drive

    DELTA Variable Frequency Drive 40HP X 1 460V 425-11082-DELTA...
