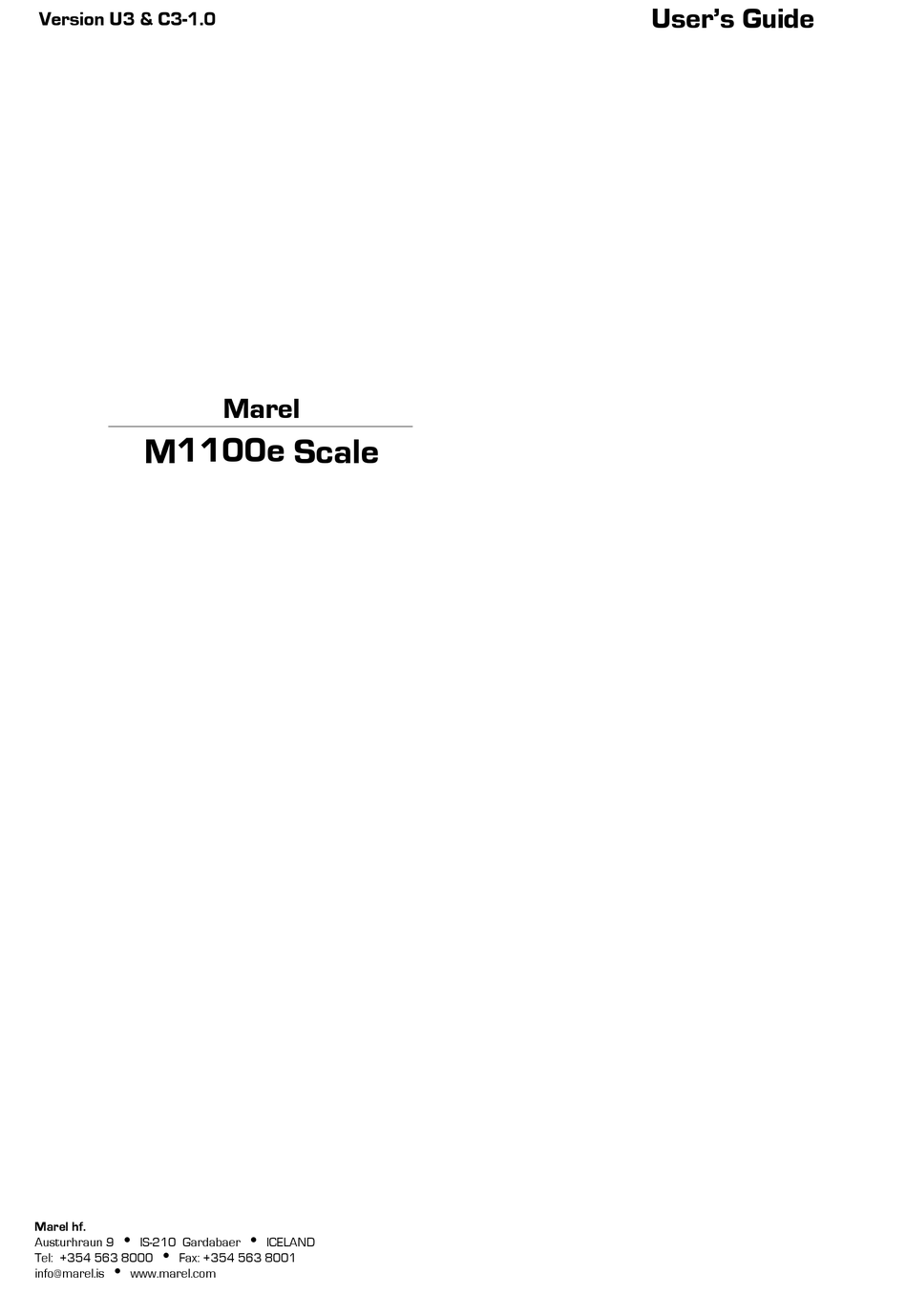

- Page 1 User’s Guide Version U3 & C3-1.0 Marel M 1100e Scale Marel hf. Austurhraun 9 i IS-210 Gardabaer i ICELAND Tel: +354 563 8000 i Fax: +354 563 8001 info@marel.is i www.marel.com...
- Page 2 Information in this document is subject to change without further notice, and does not represent a commitment by Marel hf. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying or otherwise, without the prior written permission of Marel hf.
- Page 3 The scale is a high-precision weighing instrument and is sensitive to shock. ATTENTION! Marel scales are Class I equipment and MUST have a protective earthing connection for safe operation. ONLY USE A EARTHED MAINS CONNECTION...
- Page 4 Marel hf.
-
Page 5: Table Of Contents
Contents Introduction ....................3 BOUT UIDE Conventions ........................ 4 Improvement Recommendations ................4 Warranty Information ....................4 The M1100e Scale ....................5 BOUT THE CALE ....................5 NITIAL NSPECTION ..................6 NSTALLING THE CALE ....................6 EFAULT ETTINGS ....................6 OMMUNICATION ......................7 LEANING ................9 NDICATORS AND ONTROLS Weight Display ...................... - Page 6 RROR CODES B ⎯ R ..26 PPENDIX ESPONSE IMES RANSMISSION ATES AND RINTOUTS Printouts ........................26 Response Times and Transmission Rates: ..............28 D ⎯ T ..........29 PPENDIX ECHNICAL PECIFICATIONS Glossary of Terms Index ii • Contents M1100e, U3 & C3-1.00...
-
Page 7: Introduction
Introduction About This Guide The M1100e Scale, User’s Guide contains operating instructions for the M1100e scale and describes in detail all basic functions the user should be familiar with. The M1100e Scale, User’s Guide is divided into four chapters: •... -
Page 8: Conventions
Marel hf., Austurhraun 9, IS-210 Gardabaer, Iceland; tel (+354)- 563-8000, fax (+354)-563-8001, attn. Service Center, email service@marel.com. Warranty Information Marel hf. will not warrant any equipment that has not been used according to specifications. 4 • Introduction M1100e, U3 & C3-1.00... -
Page 9: The M1100E Scale
See “Appendix D ⎯ Technical Specifications” on page 29 for more details on the different models. This user’s guide applies to the marine scale (M1100e-U3) and the land based scale (M1100e-C3). Except for the marine calibration procedure (see page 14), both types are operated in exactly the same way. -
Page 10: Installing The Scale
On scales with separate indicator and platform, make sure the cables between indicator and platform do not move during weighing. This ensures optimum performance. Default Settings On delivery the M1100e scale has the following default settings: • Zero tracking •... -
Page 11: Cleaning
The use of chlorine can cause rust spots to appear on the stainless steel. • Do not use high-pressure jets on the M1100e. Instead, use low water pressure or pour water over by hand. Detergents The acidity of detergents used on Marel equipment should preferably be pH 12-13. - Page 12 Training Staff It is important that new cleaning personnel receive proper training and are made aware of areas on the machinery which are difficult to clean. 8 • The M1100e Scale M1100e, U3 & C3-1.00...
-
Page 13: Indicators And Controls
Indicators and Controls Figure 1 M1100e Indicator, front view. Top cover Keyboard, arrow Rating plate Keyboard, MENU Max2/Power down indicator Keyboard, arrow DOWN Net indicator Keyboard, PRINT Weight Display Keyboard, ZERO Zero indicator Keyboard, TARE Steady indicator Cable entry (one or more) Unit of weight indicator RS232 &... -
Page 14: Weight Display
MENU Figure 7 key. MENU Note! Due to local restrictions in some market areas and limitations caused by scale capacity, all units may not be available. 10 • The M1100e Scale M1100e, U3 & C3-1.00... -
Page 15: Print Key
If automatic zero tracking is set (by activating a software switch, see p. 20), the scale will automatically track small variations in the zero point. The maximum tracking rate is 0.5 divisions per second. User’s Guide The M1100e Scale • 11... - Page 16 12 • The M1100e Scale M1100e, U3 & C3-1.00...
-
Page 17: Basic Operation
♦ Therefore, for initial start of the scale, simply plug the electrical cord into the nearest suitable power outlet. For a battery operated scale, attach the battery to the M1100e Indicator. After power has been applied, the software version and the status of the Cal/Con event counters appear briefly on the Weight Display and a light test of the display is run. -
Page 18: Marine Calibration
Marine Calibration The motion compensation of the M1100e marine scale must be calibrated every once in a while to ensure the weighing results are accurate and stable. IMPORTANT! For optimum marine calibration results, always calibrate the scale in the physical environment where it will be used for weighing, i.e. -
Page 19: Functions
Remove the reference weight from the platform. The Weight Display returns to zero and the scale is now ready for use. Functions The following sections are an overview of the basic M1100e functions the user should be familiar with: • the Tare function •... -
Page 20: Zero
Enable this option by turning on the application switch (see page 20). The scale will automatically record the last stable weight on the platform when you remove the weight from the platform. 16 • Basic Operation M1100e, U3 & C3-1.00... -
Page 21: Unit Of Weight
Unit of Weight The unit of weight in the M1100e is fixed at the time of the scale’s calibration setup. The unit of weight is displayed to the right on the Weight Display. IMPORTANT! Watch the Zero indicator when the scale is in use. The Zero indicator should light up when the platform is empty. - Page 22 18 • Basic Operation M1100e, U3 & C3-1.00...
-
Page 23: Advanced Functions
Advanced Functions Setup Mode The Setup Mode gives access to the more advanced functions of the M1100e scale, for example various service commands. To enter the Setup Mode ♦ Press the key and the simultaneously ZERO TARE A message, , prompting for a password (see “Password” on page... -
Page 24: Password
There On” ” are eight application switches available: • Zero tracking (see “Zero Key” on page 11) • Reserved for special functions • Automatic recording • Special record format • Response A 20 • Advanced Functions M1100e, U3 & C3-1.00... - Page 25 • Response B • Reserved for special functions Reserved for special functions • Special functions • Transmission A • Transmission B • Disable power-down mode, battery operated scales only • Special functions • Enable LED display on high power • Special functions When you have selected the command with the arrow keys, press...
- Page 26 M1100e: U3-3.10 / CAL=2 / CON=2 App: 1000 0000 0000 0000 Cap: 15.000 kg Res: Single 5 kg 601495 840888 Gain: 2.088615e-05 kg/cnt g-adj: 1.00000 Set: 0000 0000 0000 1000 10.0 10.0 22 • Advanced Functions M1100e, U3 & C3-1.00...
-
Page 27: Battery Operation
Battery Operation About the Battery The M1100e scale can be used with a 12 to 24V battery. When the battery power gets low, a blinking warning, , appears on the Display. The scale is still functional, until the power reaches its lowest operational point, which is when the scale will shut down. - Page 28 To bring the scale back from power down mode ♦ Press any key on the keyboard. The Max2 indicator in the bottom left corner of the M1100e Indicator blinks as long as the scale is in power save or power down mode.
-
Page 29: Appendices
E-92 Invalid marine calibration. Repeat calibration Calibration weight not detected E-93 Invalid initial zero Make sure the platform is empty Note: If the error persists contact Marel hf. or your local Marel agent for assistance. User’s Guide Appendices • 25... -
Page 30: Appendixb ⎯ Response Times , Transmission Rates And Printouts
The string will then be printed as: <STX>My Weight is: 10.00<CR>and serial is: 102192<CR><LF><ETX> If, however, application switch A04 is set to ON, but you do not specify the “PFORM=” setup, the format will be: <STX> 10.00<CR>102192<CR><LF><ETX> 26 • Appendices M1100e, U3 & C3-1.00... - Page 31 Available Formats in Special Printouts: The following string formats are available in the M1100e scale: Format: Description: \xxx 1, 2 or 3 digits decimal value of character to print (\2, \02 or \002 all will translate to <STX>) <BEL>, character 7 <BS>, backspace, character 8...
-
Page 32: Response Times And Transmission Rates
Gain: 2.088615e-05 kg/cnt g-adj: 1.00000 Set: 0000 0000 0000 1000 10.0 10.0 In some market areas switches #A5 and A6 may not be available. In such cases their function is selected during installation. 28 • Appendices M1100e, U3 & C3-1.00... -
Page 33: Appendixd ⎯ Technical Specifications
Appendix D ⎯ Technical Specifications Manufacturer: Marel hf. Indicator Type: M1100e-U3, marine scale; 3 defines the software application. M1100e-C3, land based scale; 3 defines the software application. Enclosure: Designed for washdown; AISI 316 stainless steel; degree of protection exceeds IP67. Accuracy Class:... - Page 34 Green ZERO light NET light Green STEADY light Power Requirements: 1. 110-230 VAC 0.16-0.1 A internal power supply 2. 12-24 VDC 0.1 Amax from car battery Capacity and Resolution: Ask for availability. Dimensions: Model xxxWx 30 • Appendices M1100e, U3 & C3-1.00...
-
Page 35: Glossary Of Terms
Used to revise the settings for the packing or grading memories. Indicator See M1100e Indicator. M1100e The Marel M1100e Scale, the marine or land based type. M1100e Indicator The display unit for the M1100e scale. The maximum value of a single range scale. - Page 36 Setup Mode commands Used to change the setup settings for the M1100e scale. Steady indicator On the M1100e Indicator. Lights up with a green light, when the weight on the platform is stable. Tare The weight of the container on the platform and the allowance made for the container when weighing.
-
Page 37: Index
5 Disinfectants 8 indicators and controls 9 Disposing of battery 23 initial start 13 Down arrow 9, 19 re-zeroing 17 M1100e installing 6 Max2 indicator 9, 10, 24 Enclosure 5 Menu key 9, 19 Enter key 9 Messages Entering password 20... - Page 38 20 using keys 19 Starting the scale 13 Steady indicator 9, 10 Switches application 20 Tare entering 15 Top cover 9 Transmission, continuous 20 Typographical conventions 4 Unit of weight indicator 9, 10 34 • Index M1100e, U2 & C2-3.3...
