Isy22
design by Matteo Thun e Antonio Rodriguez
Istruzioni per l'installazione della rubinetteria
I
Instructions for the installation of the faucets
GB
Instructions pour l'installation de la robinetterie
F
Montageanleitungen zur installation der armaturen
D
Instrucciones para la instalacion de la griferia
E
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
RU
Instrukcje instalacji armatury
PL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZUCCHETTI Isy22 ZIS532
Summary of Contents for ZUCCHETTI Isy22 ZIS532

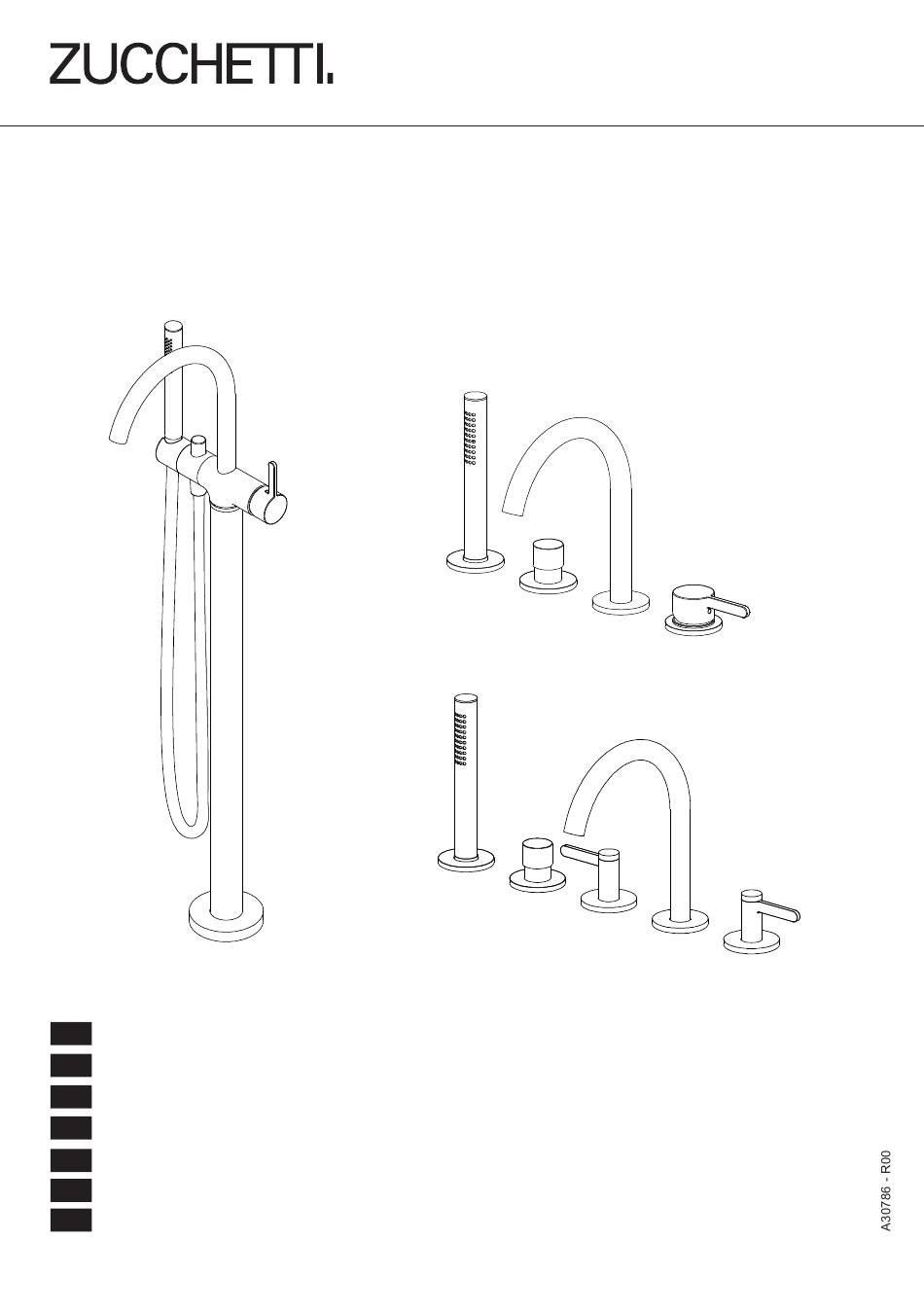

- Page 1 Isy22 design by Matteo Thun e Antonio Rodriguez Istruzioni per l’installazione della rubinetteria Instructions for the installation of the faucets Instructions pour l’installation de la robinetterie Montageanleitungen zur installation der armaturen Instrucciones para la instalacion de la griferia ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ Instrukcje instalacji armatury...
- Page 3 Index Isy22 collection ZIS532 ZIS512 ZIS3513 ZIS3533 ZIS4513-ZIS5513 ZIS4533-ZIS5533 ZIS6513 ZIS6533 ZIS748...
-
Page 4: Installazione - Installation
Installazione - Installation ZIS532-ZIS512 Utensili necessari - Necessary tools TEFLON CH.35 CH.2 Ø 48/50 Ø 24/25 Ø 48/50 Ø 34/35 DEVIATORE DIVERTER 100 100 100... - Page 5 CH.2 CH.25 FILETTO SINISTRO TAPPO/ LEFT THREAD PLUG TEFLON...
- Page 6 CH.35...
-
Page 7: Water Inlet
TAPPO/ PLUG WATER INLET... - Page 8 Installazione - Installation ZIS3513-ZIS3533-ZIS4513-ZIS5513-ZIS6513-ZIS4533-ZIS5533-ZIS6533 Utensili necessari - Necessary tools TEFLON CH.42 CH.35 CH.2 Ø 30/32 Ø 24/25 Ø 30/32 Ø 48/50 Ø 34/35 DEVIATORE DIVERTER 100 100 100...
- Page 9 CH.35...
- Page 10 FILETTO SINISTRO LEFT THREAD CH.35...
- Page 11 WATER INLET...
- Page 12 Installazione - Installation ZIS748 Utensili necessari - Necessary tools CH.2,5 CH.5 CH.13 CH.4 CH.5 CH.13 R99676 NOT INCLUDED CH.13...
- Page 13 CH.4 CH.5 CH.4 Ø 100 mm...
- Page 14 CH.13 CH. 2,5 CH. 2...
- Page 15 60°...
- Page 16 Sostituzione cartuccia - Cartridge replacement ZIS532-ZIS512-ZIS748 CH.2 CH.29 Coppia di serraggio Tightening torque 12 Nm...
- Page 17 можете воспользоваться чистящим средством ZETABRILL. product ZETABRILL. CZYSZCZENIE NETTOYAGE Do czyszczenia wszystkich produktów Zucchetti, zarówno Pour nettoyer toute notre robinetterie dans les versions chromées, chromowanych, złoconych, malowanych, jak i w innych, specjalnych dorées, colorées ou finitions particulières, il est recommandé d’éviter wykończeniach, absolutnie nie wolno stosować...
-
Page 18: Условия Эксплуатации
Pressure difference between hot /cold water: 1 bar max. Maximum temperature: 80°C Recommended temperat.: 60-65°C Zucchetti taps can be used with electric storage water heathers and instant gas types, centralised system, combi wall-mounted gas boilers and district heating systems. Before connecting the taps we recommend draining the system thoroughly; it is also advisable to install under basin stop valves with filter (art. - Page 20 Zucchetti Rubinetteria S.p.A. Via Molini di Resiga, 29 - 28024 Gozzano (No) - Italy - Tel. +39 0322 954700 - Fax +39 0322 954823 - www.zucchettikos.it...
