Summary of Contents for RUiXU RX-GC4830

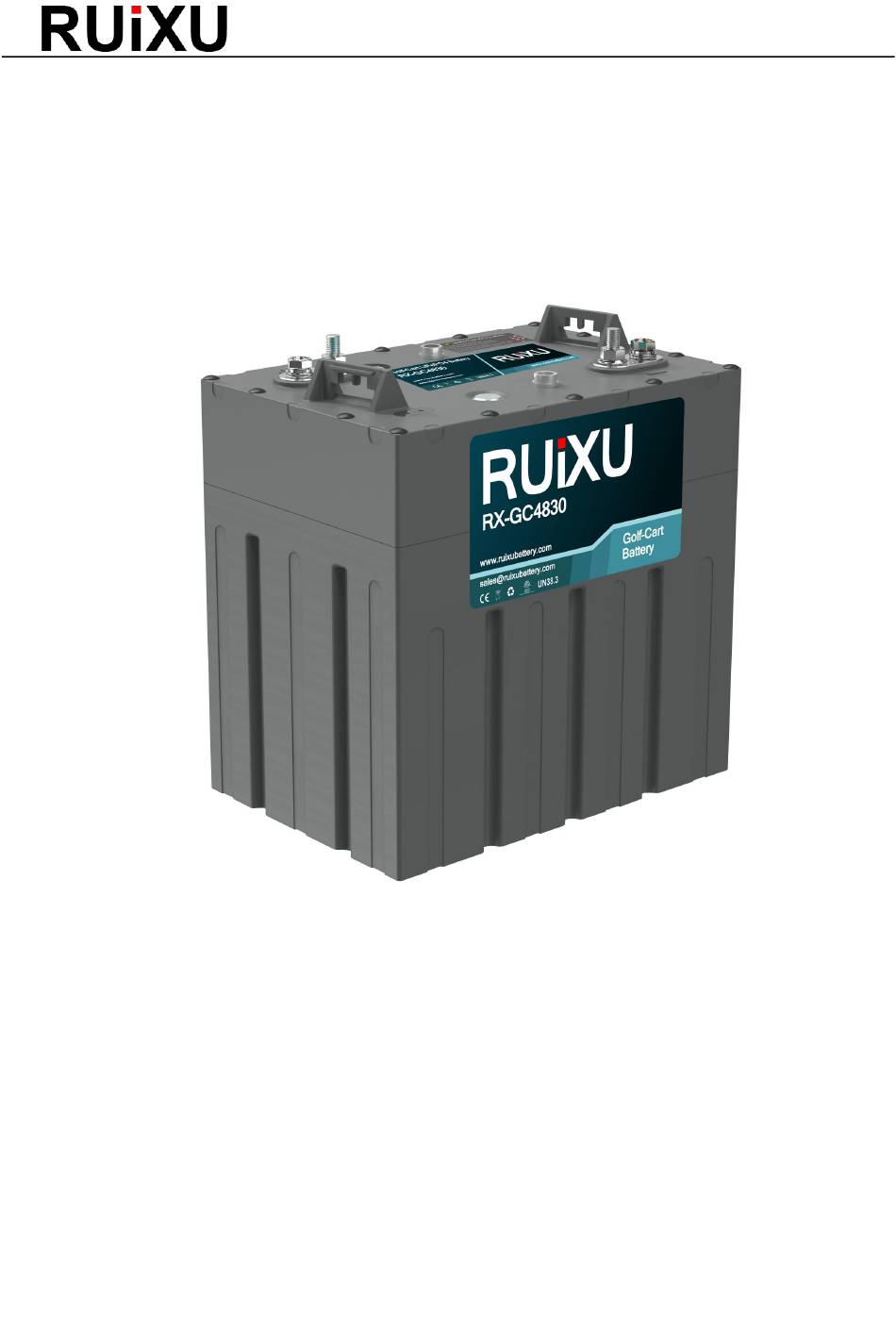

- Page 1 RX-GC4830 User Manual...
-
Page 2: Table Of Contents
1.2 Standard ............................1 1.3 Important safety information ....................1 1.4 Battery Maintenance ........................2 1.5 Waste Treatment ......................... 2 2. Introduction to the RUiXU series battery ..............2 2.1.Key Features ..........................2 2.2.Product Appearance ........................3 2.3 Functional characteristics ......................3 3. - Page 3 4.2Charging with Solar ........................8 4.3Charging with an Alternator via a DC-DC Charger ...............8 4.4 Recommended charging voltage ....................8 4.5 Equilibrium .............................8 5 Battery Recyclable ......................8...
-
Page 4: Safety
1. Safety 1.1 Instruction Please read the user manual carefully before installation, operation and maintenance, and pay attention to various warning boards and warning statements on the equipment. Please keep it for future reference after reading the user manual, 1.2 Standard The following marks are used in the user manual to indicate where the special attention should be paid during operation. -
Page 5: Battery Maintenance
Please dispose the package and replaced parts according to the rules applicable in the country where the device is installed. Do not dispose the battery with normal domestic waste. 2. Introduction to the RUiXU series battery 2.1.Key Features • a、LiFePO4 composition – provides exceptional safety and longevity •... -
Page 6: Product Appearance
better manage the battery. 2.2.Product Appearance ② ③ Positive and negative terminals ① Explosion proof valve Communication port1 Communication port2 Swith ⑥ ① ④ ⑤ Fig1 Outline drawing 2.3 Functional characteristics Item Specification Item Specification Rated voltage 51.2V Size 260*180*272mm Rated capacity Communication 30AH... - Page 7 2.3.1 First use ① When the battery leaves the factory, the button switch will be turned off and in the off state, ② Before the battery is used, the switch needs to be closed to the on state, and the LED indicator lights ③...
-
Page 8: Installation
2.3.4 ON or OFF RUiXU RX-GC4830 has the switch function. When the battery is transported or stored for a long time, it can be turned off. This is a very low power consumption, ensuring that the battery can be stored for a long time. - Page 9 be products of the same model and batch B. Ensure the length of all parallel wires is consistent; C. We suggest using 0.5C for charging, that is, charging current=battery rated capacity * 0.5C D. When the battery packs are used in parallel, the open circuit voltage of each group of batteries must be highly consistent.
-
Page 10: Connection Mode Of Battery Communication Port
In this way, the battery can communicate with the load or charger to make more efficient use of GC2 battery. This is also conducive to RUiXU's customer service to better understand the battery failure. If you have more questions about the CAN bus, please contact RUiXU's engineers for technical support. - Page 11 However, it must be set to charge no higher than58.4V and then MUST be switched off once the RUiXU series battery is fully charged. DO NOT leave a solar regulator switched on without a suitable lithium charge setting once the battery is fully charged.
