Summary of Contents for ZION CARBON

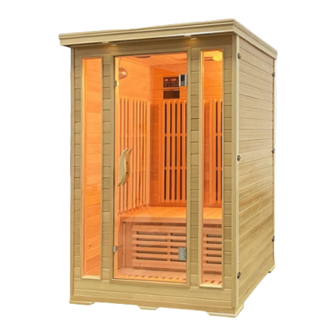

  • Page 2 PARTS DESCRIPTION HEAD PILLOW BLUETOOTH SPEAKER DIGITAL LED LIGHT CONTROL PANEL CARBON PANEL S HANDLE DOUBLE HEMLOCK TEMPERED GLASS DOOR COLOR Maple Wood and Glass VOLTAGE 220 V NW/GW 453 kg MEAS 120 X 105 X 190 CM...

  • Page 3: Safety Instructions

    While in the sauna, do not touch the light bulb. If the bulb needs to be changed, switch it off and wait until the sauna is shut off and the bulb is cool. d. Do not spray waler on the Carbon tube. This activity may result in electro shock or damage to the heater elements.
  • Page 4 SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for the electric current to reduce the risk of electric shock. This product is equipped with a cord with an equipment-grounding conductor and a grounding plug.
  • Page 5 SAFETY INSTRUCTIONS OPERATING SURROUNDINGS a. Only plug the ZION Sauna into a 220volt-wall outlet. Do not share the outlet with any other appliances. Plug the unit into the outlet and use the ON/OFF switch to activate the sauna. Sauna should be unplugged when not in use.
  • Page 6 SAFETY INSTRUCTIONS For safety reasons and in order to clearly indicate potential dangers should the product be used improperly, instructions have been marked in the following manners and should be strictly noted. CAUTIONS Non-professional technicians are not allowed to dismantle or repair the sauna to avoid fire, electrical shock or serious harm.
  • Page 7 SAFETY INSTRUCTIONS PRECAUTIONS Check all the circuitry and the plug meet all requirements. Set the temperature and time to a comfortable level. Drink a cup of water before the sauna session. After 2 hours of continuous use, shut the sauna down for one hour.
  • Page 8 INSTALLATION GUIDE INSTALLATION PROCEDURE 1. Structure of Carbon Sauna. See FIG-1 1. right side board 7. left side board 2. digital panel 8. back board 3. front board 9. internal top board 4. bottom board 10.external top board 5. sitting baffle 11.
  • Page 9 Check the C/NO. On both cartons if they are the same. If not, please notify the store website you purchased your ZION Sauna Carbon Sauna. For example, C/NO: 002 1 OF 3 and C/NO: 002 2 OF 3 are for one unit. See FIG-2.1 3.
  • Page 10 INSTALLATION GUIDE 5. Align the backboard (section 8) with bottom board's corresponding battens; make sure they are in line. See FIG-4 6. Align the right board (section 7) with bottom board's corresponding battens; make sure right board fits flush into backboard. See FIG-4 FIG-5 (Combination to assembly) Buckle 7.
  • Page 11 INSTALLATION GUIDE FIGURE 6. ASSEMBLING BENCH FIGURE 7. CONNECTING WIRE CHAIR BRACKET FIGURE 8. ASSEMBLING SITTING FIGURE 9. ASSEMBLING LEFT BOARD BOARD 10. Align the left board (section 1) with bottom board's corresponding battens; make sure left board fits flush into backboard and latch together. See FIG-9...
  • Page 12 INSTALLATION GUIDE FIGURE 10. ASSEMBLING FRONT BOARD 11. Align the front board (section 3) with bottom board's corresponding battens, and then latch it with the left and right boards respectively. Notes: Take caution of the glass door to avoid damage. See FIG-10. FIGURE 10.
  • Page 13 All these wires will be led into connecting with the controller on the internal top board, See FIG-12 14. All the Carbon heaters are pre-assembled. Connect all the wires and connectors to the corresponding outlets on the top board, Please be sure all the plugs are connected tightly in case of outlet damaqe.
  • Page 14 INSTALLATION GUIDE FIGURE 15. SLIP THE POWER PLUG FIGURE 16. FIX THE EXTERNAL THROUGH EXTERNAL TOP BOARD BOARD WITH SCREWS FIGURE 17 INSTALLING THE DOOR HANDLE 18. Take the screws affixed on the external top board, then set up the board using the cross screwdriver 19.

  • Page 15: Controller Panel

    CONTROLLER PANEL TIMER HEAT TOUCH KEY POWER BUTTON Bluetooth & Music Function The Bluetooth speaker will be automatically on when the massage chair is turned on. Search and connect your mobile phone Bluetooth device into the massage chair Bluetooth device named "...

  • Page 16: How To Use

    HOW TO USE 1. Turning On the Sauna Carbon Make sure that the sauna is plug in. ON-plug into electricity, the power indicator is flashing, and Press power button and it will turn on immediately. A Warning: Do not insert or pull out the power plug with wet hands, otherwise an electric shock would happen.
  • Page 17 HOW TO USE 4. Fahrenheit / Celsius Setting When setting the temperature, please press the press up button down button once at the same time to achieve F/C switch 5. Reading Lighting control in the normal working state ‚Press light button once, the reading light is lighting, press it again ,the light is off.
  • Page 18 HOW TO USE 9. Bluetooth Press the button 3 times, then the screen will display "B-" After hearing the sound, the next step is to find the Bluetooth name to connect with your mobile phone. After the connection is successful, the music in the mobile phone can be played. Press key to pause and play the Bluetooth;...

  • Page 19: Daily Care And Maintenance

    DAILY CARE AND MAINTENANCE After using the sauna, please turn off the power switch, and pull the power cord plug out from the power socket WARNING Supervision and guidance is mandatory for those disabled mentally and physically. Please advise with your doctor before using the sauna if you have ANY medical conditions. Children under 18 should not use sauna and consult with a doctor for approval if attempted.
