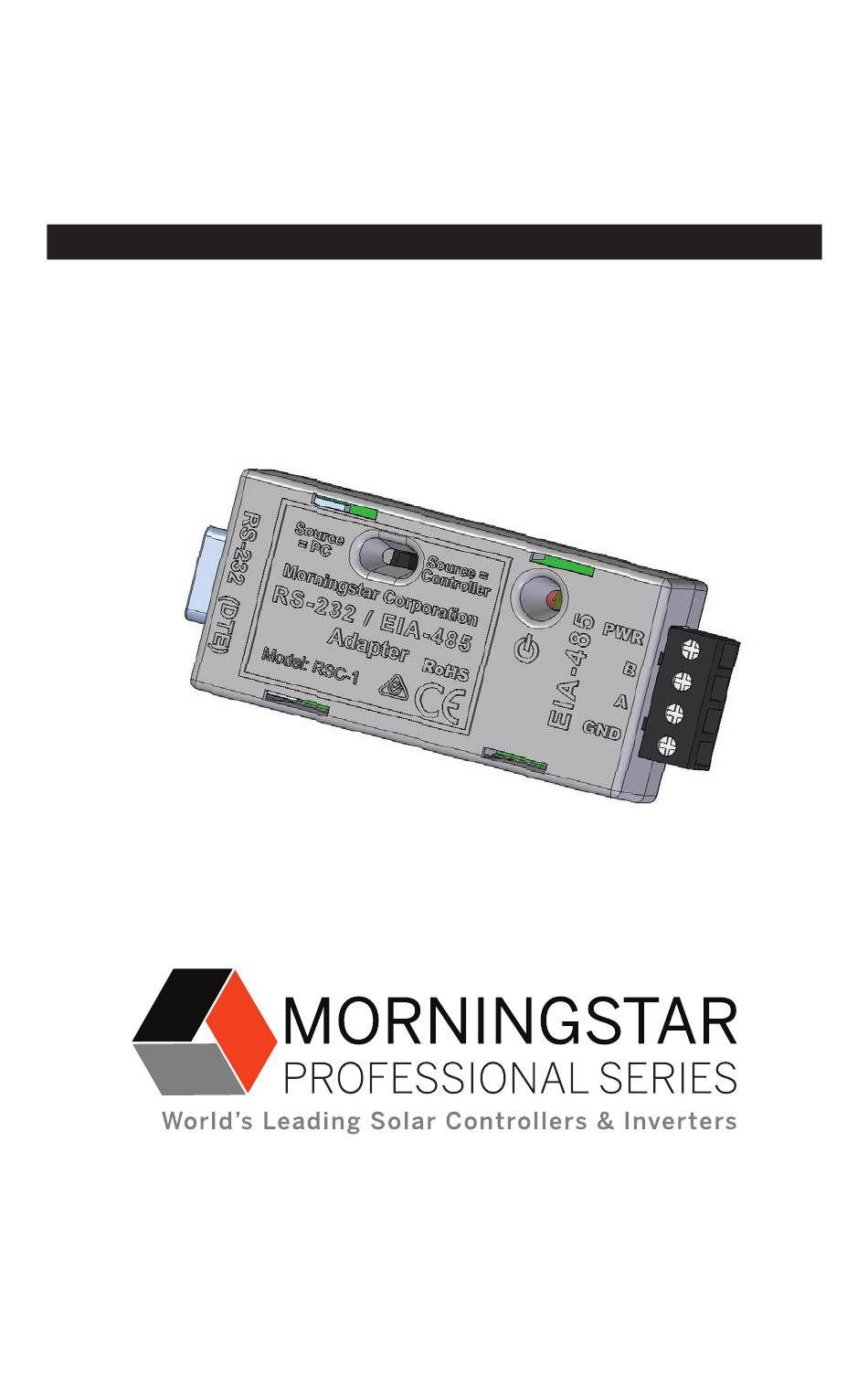

- Page 1 RSC-1 RS-232 to EIA-485 Communications Adapter Installation and Operation Manual www.morningstarcorp.com...
- Page 2 4 - Molded tabs for attachment to 35 mm standard DIN rail Weight 37 g (1.3 oz) 5 - Removable four (4) position EIA-485 terminal DIN Rail Compatibility 35 mm (1-3/8”) Certifications CE, RoHS Warranty 5 years RS-232 / EIA-485 Communications Adapter Morningstar Corporation...
- Page 3 RSC-1 adapters are daisy-chained together as shown in Figure impedance of the communication cable is Zo, then: 4. Twisted pair communication cable is highly recommended to maintain data integrity. R1 = R2 = Zo Check the communication cable specifications for the characteristic impedance. The typical characteristic impedance of select cables are shown in Table 1, below. RS-232 / EIA-485 Communications Adapter Morningstar Corporation...
- Page 4 Table 1. Characteristic impedances of select communication cables. • A MeterBus to Serial Converter (model: MSC) can be used to communicate with Morningstar products that do not Step 3 - Serial RS-232 Connections have a serial port. See MSC documentation for supported Connect a Morningstar controller, inverter, or accessory to the products.
- Page 5 Green data on network for transmit / receive Integrated Series products, SureSine Family (Gen 2) inverters Green / Data on network Network OK and other Morningstar Professional Series products, except the Red Flicker SureSine -300 Classic (Gen 1) inverter, are warrantied to be free Reversed A & B Check network from defects in materials and workmanship for a period of FIVE (5)
- Page 6 Morningstar distributor or dealer for assistance with troubleshooting and, if necessary, obtaining an RMA number. An RMA number must be issued by Morningstar prior to return of any unit(s) under this warranty. Required RMA information: (A) purchase location - business or company name - and date (B) full model and serial numbers (SN is 8-digits on unit bar label)
