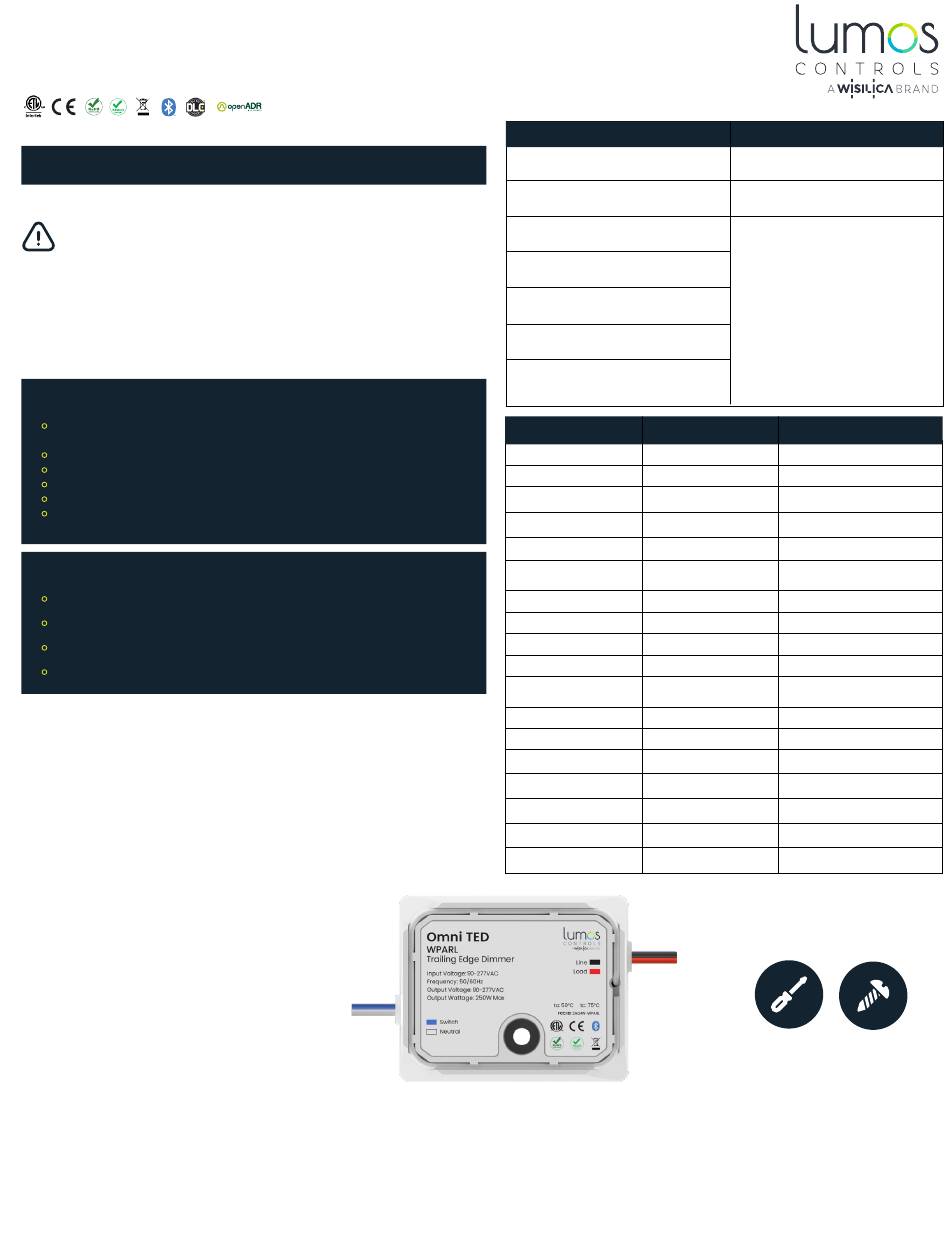

WiSilica Lumos Controls Omni TED WPARL Quick Start Sheet

Omni TED
Trailing Edge Dimmer
INSTALLATION AND QUICK START SHEET

WARNING AND GUIDELINES!!!

Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so
that no parts should have been damaged during transit. Inspect to confirm. Any
part damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING - Risk of Electric Shock
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped

PRODUCT OVERVIEW

Omni TED is a BLE5.2 controllable, trailing edge dimmer.
It operates on 90-277VAC input voltage range and can
work with single LED loads of up to 250W and has
output to connect a switch.
The device is a part of the Lumos Controls ecosystem,
including controllers, sensors, switches, modules,
drivers, gateways, and analytical dashboards. It can be
easily commissioned, configured and controlled from
any mobile device and can be connected to Lumos
Controls cloud for data analytics and configuration
management. The ecosystem is listed by the Design
LightsConsortium (DLC), qualifying it for energy
conservation incentive programs and rebates by utility
companies.

INSTALLATION INSTRUCTIONS

1. Turn OFF the power before wiring and installing the device.
2. The phase dimmer with a compact formfactor can be installed anywhere within the light fixtures, or within junction boxes. The screw hole available on the phase
dimmer can be used to fix it firmly.
3. To power the phase dimmer, connect the AC line and neutral wires from the mains supply to the line (black), and neutral (white) of the device.
4. To control TRIAC drivers, connect the load (red) ,and neutral(white) wires of the phase dimmer to the line and neutral of the driver.
5. Connect the switch (blue), and Neutral (white) to a push button switch to the control the dimming and ON/OFF of the connected load.
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Turn the power OFF at circuit breakers
before wiring
Observe the correct polarity of output
terminal
Place devices as far away as possible
from metallic materials
Devices work best in when there is a
clear LOS between them
When placing devices inside metallic
boxes, please ensure the antenna
comes out of the boxes

Specifications

Value
Input voltage
90-277VAC
Supply frequency 50-60Hz
Inrush current protection 75A
Surge transient protection 4kV
Dimming operation mode Trailing edge
Max output power
250W
Min power requirement
None
Frequency range 2402-2483MHz
Tx power 8dBm
Rx sensitivity
-95dBm
Connection distance
45m(147.6ft)
(Device to device by mesh)
Operating temperature
-20 to 50°C(-4 to 122°F)
Storage temperature
-40 to 80 ºC (-40 to 176°F)
Relative humidity
85%
43 x 35 x 20mm
Dimensions
(1.69 x 1.38 x 0.79 in)
120g(4.23oz)
Weight
Case material ABS Plastic
UL 94 V-0
Flammability rating
Don'ts
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't dissemble the products
Remarks
Rated Input voltage
_
_
L-N, Bi wave
_
250W @277VAC;
125W @90VAC
Active power
_
With 150mm external wire antenna
_
In an open office
environment (Line of Sight)
_
_
_
_
L x W x H
_
_
REQUIRED TOOLS &
SUPPLIES
Screwdriver Screws
